Temperature Sensor (Gauge): Locations

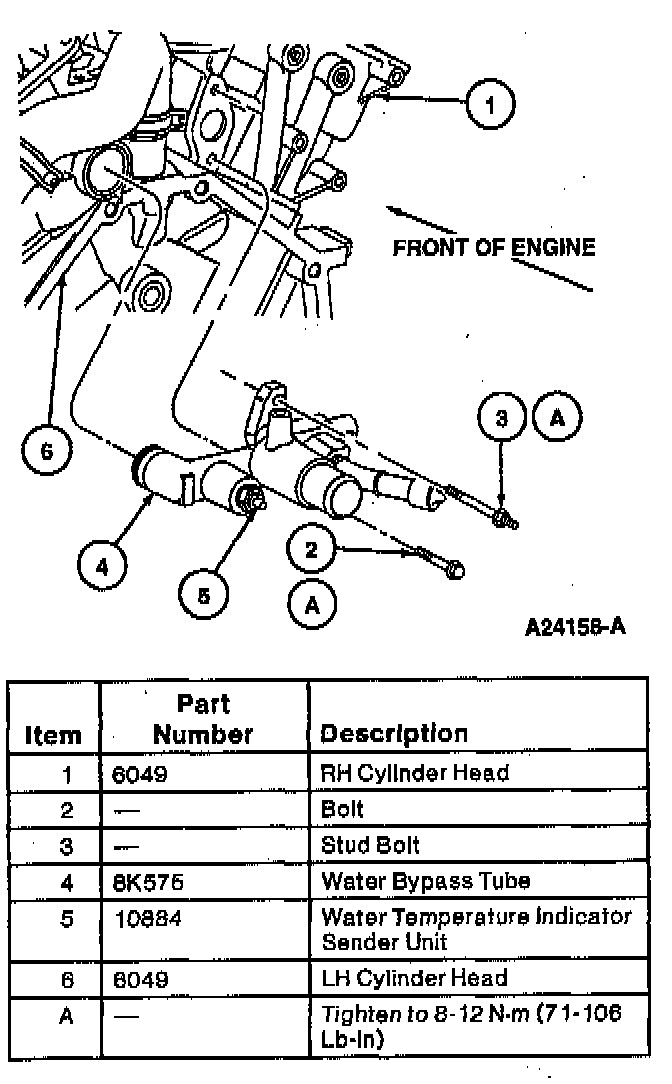

The water temperature sender unit is mounted into the thermostat housing bypass tube.
