Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1998 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1681: Transceiver Defective or Not Connected

B1681: Transceiver Defective or Not Connected

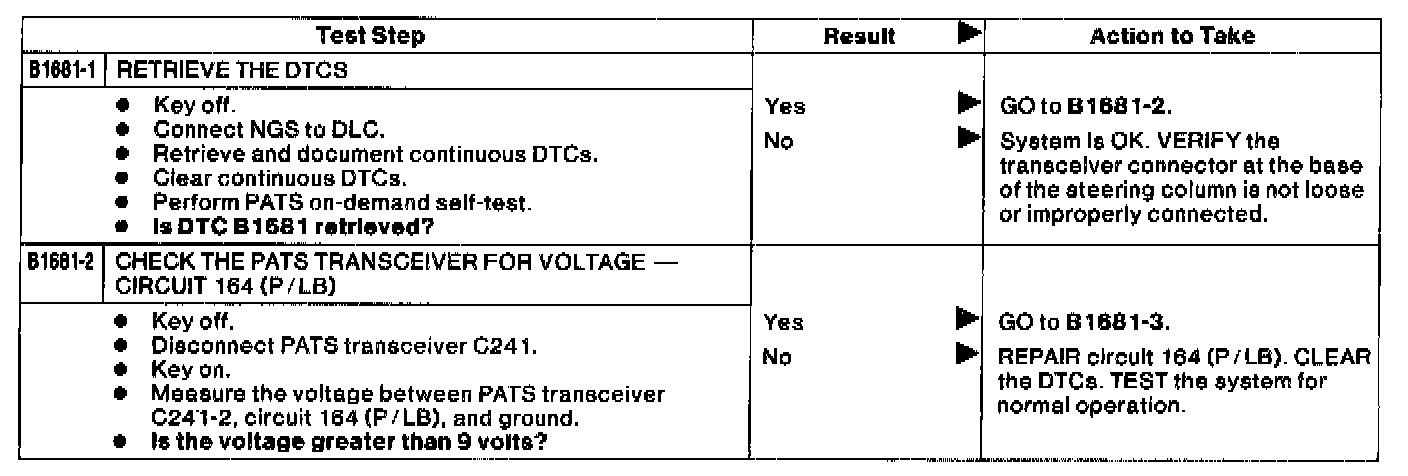

B1681-1 - B1681-2:

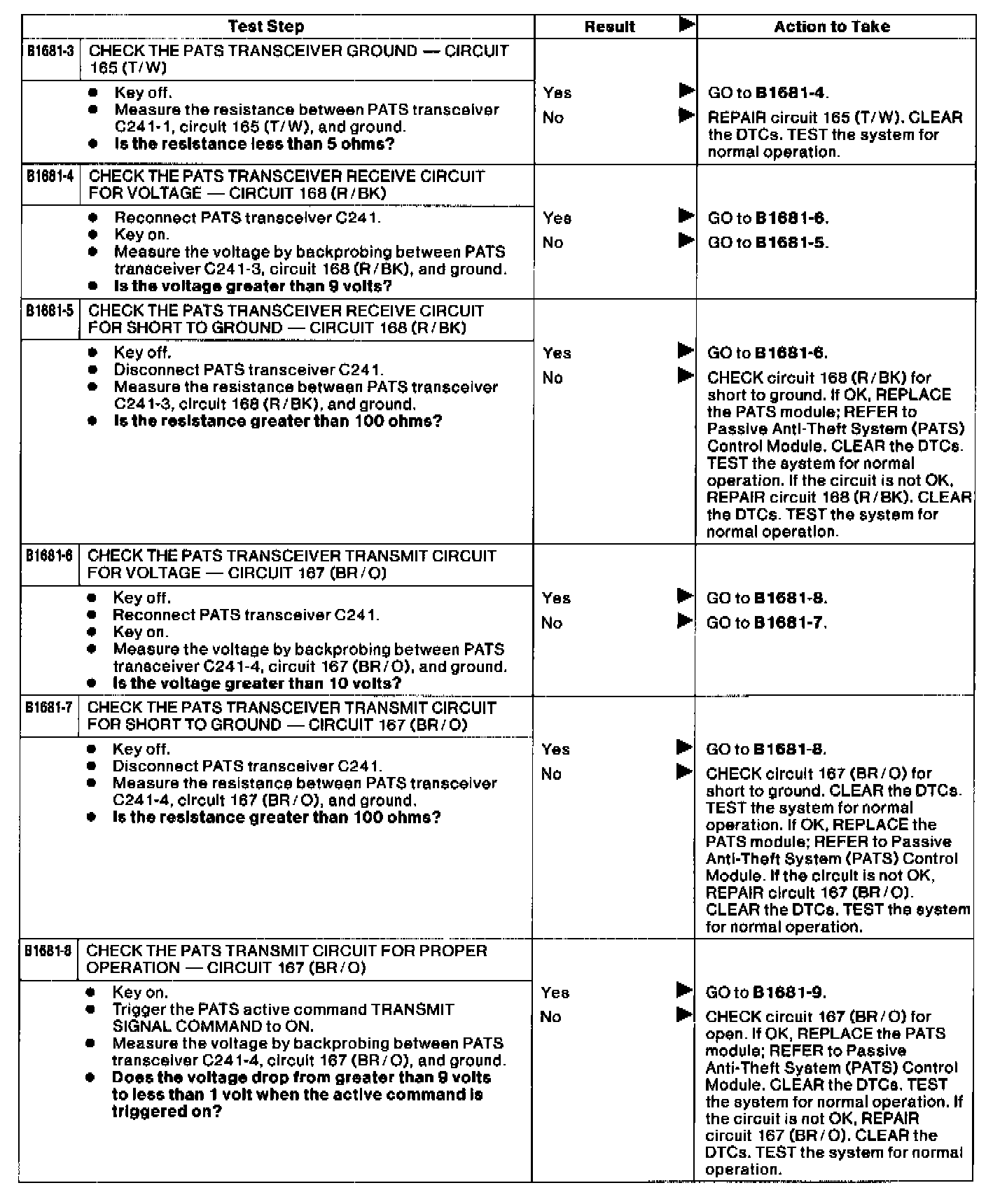

B1681-3 - B1681-8:

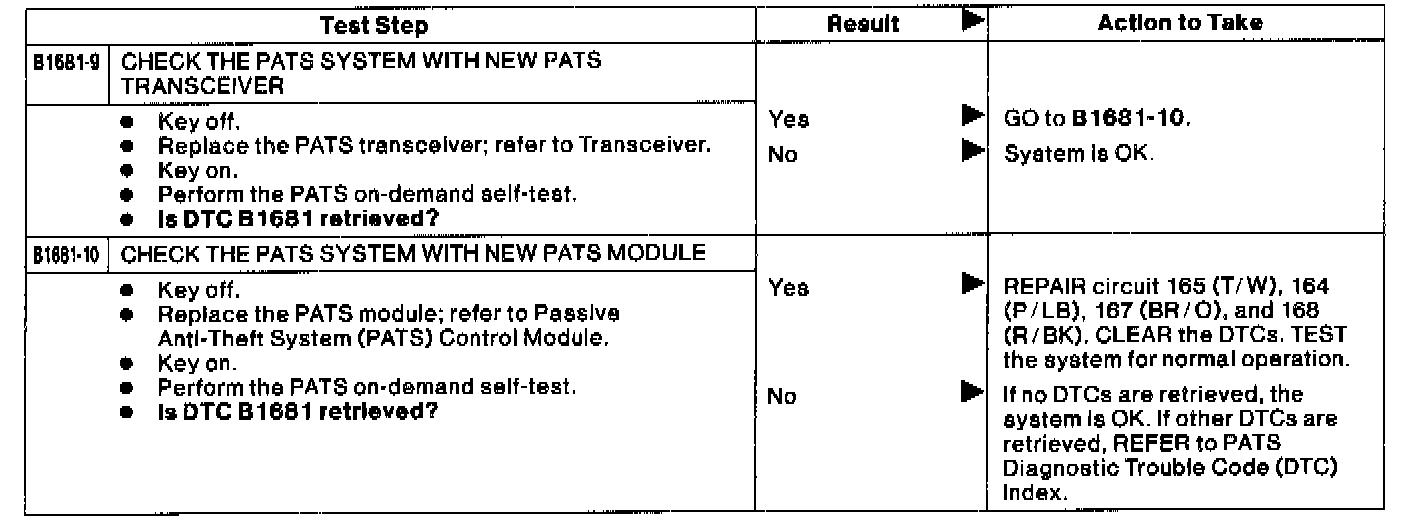

B1681-9 - B1681-10:
