Taurus V6-182 3.0L VIN 1 FI Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

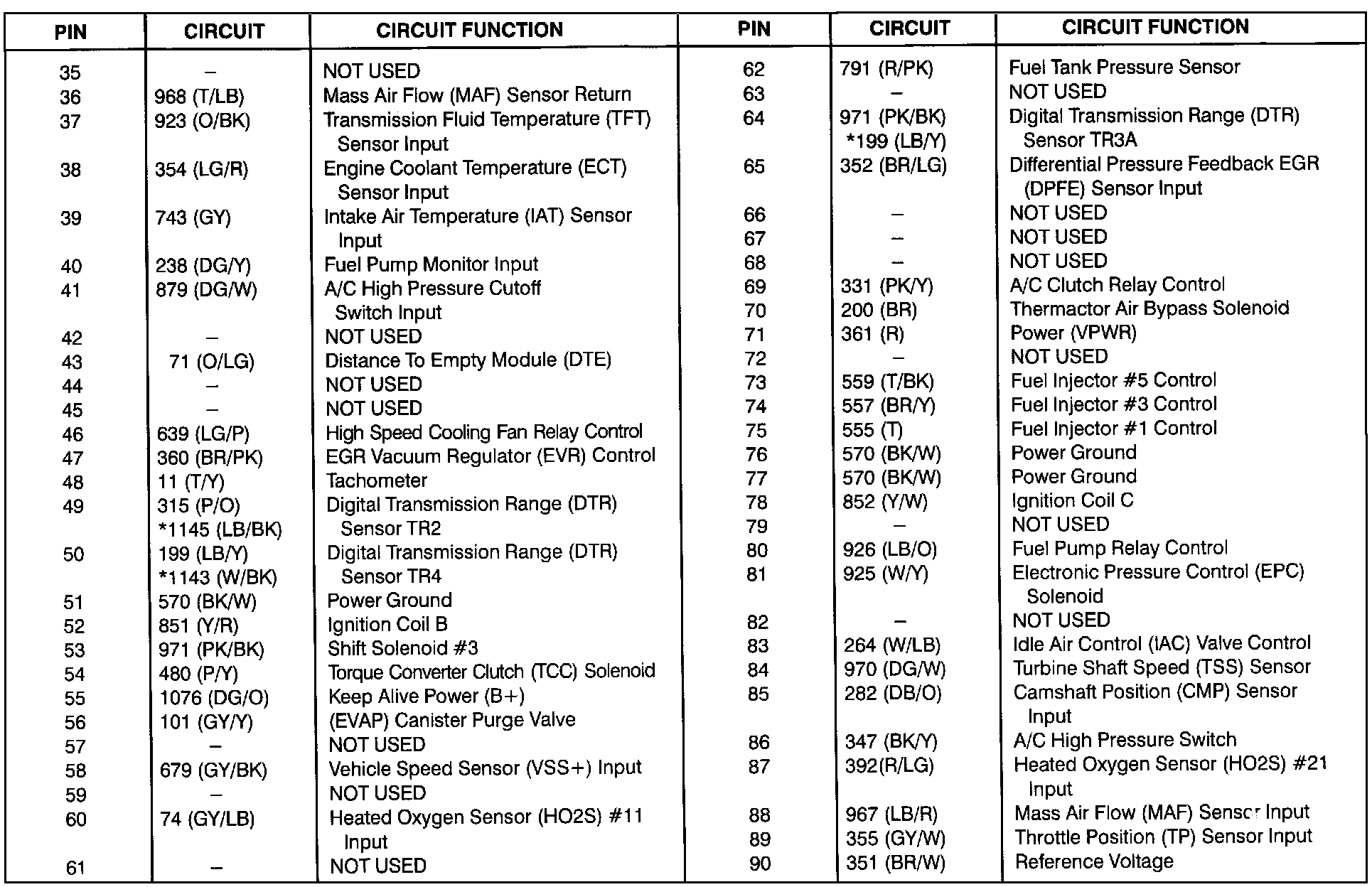

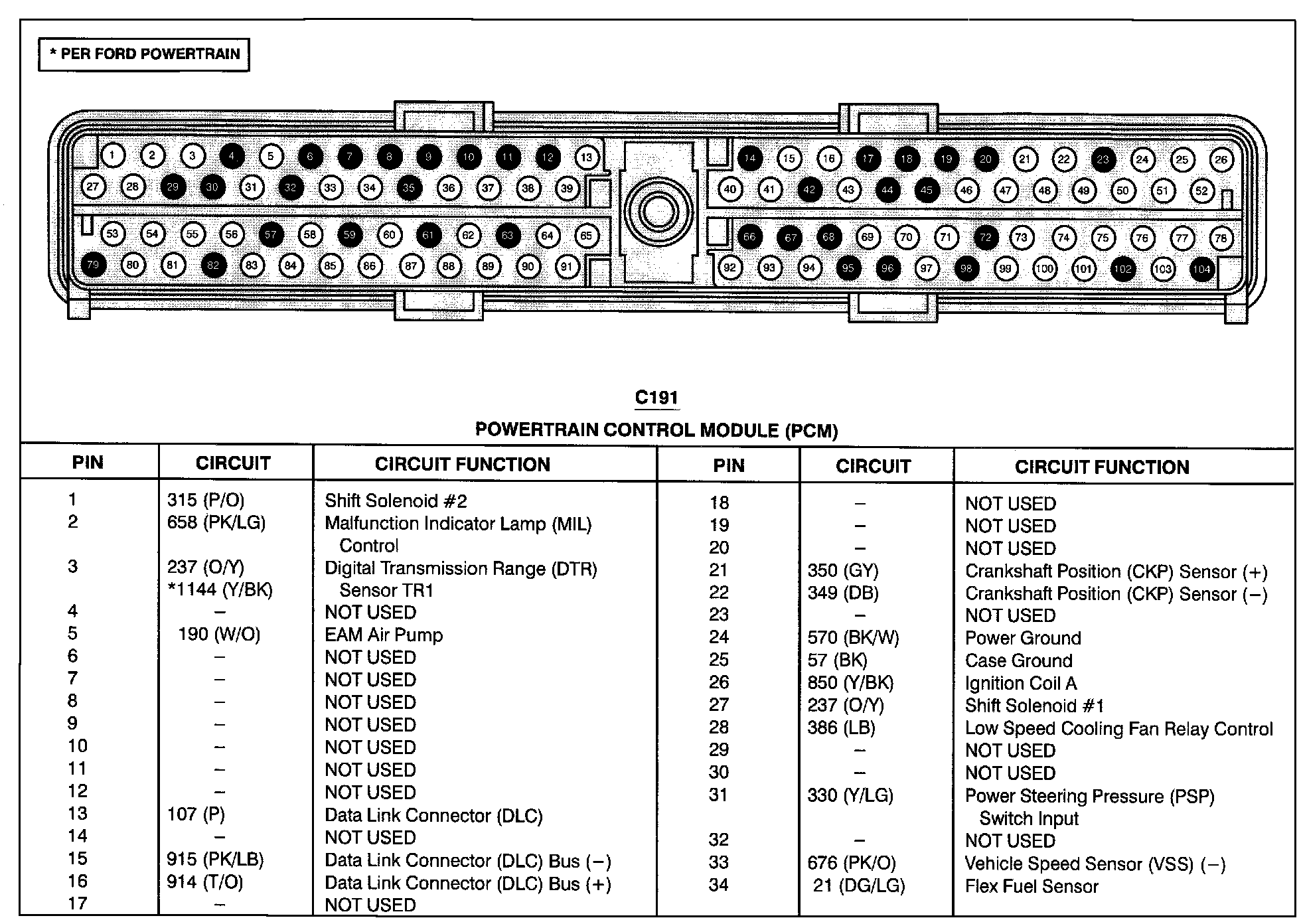

Engine Control Module
Engine Control Module
Engine Controls (part 1 Of 3):
Engine Controls (part 2 Of 3):
Engine Controls (part 3 Of 3):
