Instrument Panel, Gauges and Warning Indicators: Locations

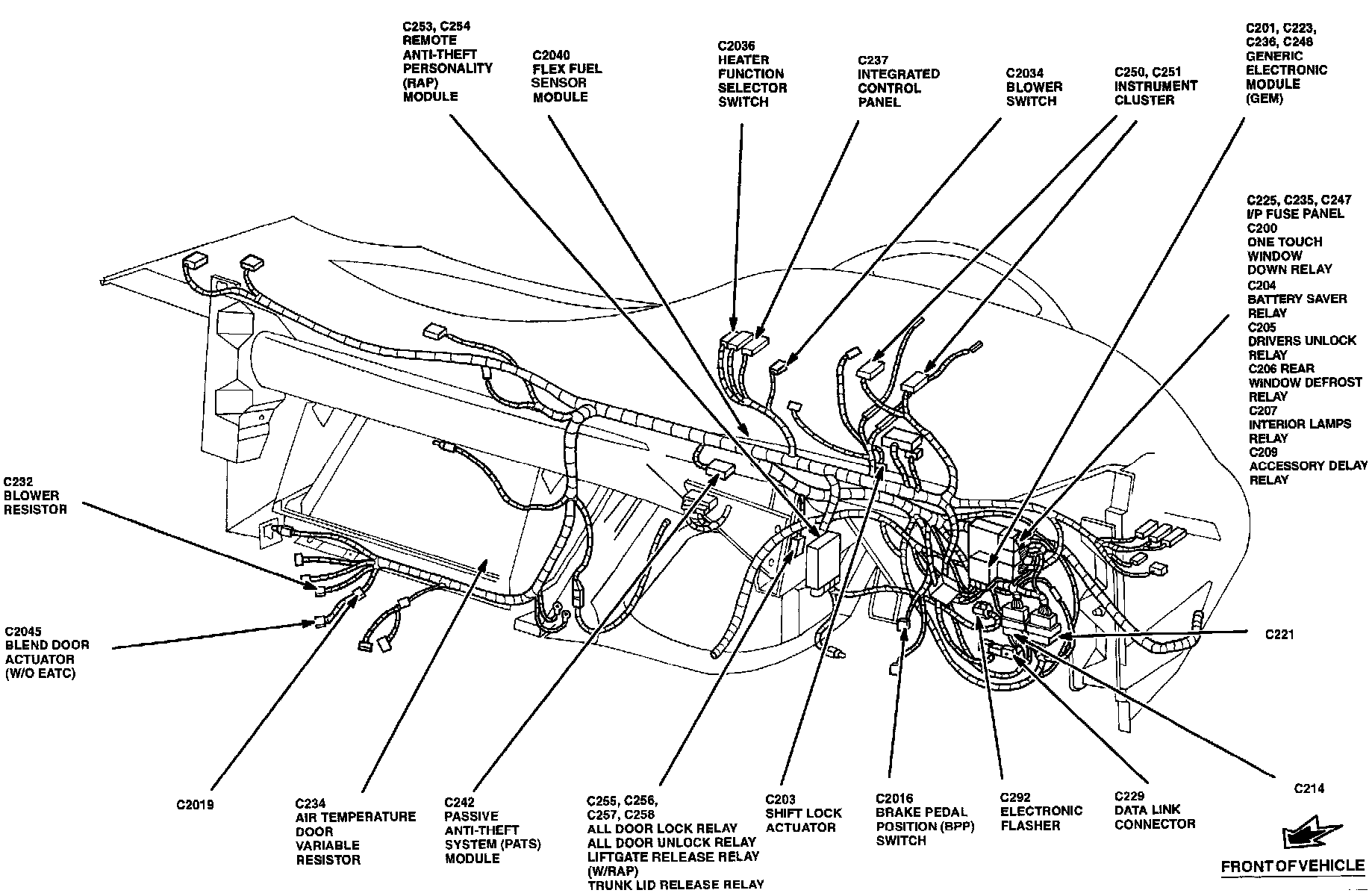

Behind Instrument Panel View:

The Flex Fuel Sensor Module is located at the center of the instrument panel, behind integrated control panel.
