Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1998 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> Test C: No Power In on Position

Test C: No Power In on Position

C1 - C4:

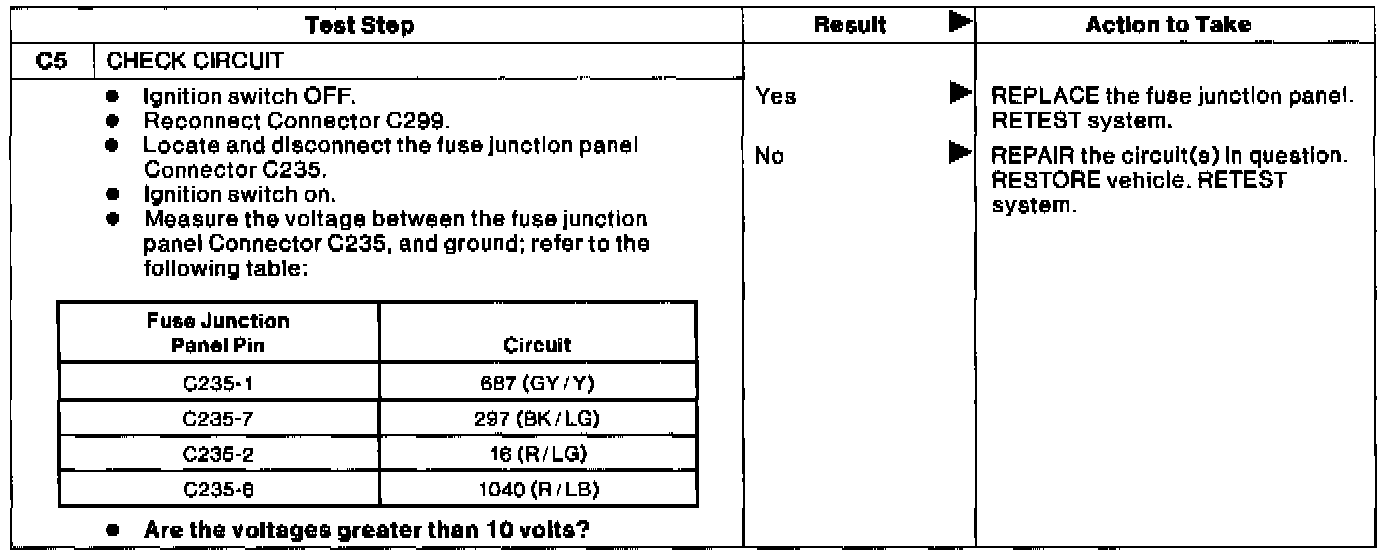

C5:
