Intake Manifold

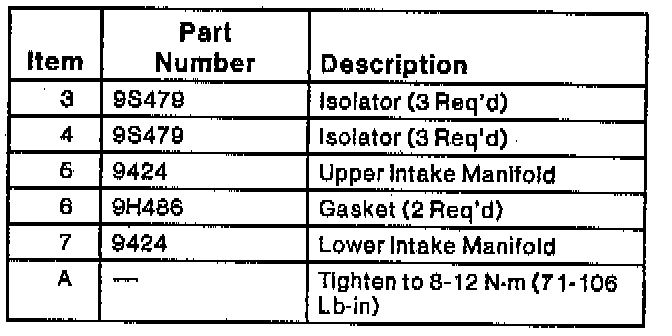

TORQUE SPECIFICATIONS

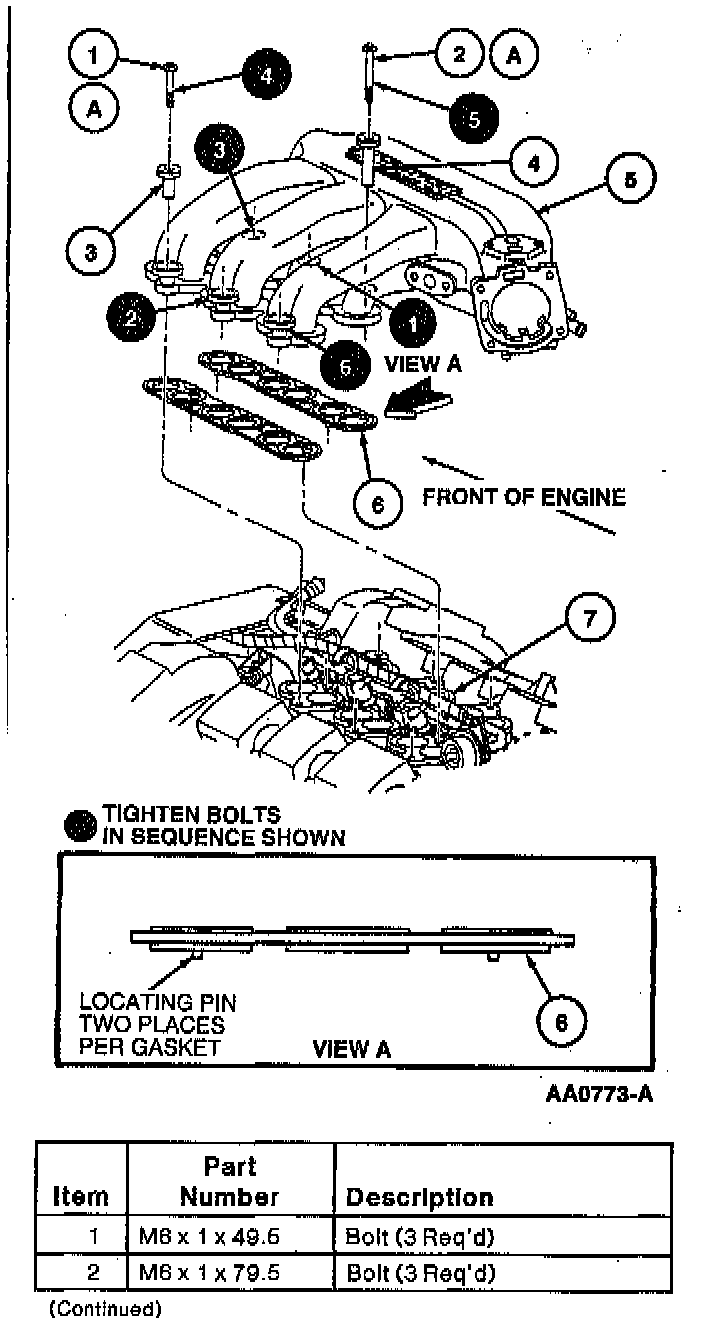

Lower Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).
(Part 1 Of 2):
(Part 2 Of 2):
Upper Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).
Lower Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).
Upper Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).
