Instrument Panel Fuse Panel
Instrument Panel Fuse Panel
Instrument Panel Fuse Panel (C225):
Instrument Panel Fuse Panel (C235):

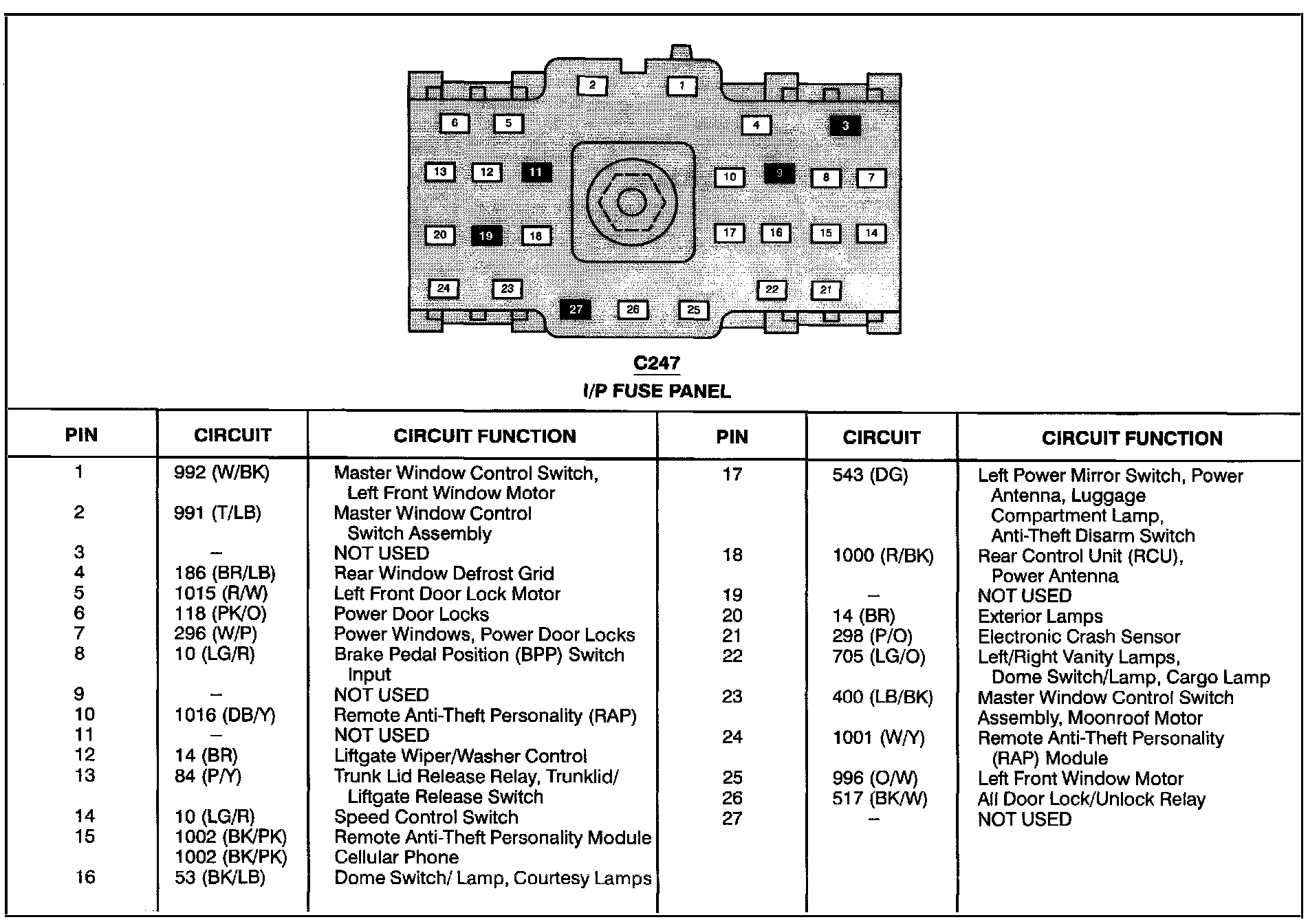

Instrument Panel Fuse Panel (C247):
