Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster
Instrument Cluster

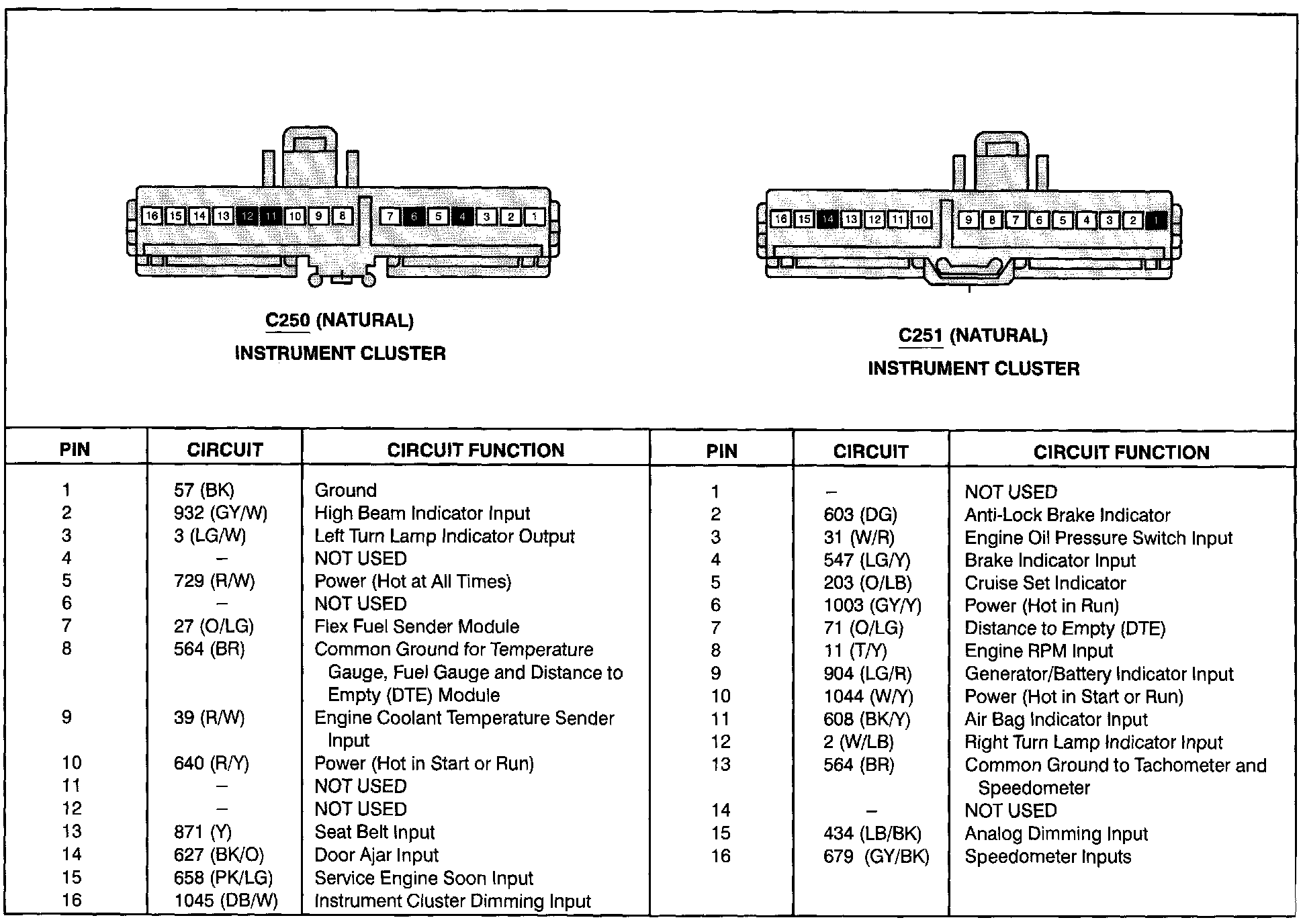

Instrument Cluster (C250,C251):
