Electrical Diagrams

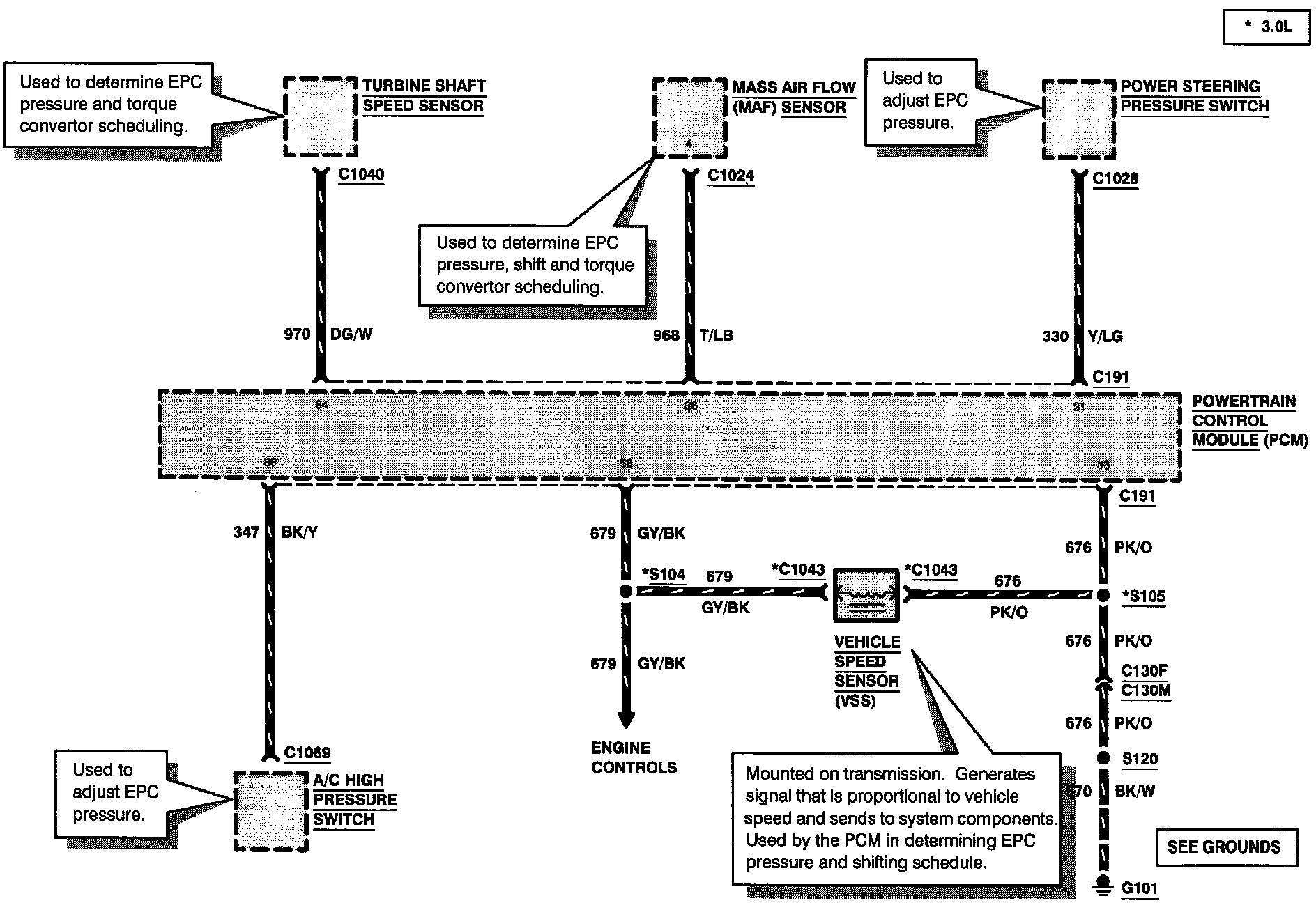

Transmission Controls (AX4S/AX4N) (Part 1 Of 5):

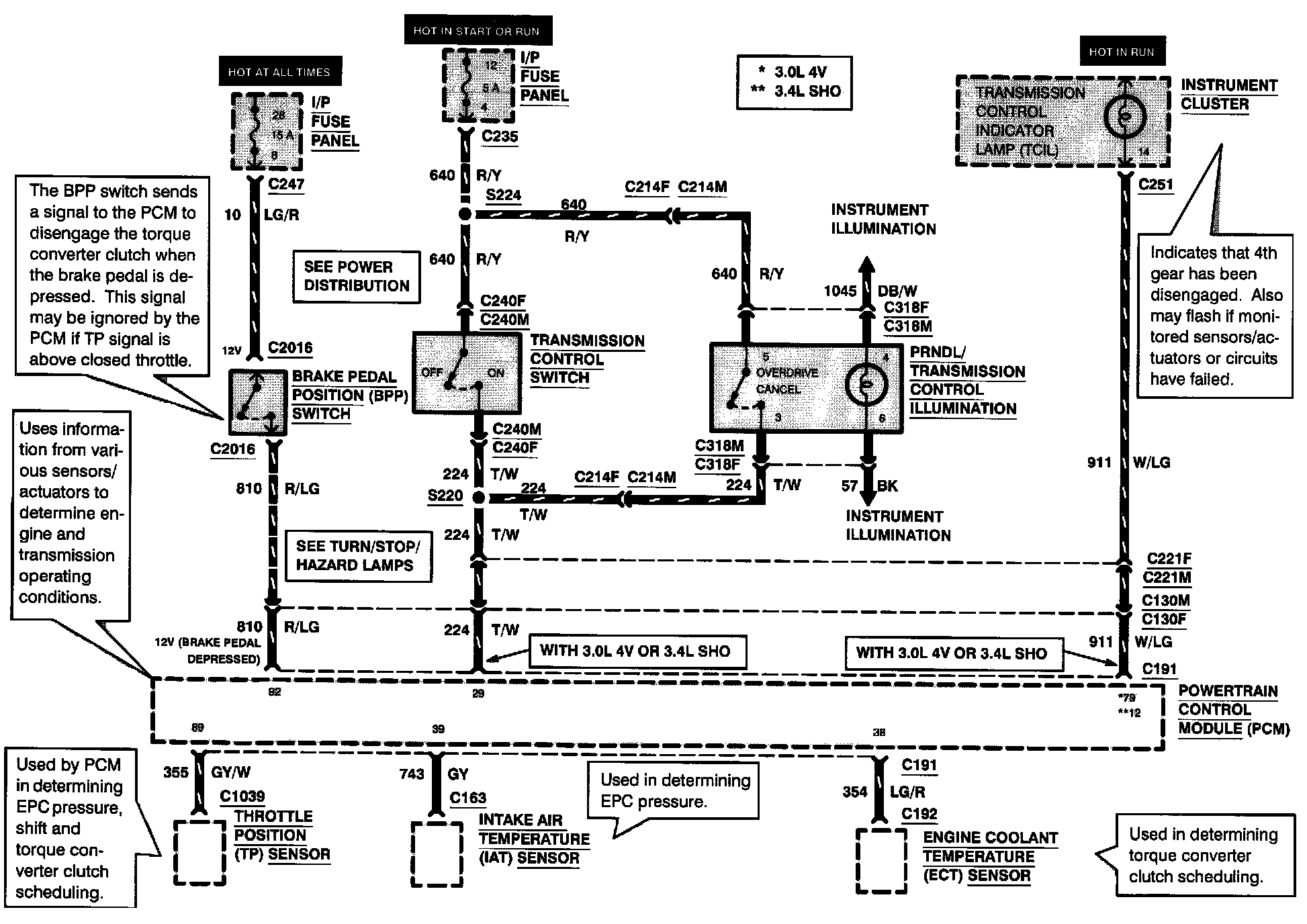

Transmission Controls (AX4S/AX4N) (Part 2 Of 5):
Transmission Controls (AX4S/AX4N) (Part 3 Of 5):
