Access Cover: Service and Repair

REMOVAL

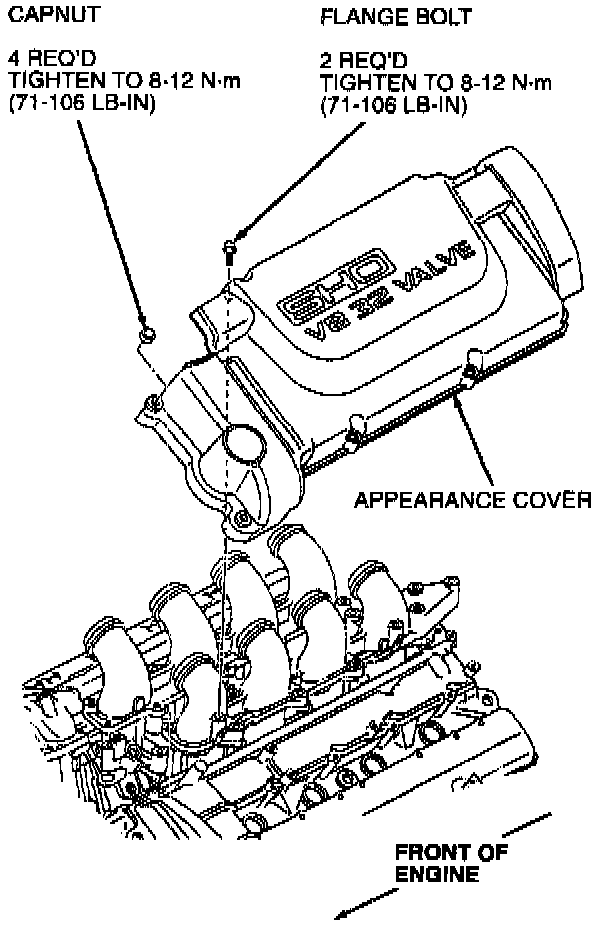

1. Remove two flange bolts and four cap nuts retaining appearance cover to engine.
2. Temporarily remove oil filler cap and remove appearance cover. Reinstall oil filler cap.

INSTALLATION





1. Follow removal procedure in reverse order.
2. Tighten four retaining capnuts and two retaining flange bolts to 8-12 Nm (71-106 inch. lbs.).
