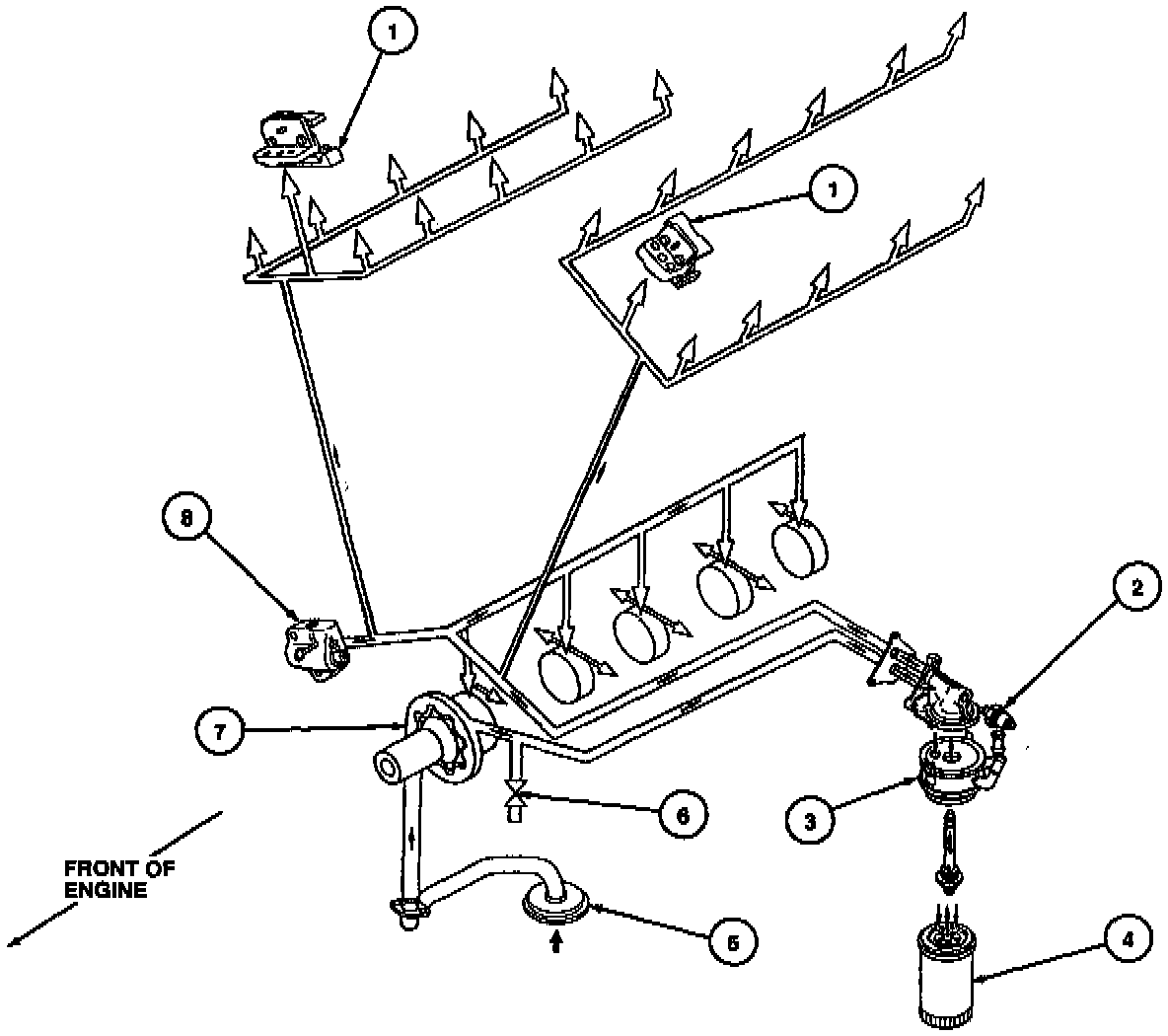

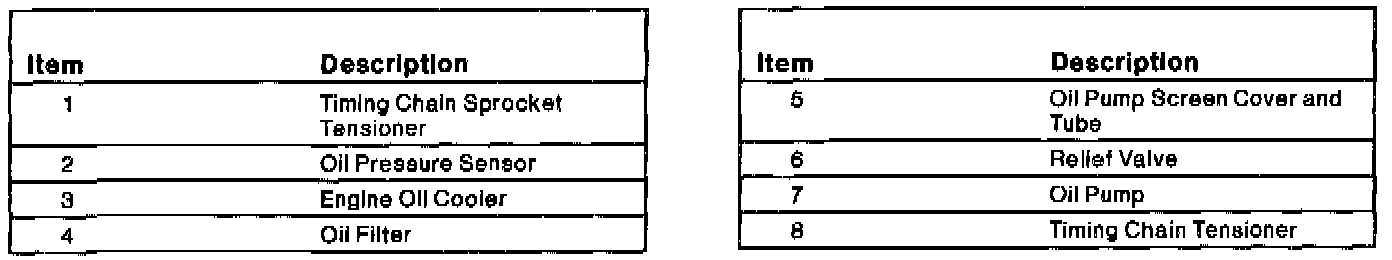

Engine Lubrication: Description and Operation

The engine lubrication system is of the force-feed type in which oil is supplied under full pressure to the:
- crankshaft
- connecting rod bearings
- camshaft journals
- valve stems and valve tappets, and timing chain tensioners.
