Crankshaft Main Bearing
GENERAL SPECIFICATIONSMain Bearings
Clearance to Crankshaft-Desired 0.010-0.031 mm (0.0004-0.0012 in)
Clearance to Crankshaft-Allowable 0.06 mm (0.0024 in)
Bearing Wall Thickness
Grade 1 2.491-2.495 mm (0.0981-0.0982 in)
Grade 2 (a) 2.494-2.498 mm (0.0982-0.0983 in)
Grade 3 2.497-2.501 mm (0.0983-0.0984 in)
Grade 4 2.500-2.504 mm (0.0984-0.0986 in)
Grade 5 2.503-2.507 mm (0.0985-0.0987 in)
Grade 6 2.506-2.510 mm (0.0987-0.0988 in)
Thrust Bearing Thickness 2.207-2.257 mm (0.0869-0.0889 in)
(a) Measured at perpendicular to, and 12.6 mm below piston pin hole center prior to coating.
TIGHTENING SPECIFICATIONS

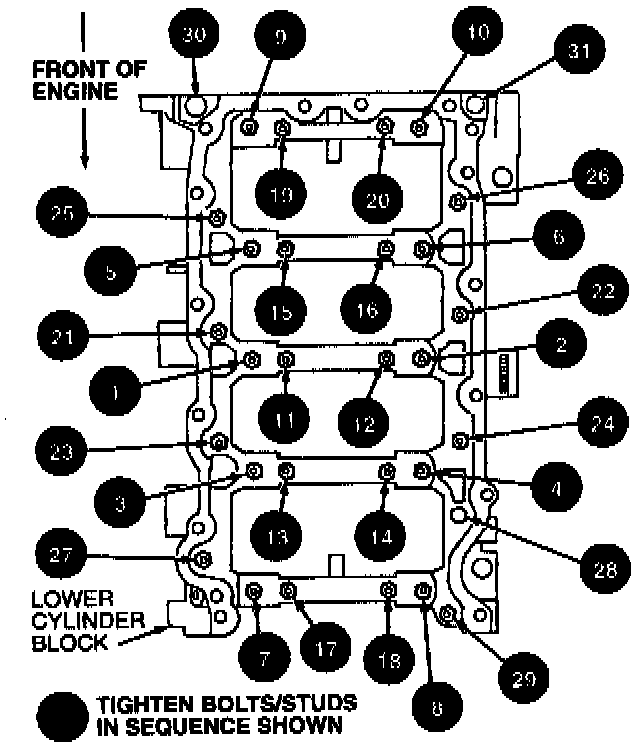

- Tighten lower cylinder block-to-upper cylinder block retaining bolts in sequence, as follows:
- Tighten fasteners 1 through 10 to 22-28 Nm (17-20 ft. lbs.).
- Tighten fasteners 11 through 20 to 37-43 Nm (28-31 ft. lbs.).
- Rotate fasteners 1 through 20 an additional 85-95 degrees.
- Tighten fasteners 21 through 31 to 20-30 Nm (15-22 ft. lbs.).
NOTE: Tighten all lower cylinder block-to-upper cylinder block retaining bolts within six minutes of installing lower cylinder block onto upper cylinder block.
- Verify crankshaft rotates freely and does not bind. Clean any residual sealer from inside the cylinder block with a clean shop towel.
