Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1999 >> Escort ZX2 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> C: Climate/Integrated Control Panel Illumination Inop

C: Climate/Integrated Control Panel Illumination Inop

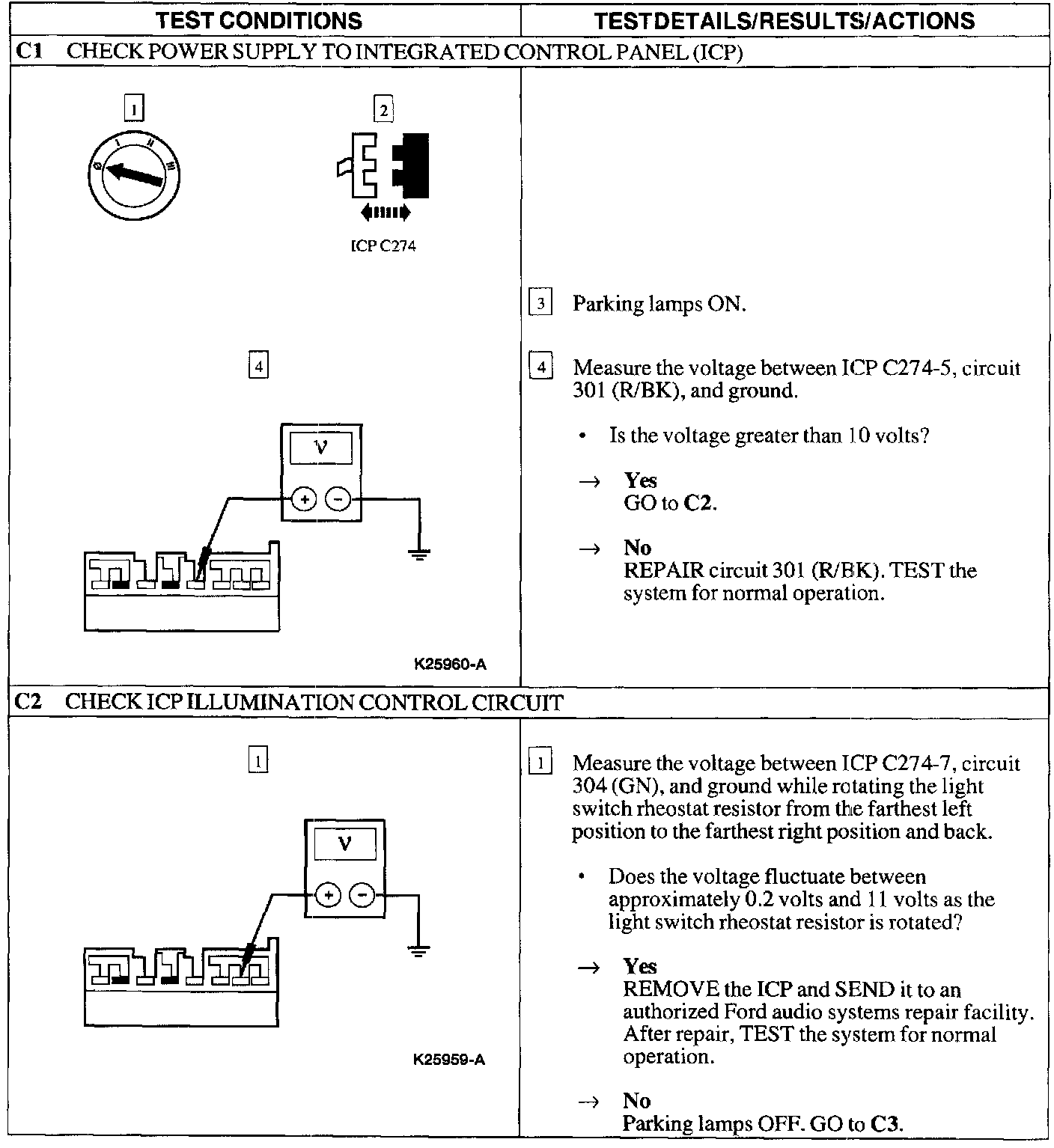

C1 - C2:



C3:
