Turn Signals: Service and Repair

REMOVAL

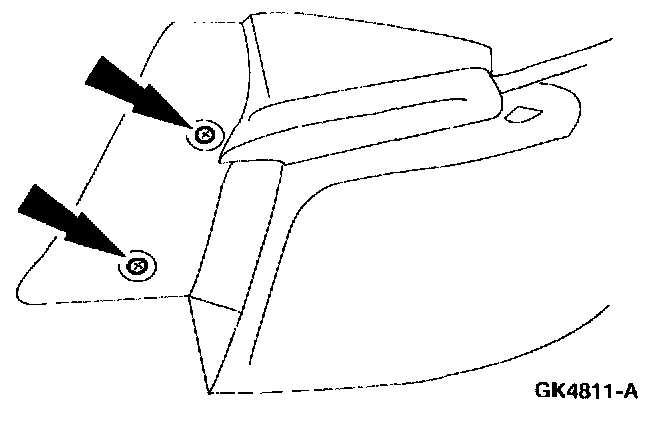

1. Remove the rear lamp screws.







2. Remove the rear lamp assembly.

NOTE: Push the rear lamp housing outward to disengage it from the mounting clip and expose the electrical connectors.

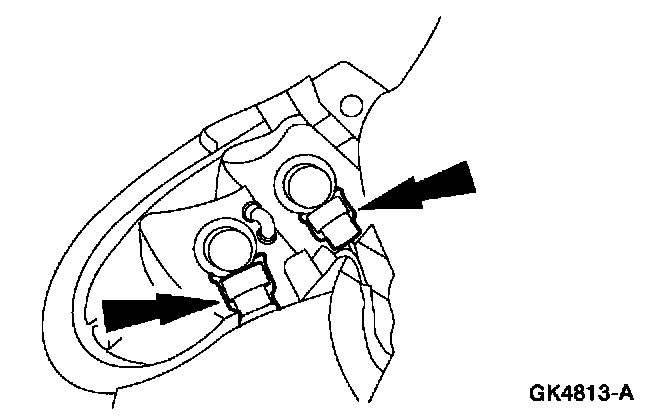

3. Disconnect the rear lamp electrical connectors from the sockets.

INSTALLATION

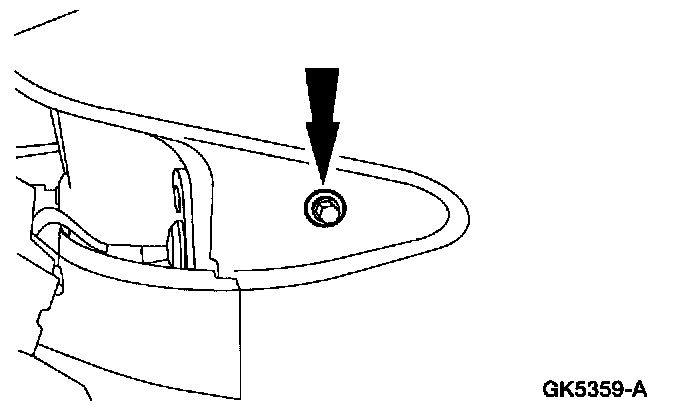

1. Remove the white clip from the rear lamp and install it in the sheet metal.







2. Connect the rear lamp electrical connectors to the sockets.







3. Position the rear lamp and gently push inward to engage the clips.

NOTE: Engage the tail lamp by pushing forward until an audible click is heard.

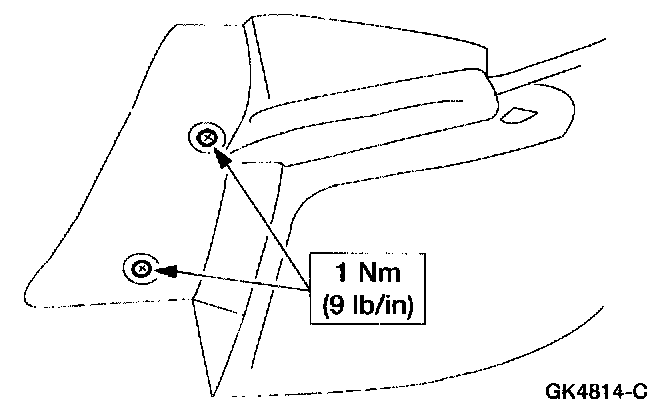

4. Install the rear lamp screws.

NOTE: Install the top screw first.
