H - Hydro-Boost Brake System Operation Suspect

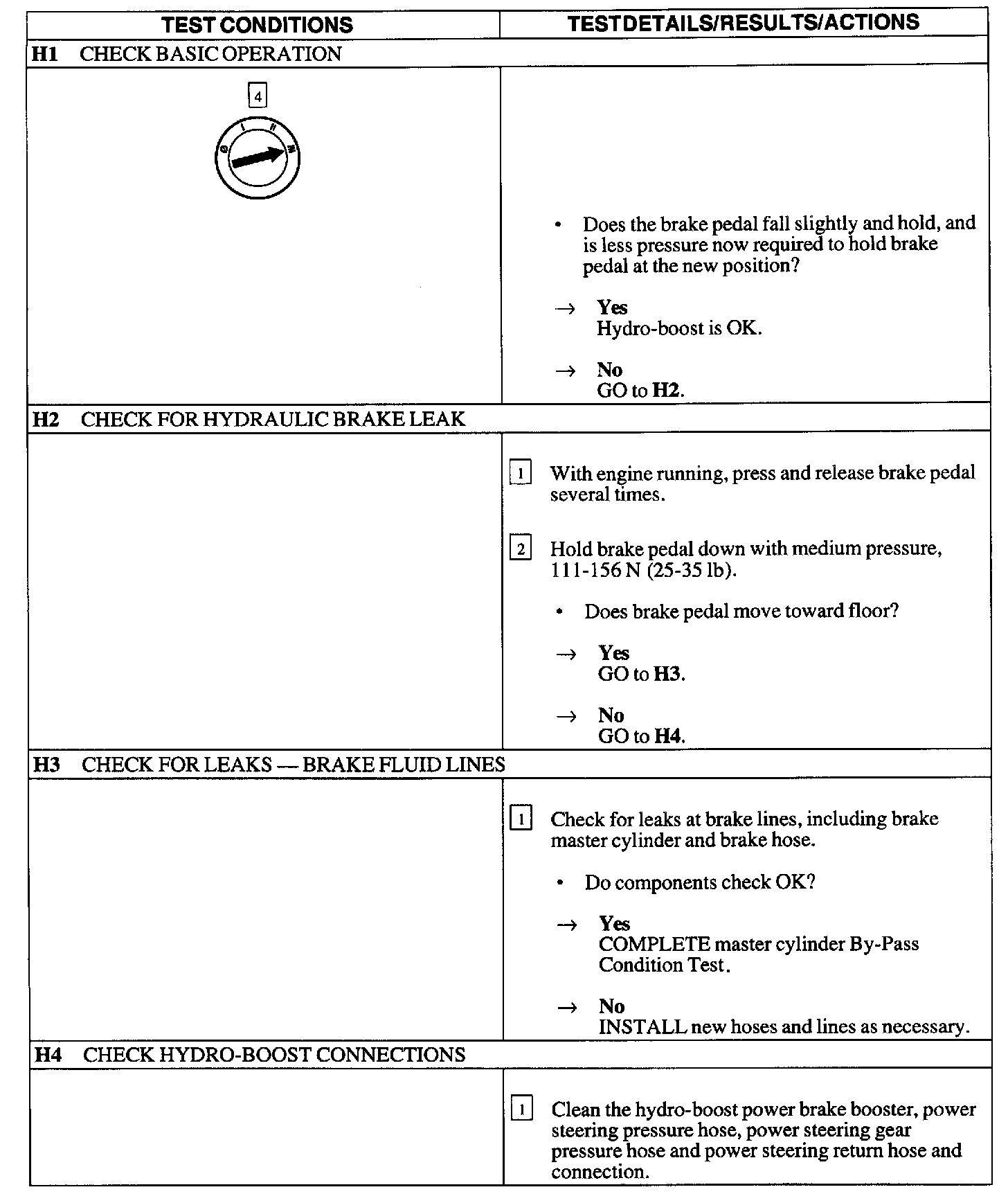

Test H1:




Test H1 - H4:




Test H4 - H6:




Test H6:
