Control Assembly, HVAC

Function Selector Switch Vacuum Connector:




Vacuum Schematic - Manual Climate Control System

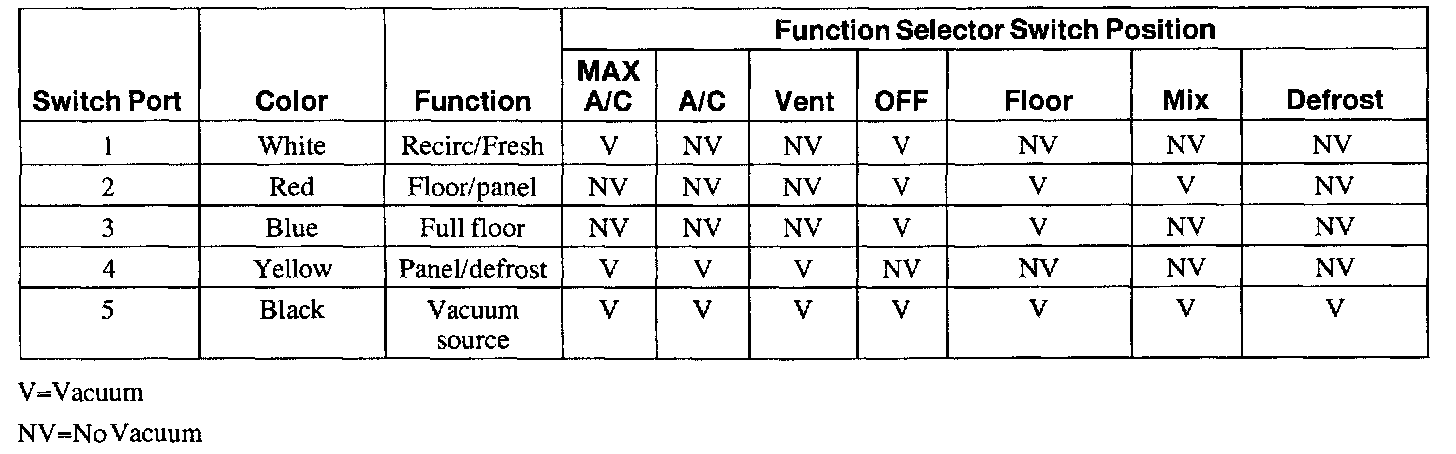

Function Selector Switch Vacuum Application Chart
