Connectors

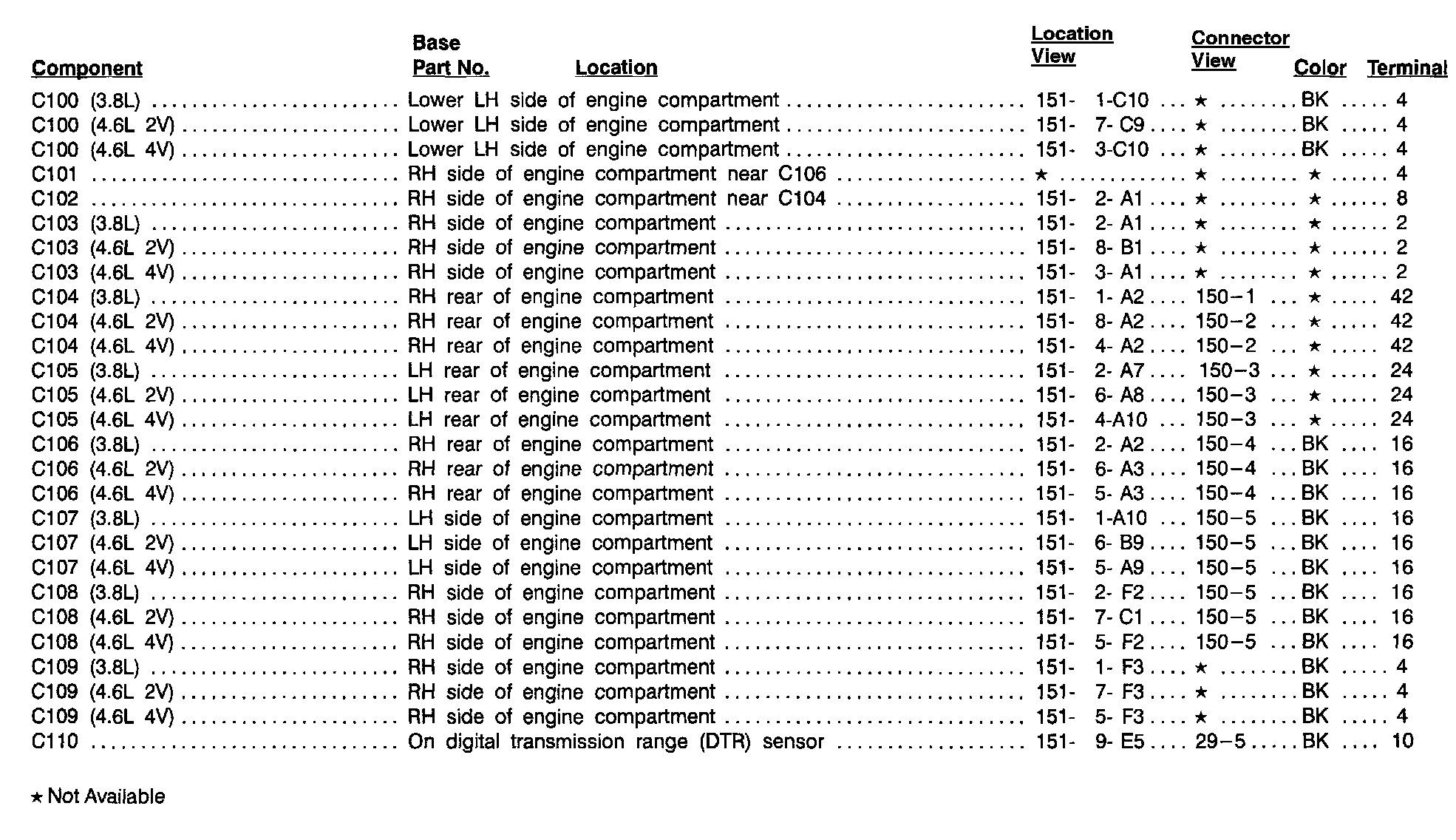

C100-C110:

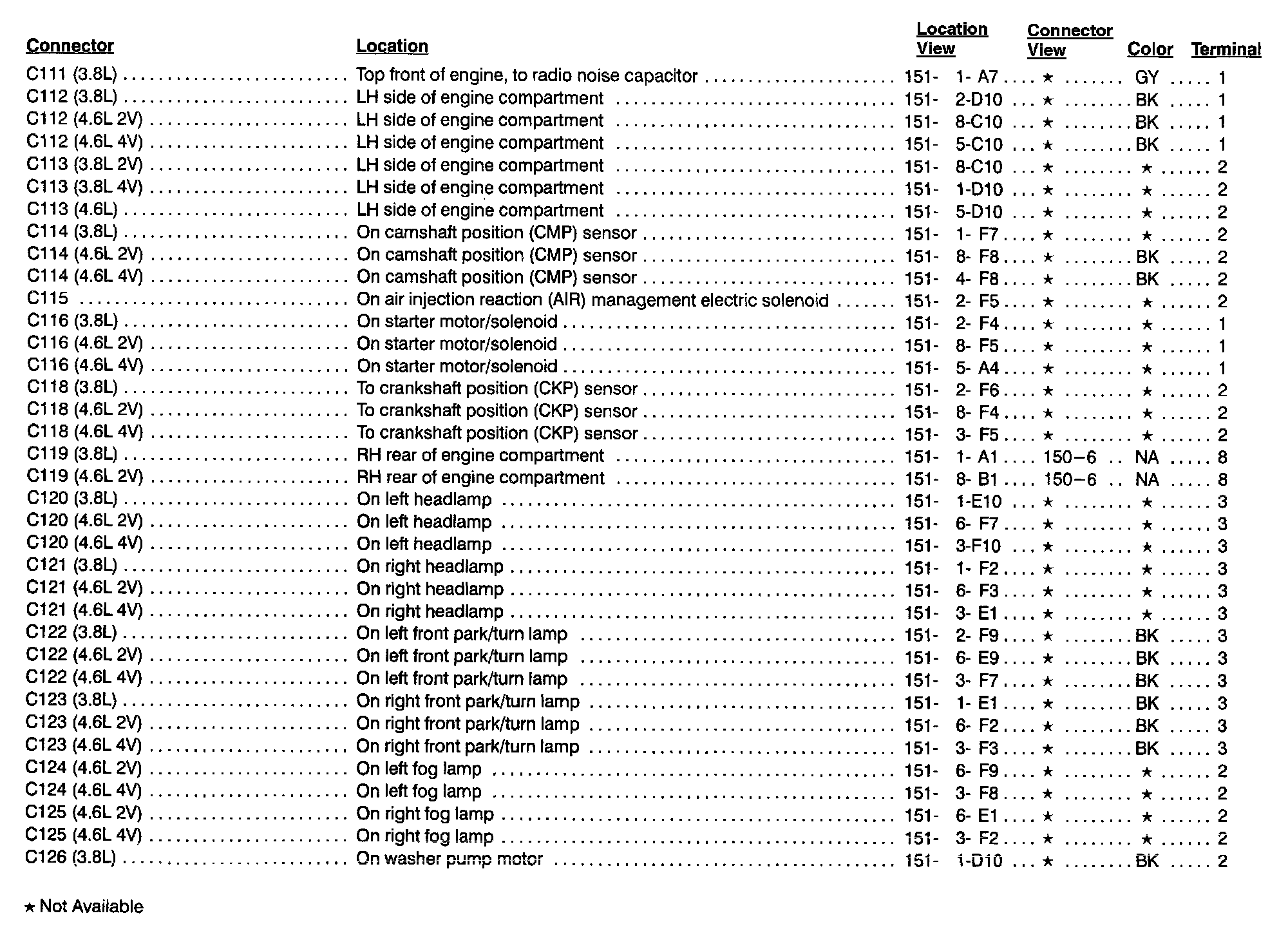

C111-C126:

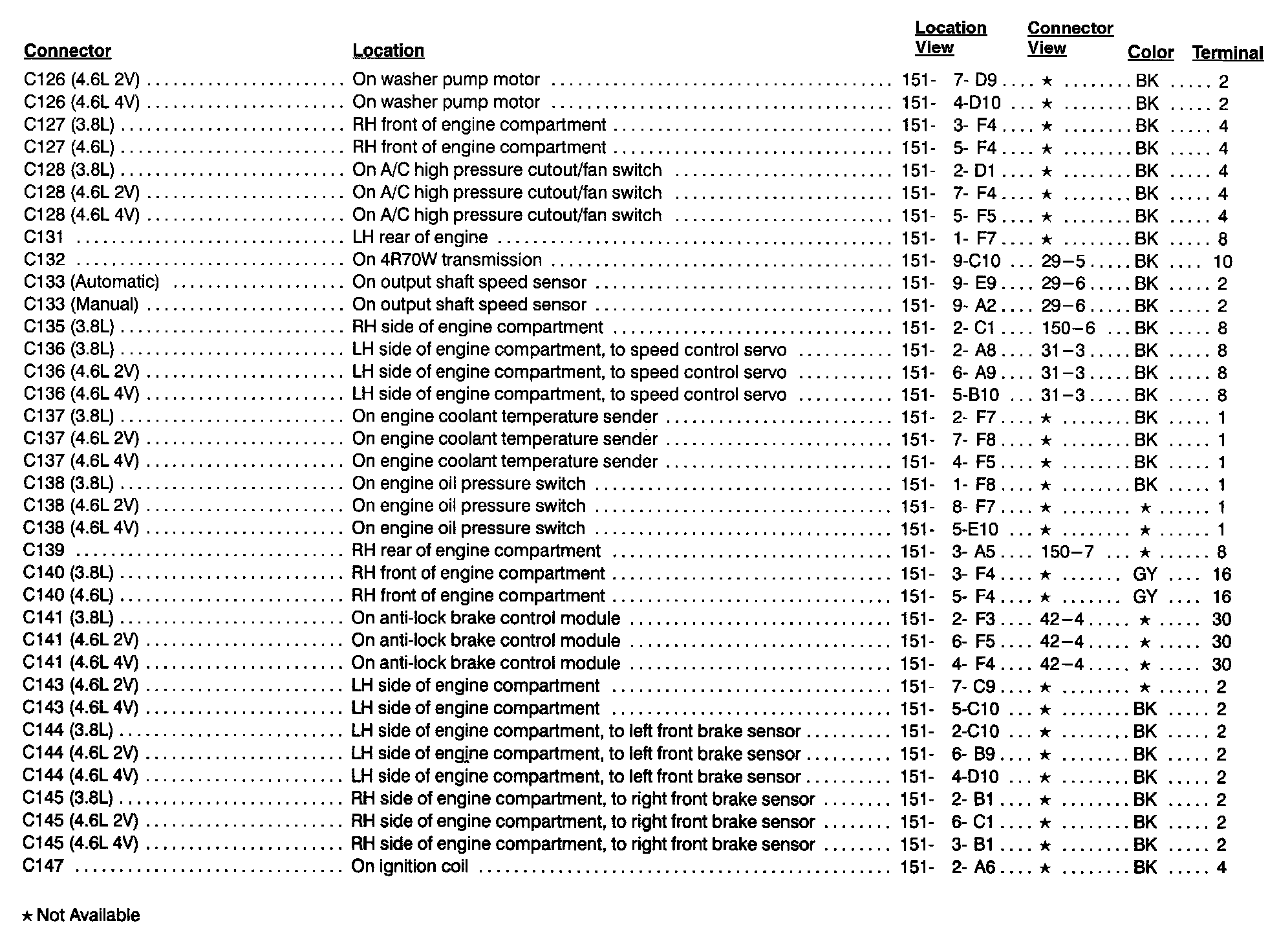

C126-C147:

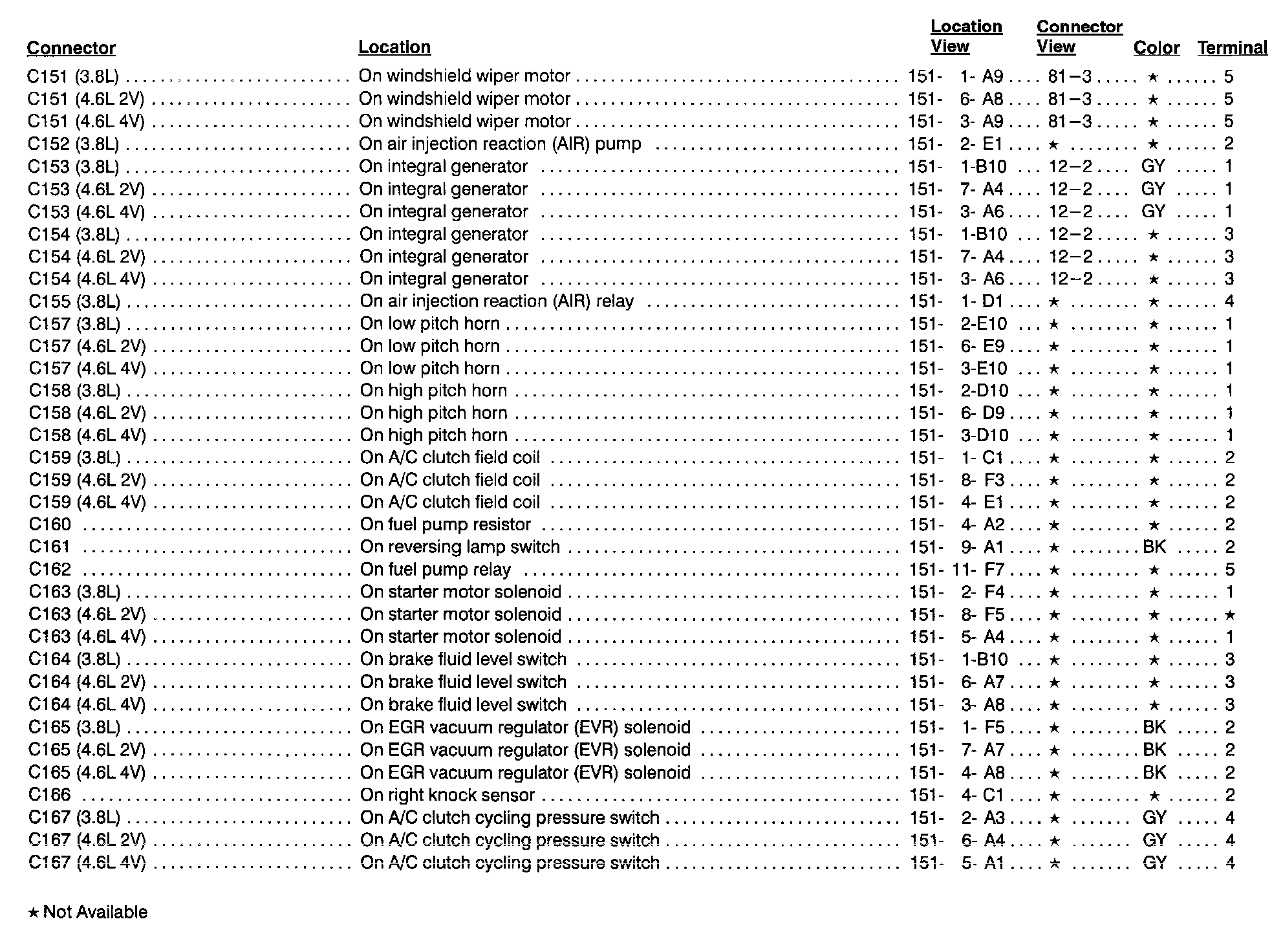

C151-C167:






C168-C183:






C184-C202:

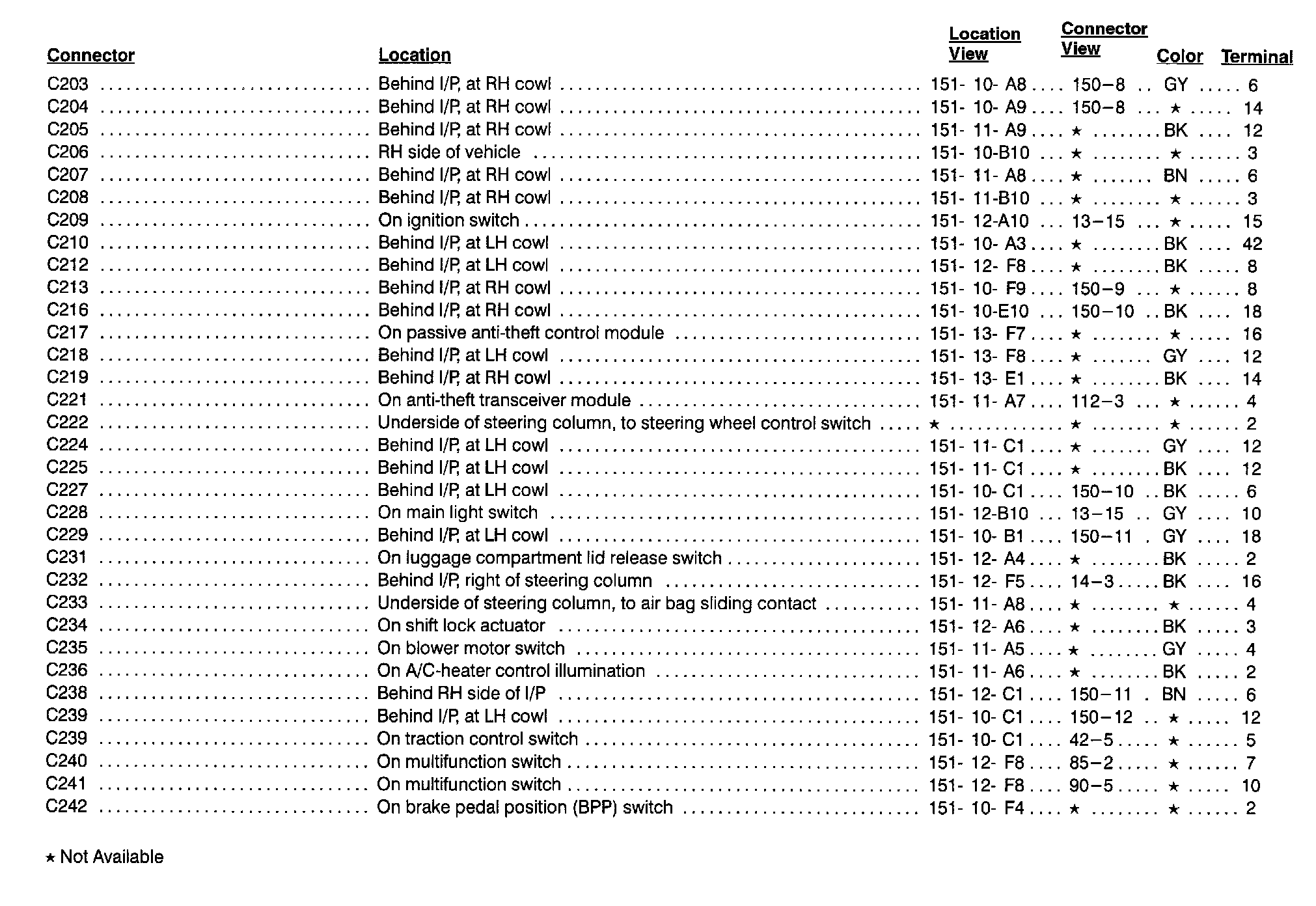

C203-C242:






C245-C286:






C287-C318:






C318-C413:






C414-C433:

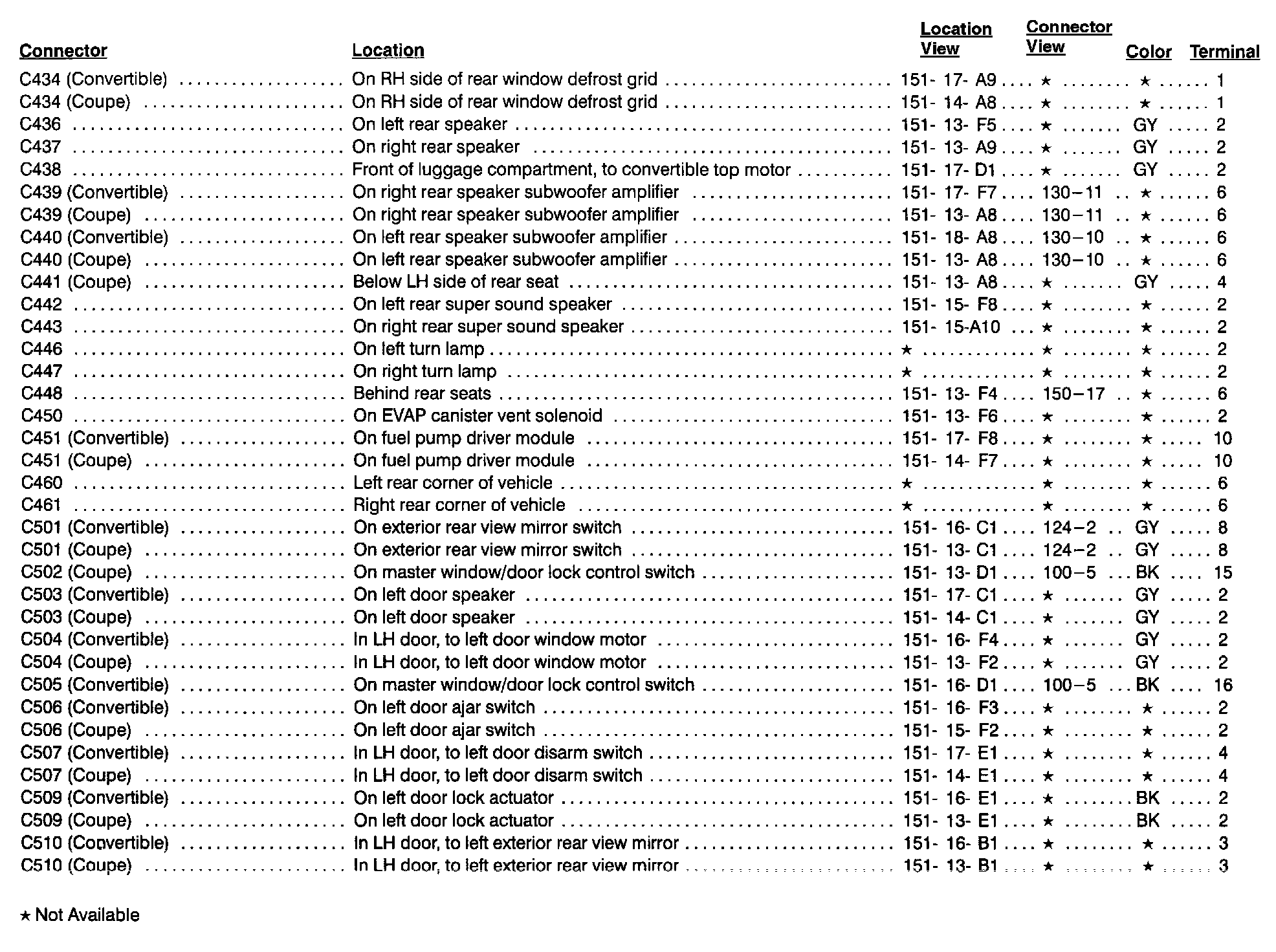

C434-C510:

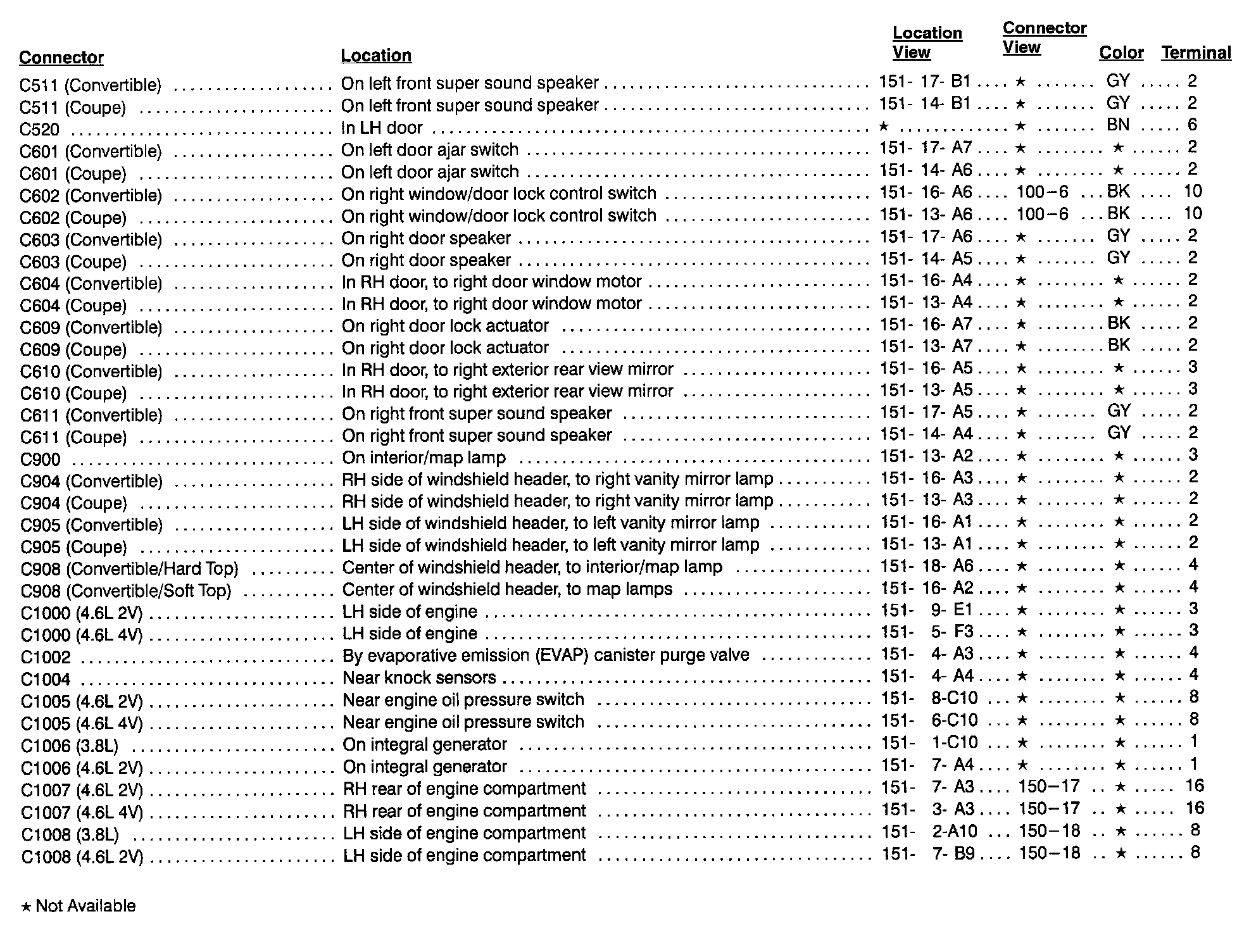

C511-C1008:






C1008-C1202:
