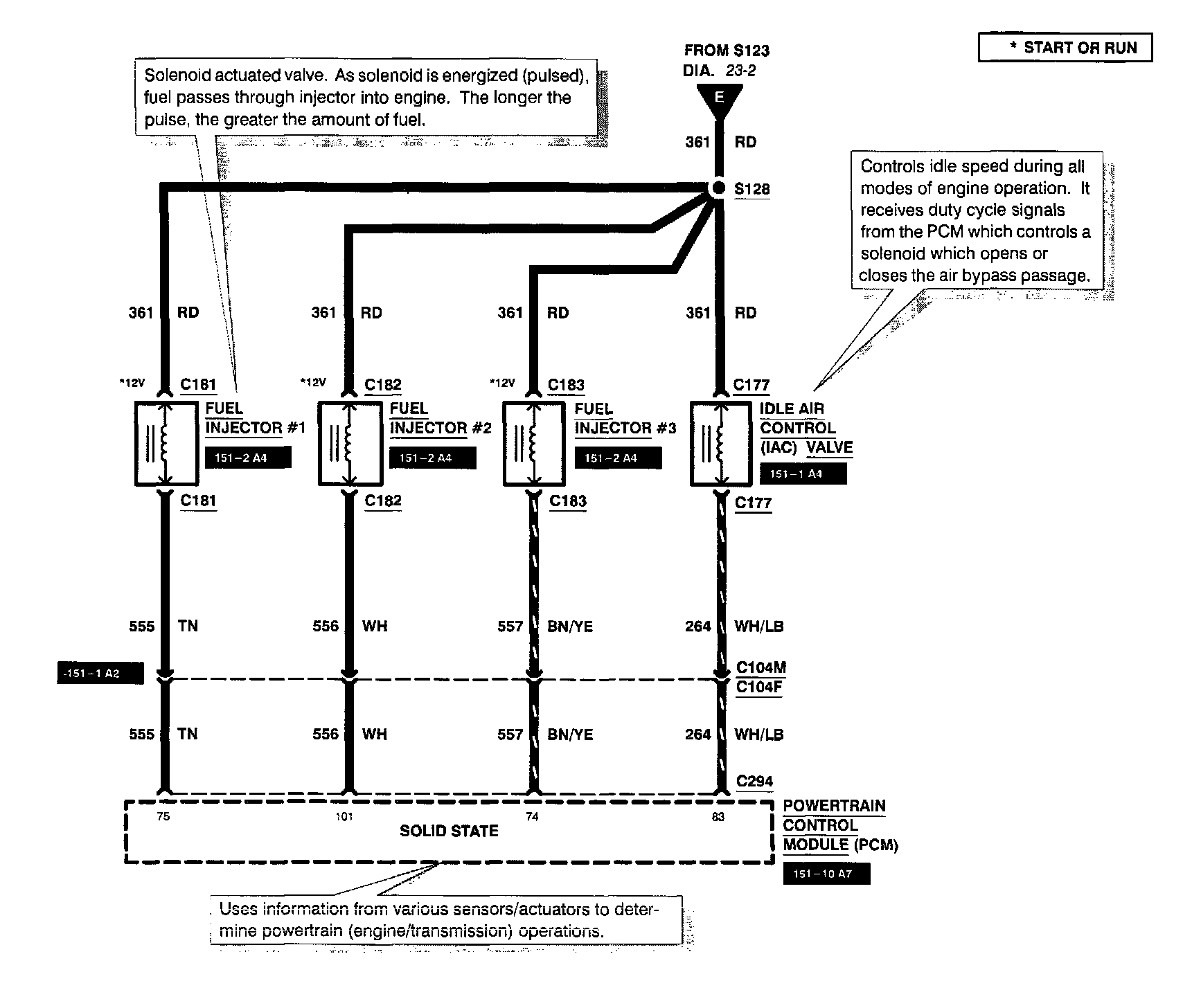

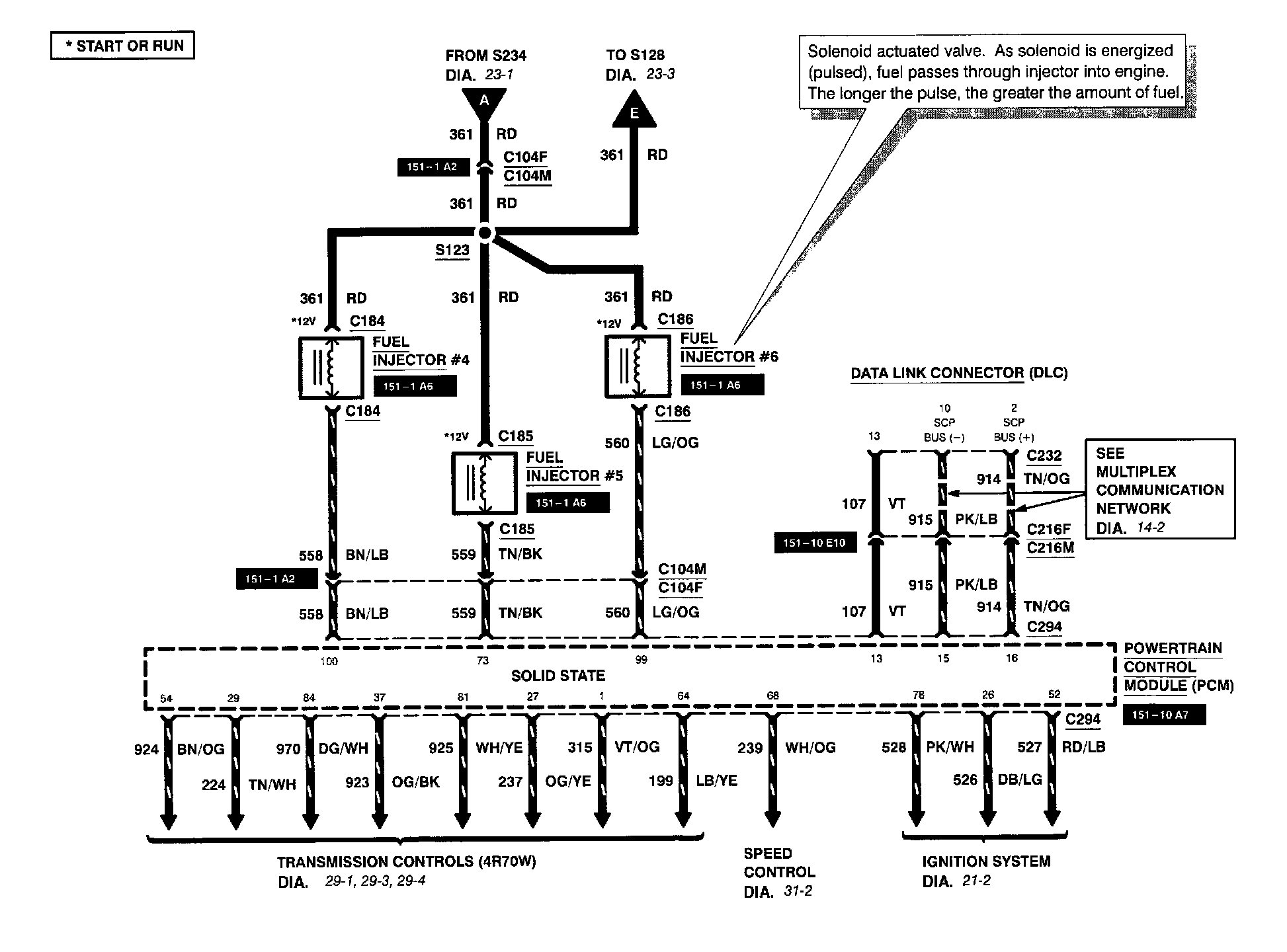

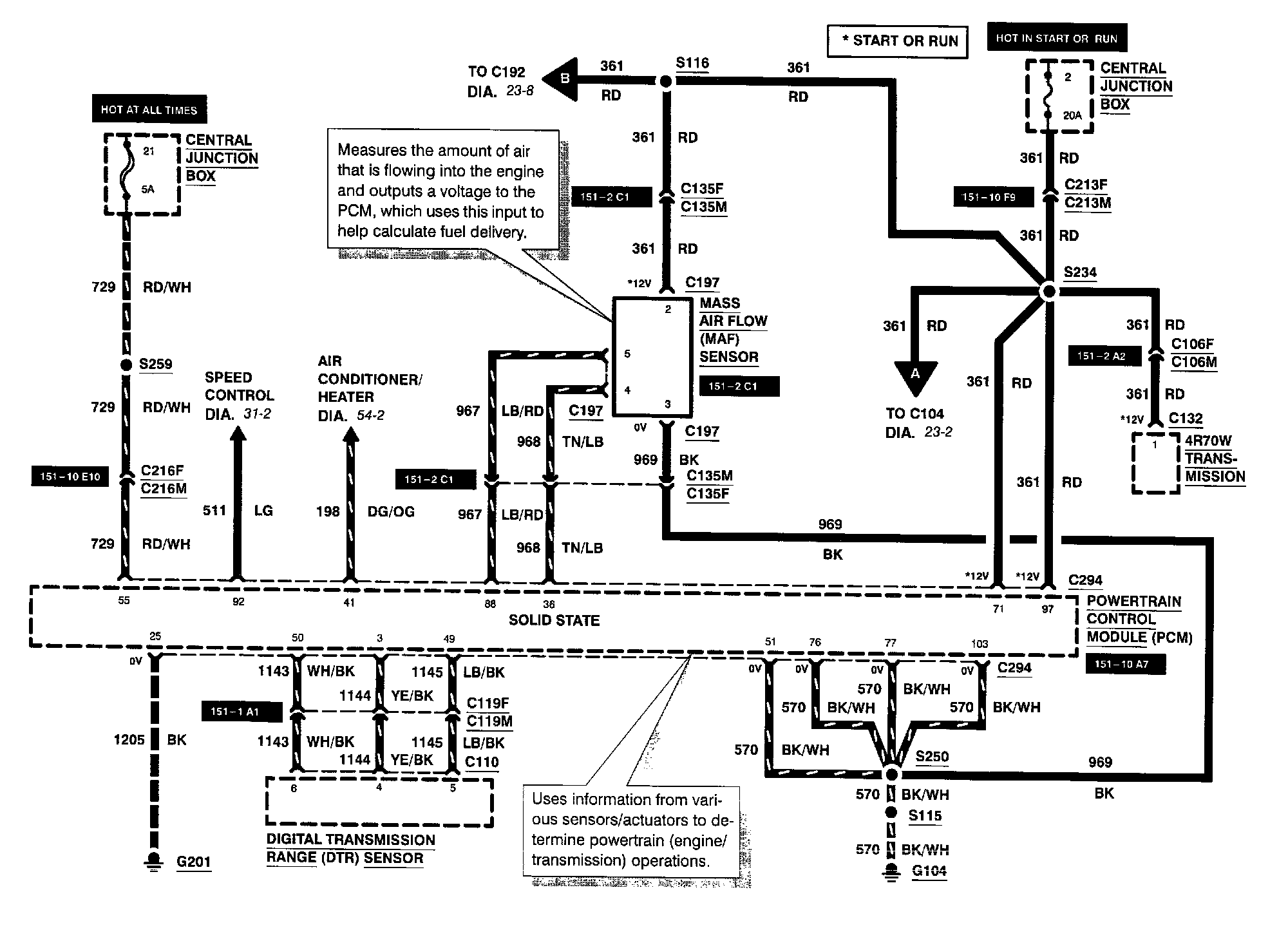

System Diagram

Diagram 23-4:

Left Front Heated Oxygen Sensor #21
Left Rear Heated Oxygen Sensor #22
Powertrain Control Module
Right Front Heated Oxygen Sensor #11
Right Rear Heated Oxygen Sensor #12

Diagram 23-5:

Camshaft Position Sensor
Crankshaft Position Sensor
Differential Pressure Feedback EGR Sensor
Engine Coolant Temperature Sensor
Fuel Rail Pressure Transducer
Powertrain Control Module
Throttle Position Sensor

Diagram 23-6:

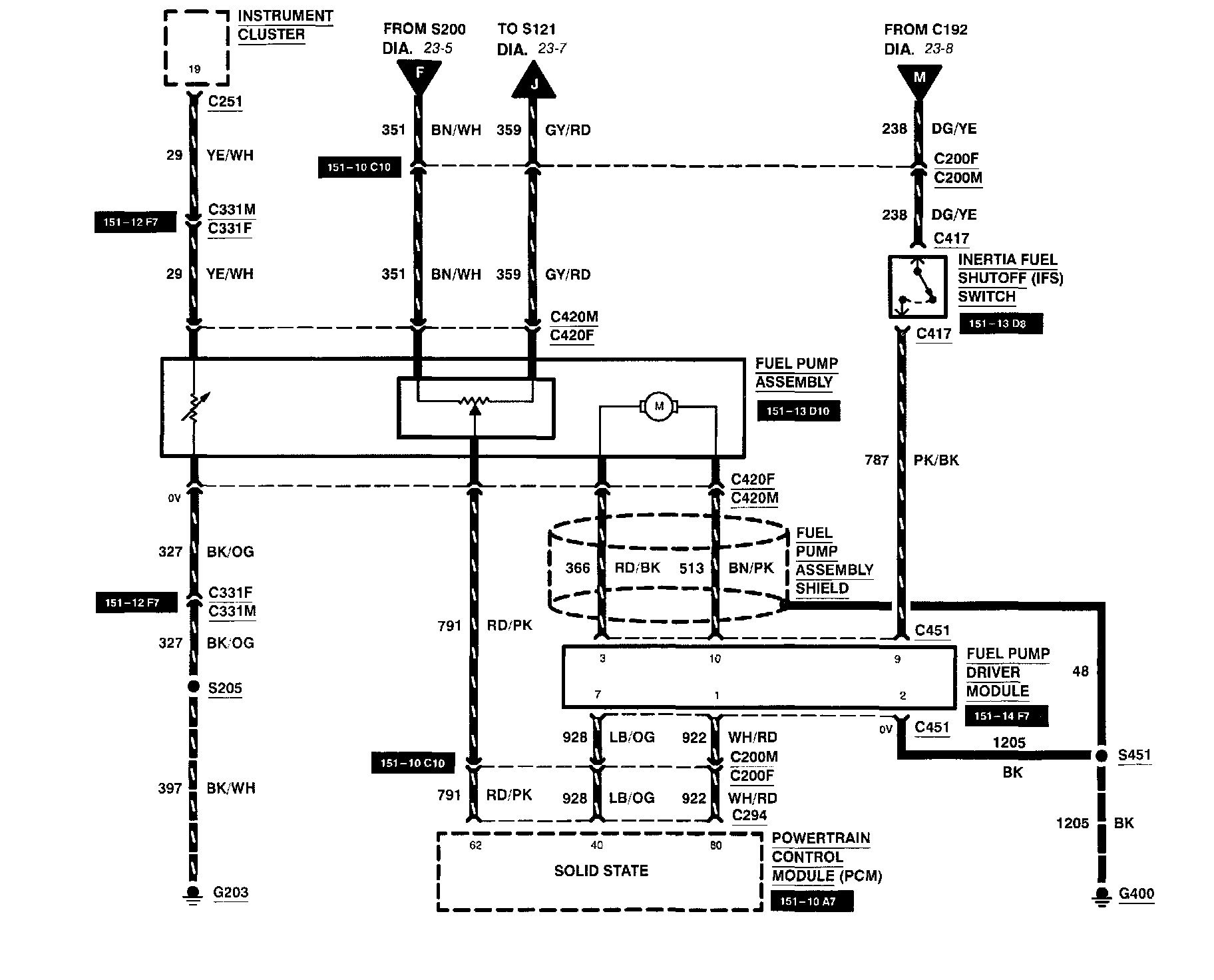

Fuel Pump Assembly
Fuel Pump Assembly Shield
Fuel Pump Driver Module
Inertia Fuel Shutoff Switch
Instrument Cluster
Powertrain Control Module

Diagram 23-7:

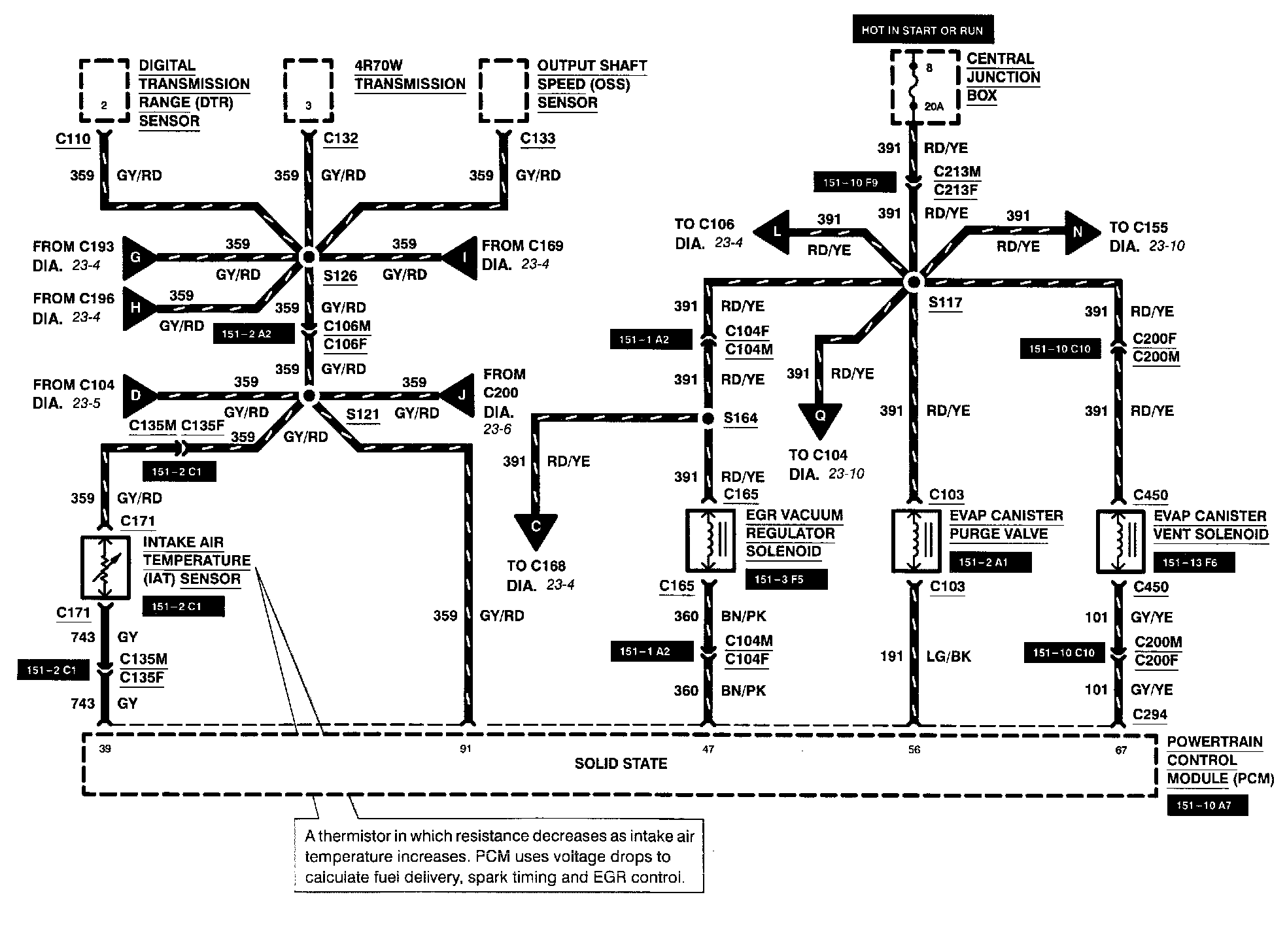

4R70W Transmission
Central Junction Box
Digital Transmission Range Sensor
EGR Vacuum Regulator Solenoid
Evaporative Canister Purge Valve
Evaporative Canister Vent Solenoid
Fuse 8
Intake Air Temperature Sensor
Output Shaft Speed Sensor
Powertrain Control Module

Diagram 23-8:

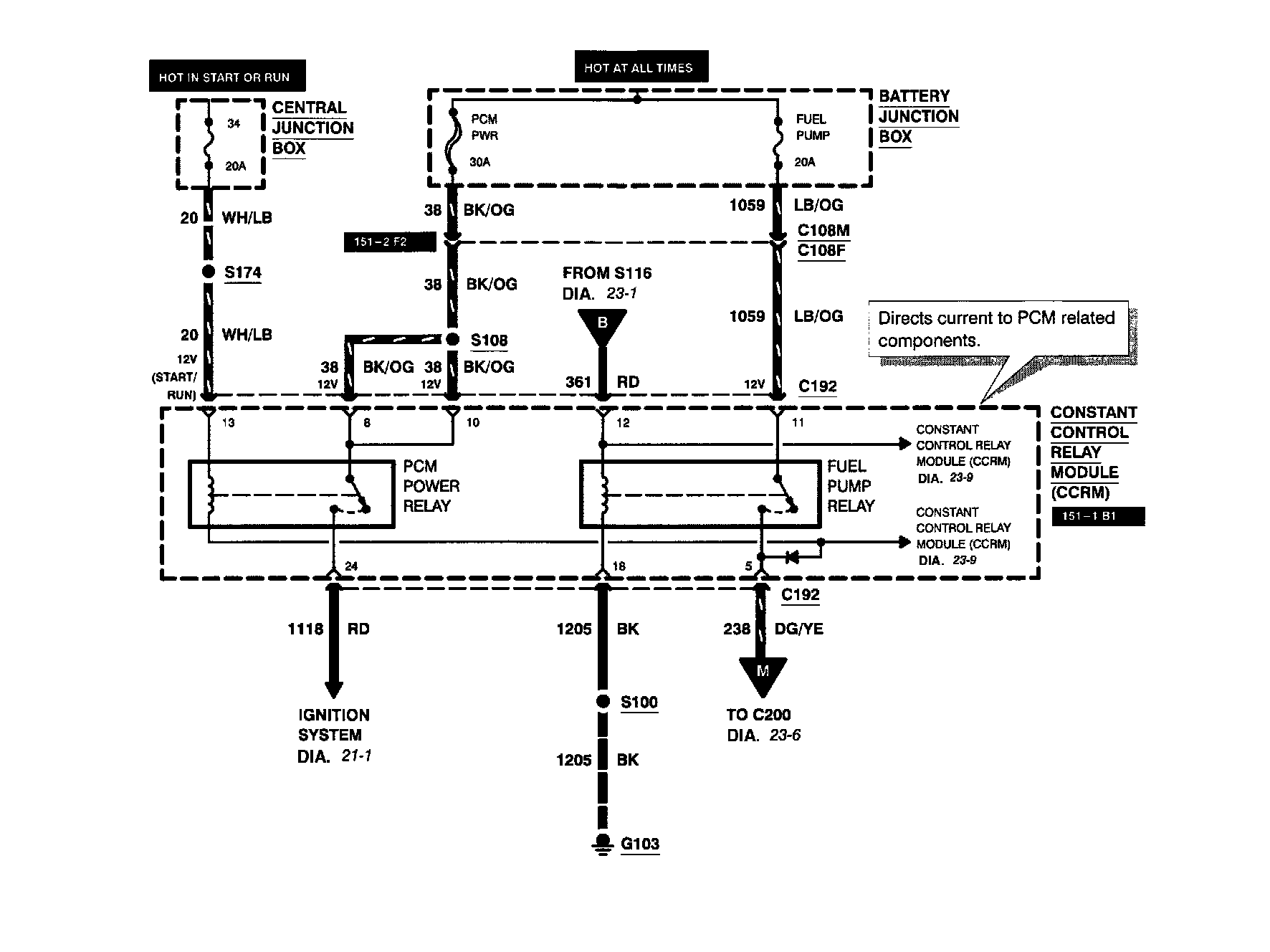

Battery Junction Box
Central Junction Box
Constant Control Relay Module
Fuel Pump Relay
Fuse 34
Fuse FUEL PUMP
Fuse PCM PWR
Powertrain Control Module Power Relay

Diagram 23-9:

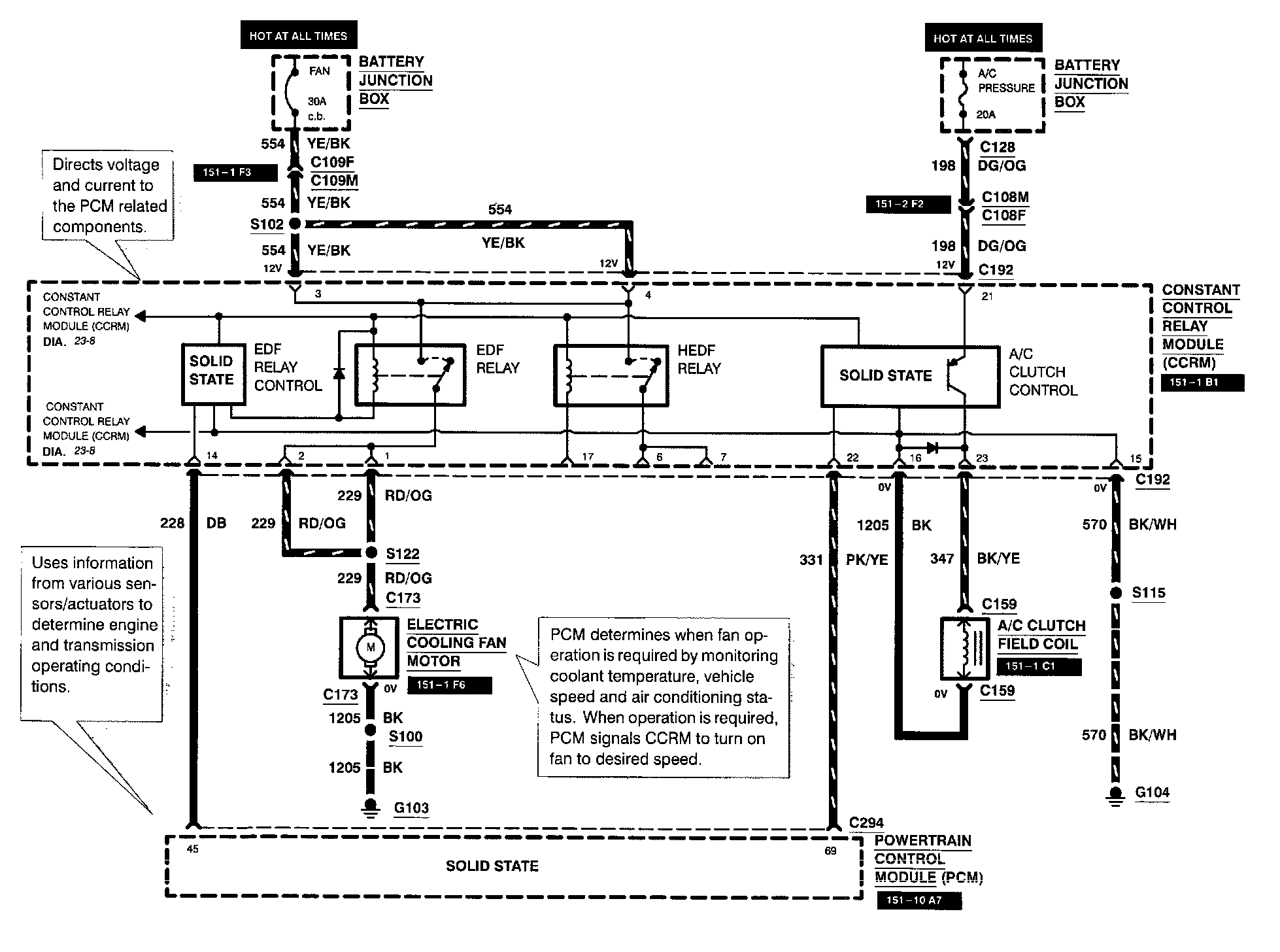

A/C Clutch Control
A/C Clutch Field Coil
Battery Junction Box
Circuit Breaker FAN
Constant Control Relay Module
EDF Relay
EDF Relay Control
Electric Cooling Fan Motor
Fuse A/C PRESSURE
HEDF Relay
Powertrain Control Module

Diagram 23-10:

Air Injection Reaction Management Electric Solenoid
Air Injection Reaction Pump
Air Injection Reaction Relay
Battery Junction Box
Fuse THERM
Powertrain Control Module
