Blower Motor: Service and Repair

REMOVAL

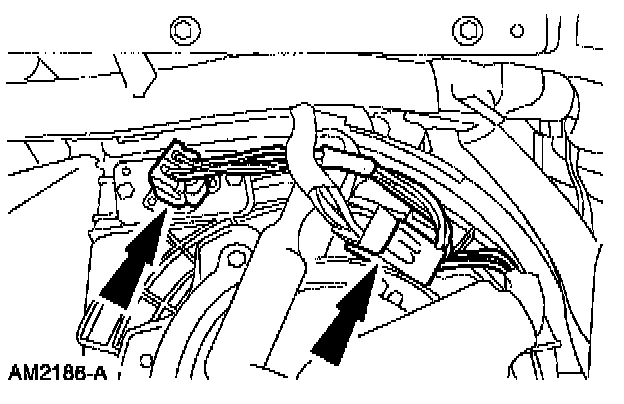

1. Disconnect the jumper wire.







2. Disconnect the main harness.

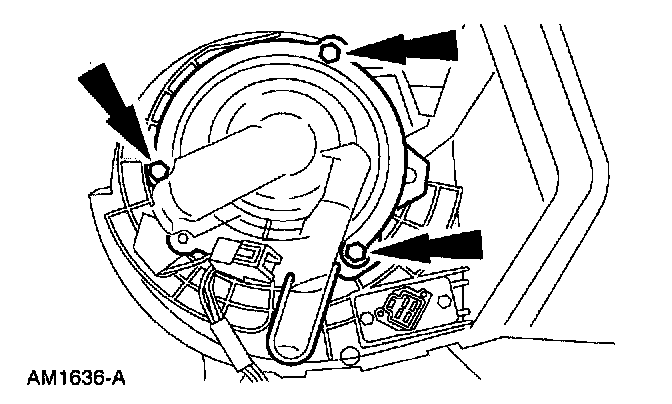

3. Remove the 3 screws.







4. Separate the cover from the motor.

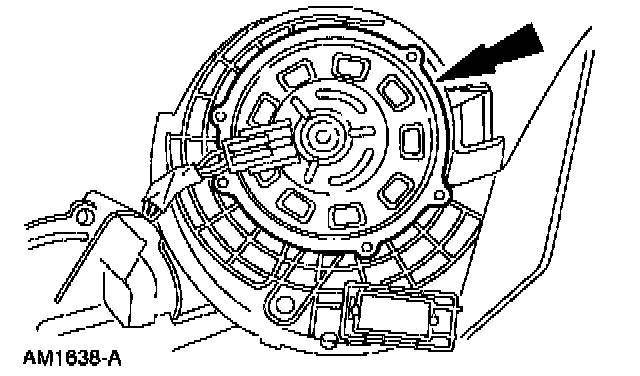

5. Separate the motor from the housing.

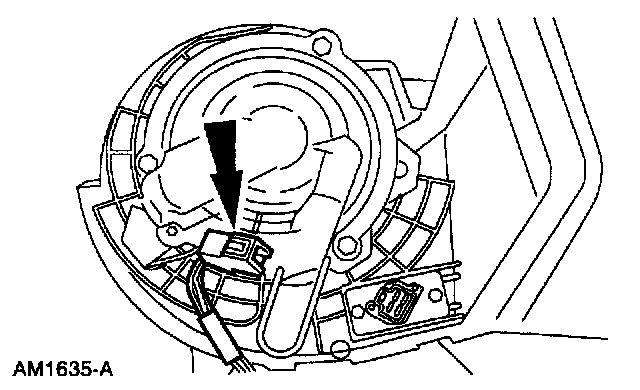

6. Disconnect the jumper from the motor.
- Remove the blower motor.

INSTALLATION
1. To install, reverse the removal procedure.
