Heater Core Case: Service and Repair

REMOVAL
1. Remove the instrument panel. Body and Frame / Interior Trim / Dash Board.

2. Remove the audio unit.

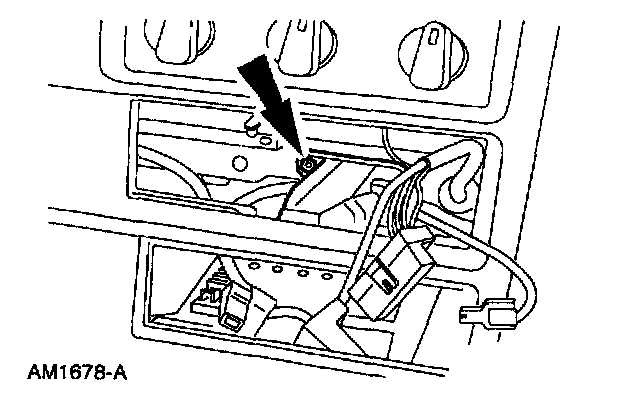

3. If equipped, remove the CD player.

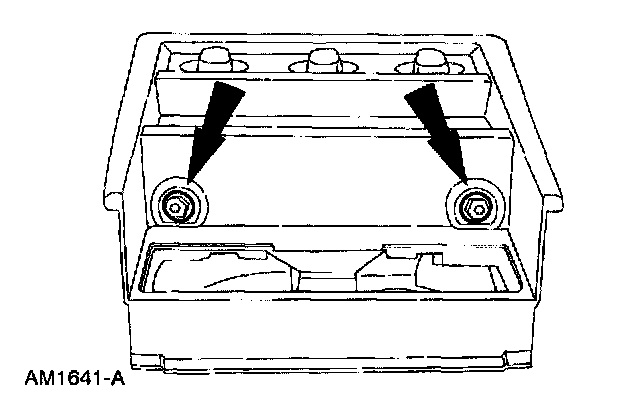

4. Remove the instrument panel center finish panel screws.

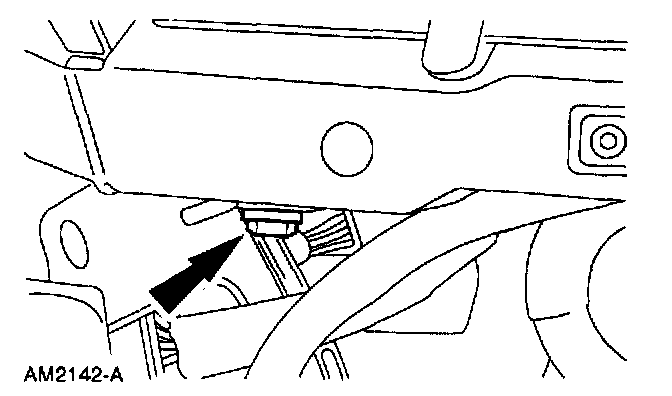

5. Remove the instrument panel center finish panel screw.







6. Unsnap and remove the instrument panel center finish panel.

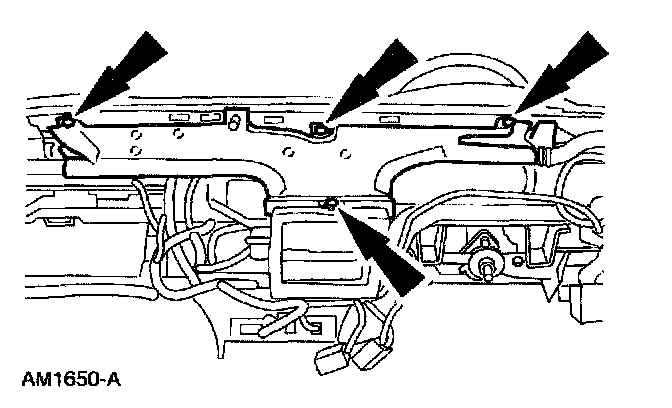

7. Remove the screws and remove the defroster duct.







8. Remove the screw.







9. Remove the screws and remove the plenum chamber.

INSTALLATION
1. To install, reverse the removal procedure.
