Instrument Cluster - Replacement

REMOVAL
1. Disconnect the battery ground cable.

CAUTION:
^ Prior to removal of the module, it is necessary to upload module configuration information to New Generation STAR (NGS) Tester. This information needs to be downloaded into the new module once installed.
^ Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

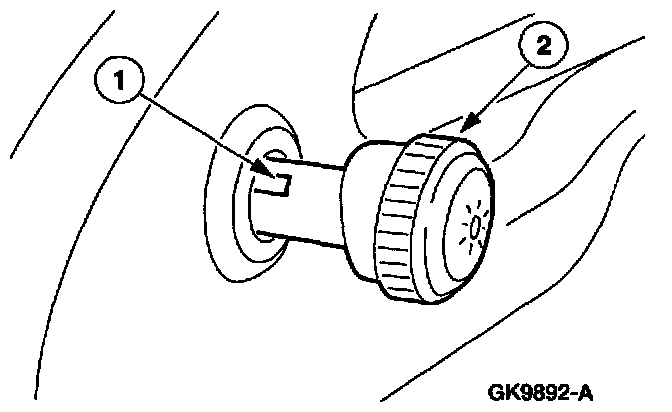

2. Remove the headlamp switch Knob.
1. Pull out the headlamp switch knob and insert a thin tool in the slot to release the knob from the shaft.
2. Remove the headlamp switch knob.

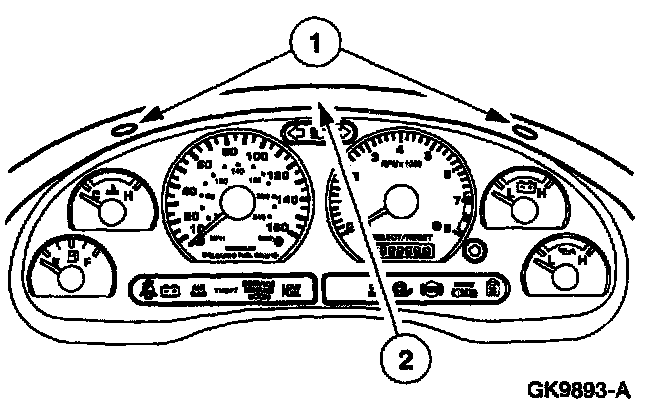

3. Remove the instrument cluster finish panel.
1. Remove the screws.
2. Remove the instrument cluster finish panel.

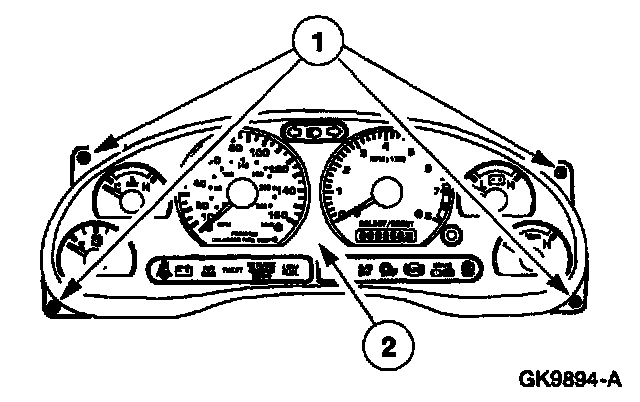

4. Pull the instrument panel forward to expose the electrical connector.
1. Remove the screws.
2. Pull the instrument panel forward to expose the electrical connector.

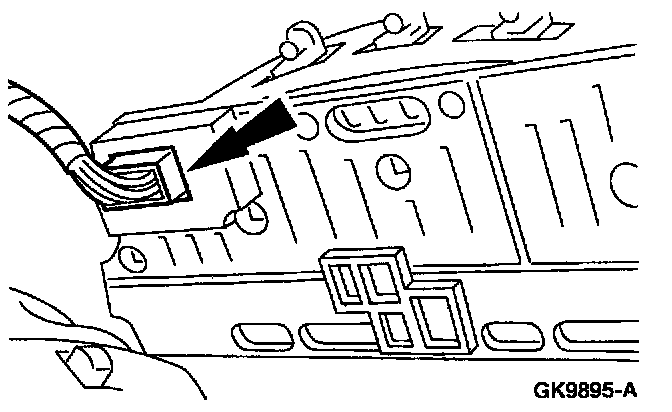

5. Disconnect the electrical connector and remove the instrument cluster.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the NGS Tester into the new module.
