Supplemental Restraint System (SRS)

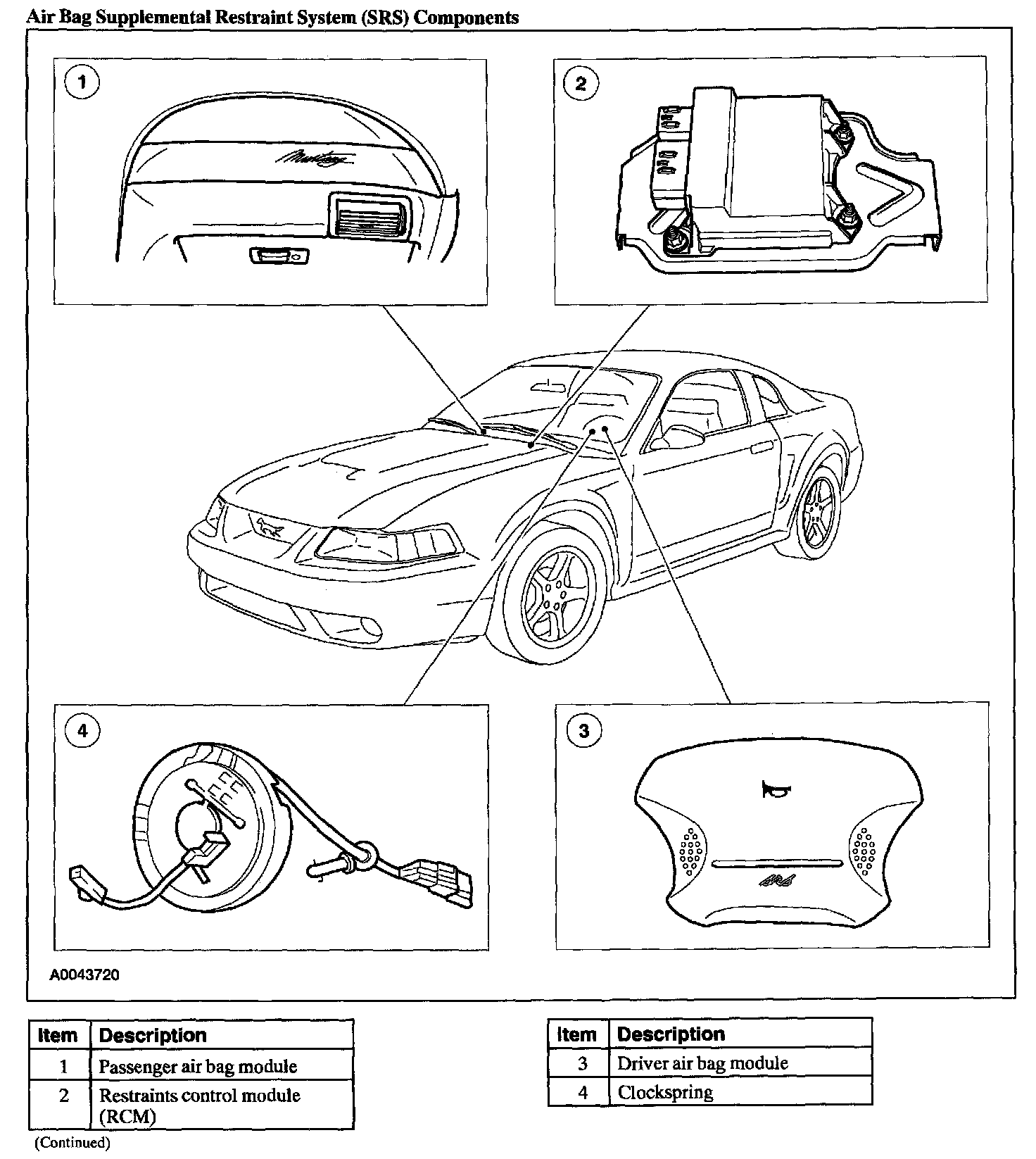

Air Bag Supplemental Restraint System (SRS) Components:

The air bag Supplemental Restraint System (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the three-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantages of the SRS.

Electrical System
The electrical system that supports the air bag supplemental restraint system:
- is powered from the battery through the ignition circuit.
- provides the electrical path from the Restraints Control Module (RCM) to the air bag modules.
- provides the electrical path from the RCM to the air bag indicator.
- provides the electrical path from the RCM to the Data Link Connector (DLC).
- provides the electrical path from the RCM to the Generic Electronic Module (GEM).

Sensor

WARNING: The restraints control module (RCM) orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags have deployed. In addition, make sure the area of the RCM mounting is restored to its original condition.

The SRS contains two sensors which are integral to the RCM. The RCM is mounted on the center tunnel under the instrument panel.
