Description

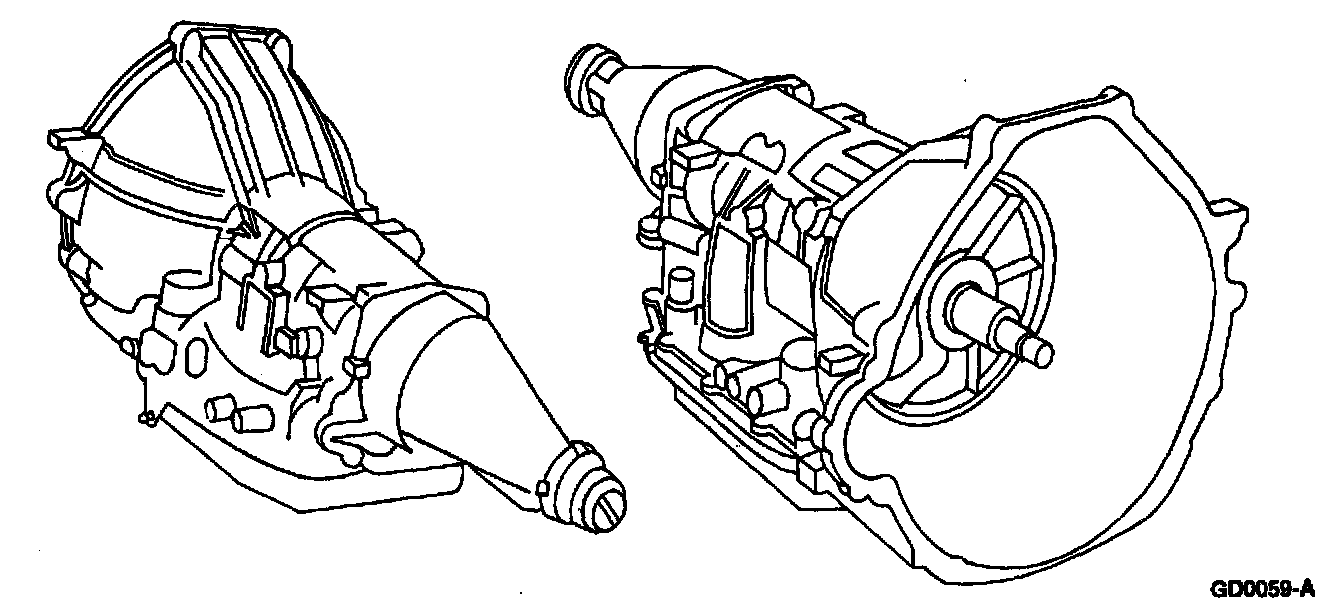

The 4R70W has the following features:
^ Wide ratio gears Four speeds Rear wheel drive
^ Automatic
^ Electronic shift
Torque converter clutch control
^ Line pressure controls

The transmission uses Ravigneaux-style double-pinion gearset with two bands, one one-way roller clutch, one mechanical diode and four friction clutches to produce four forward gears and Reverse.
