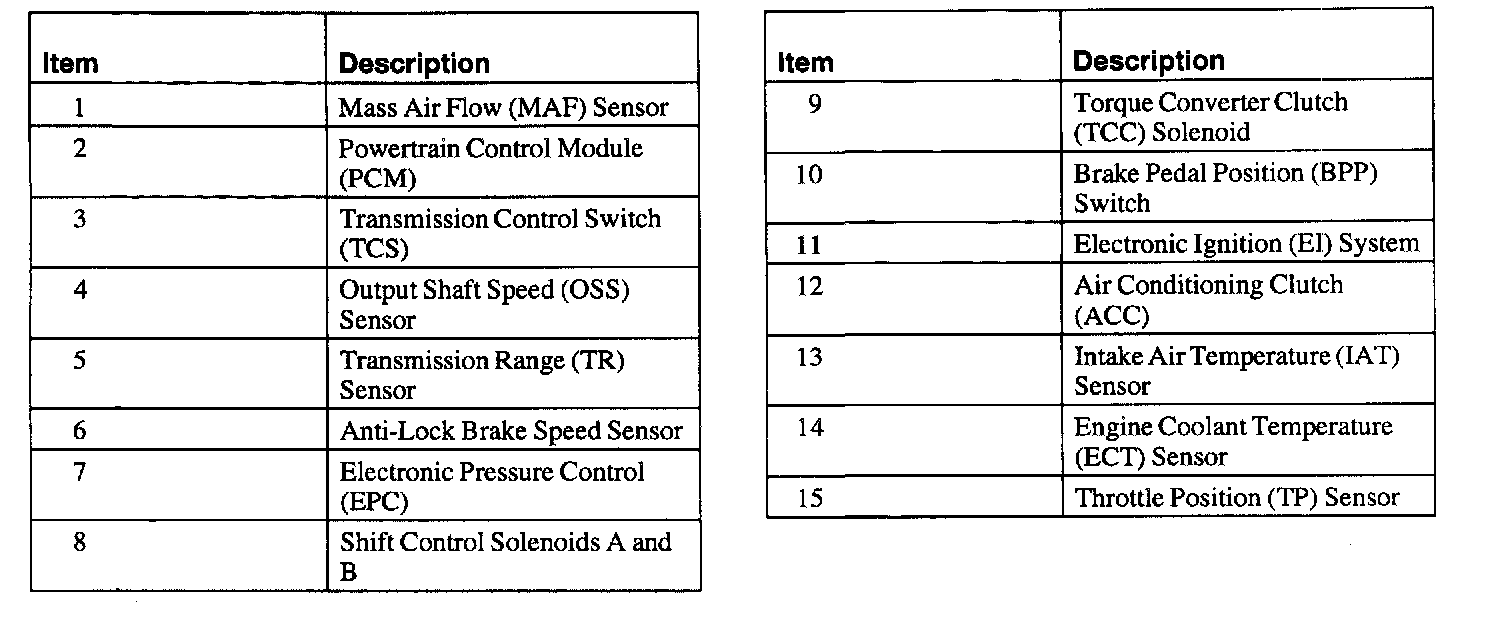

Electronic Control Components

1 Of 2:

2 Of 2:

Powertrain Control Module (PCM)
The operation of the transmission is controlled by the powertrain control module. Many input sensors provide information to the PCM. The PCM then controls actuators which determine transmission operation.

Air Conditioning (A/C) Clutch
An electromagnetic clutch is energized when the clutch cycling pressure switch closes. The switch is located on the suction accumulator/drier. The closing of the switch completes the circuit to the clutch and draws it into engagement with the compressor driveshaft. When the A/C clutch is engaged, Electronic Pressure Control (EPC) is adjusted by the PCM to compensate for additional load on the engine.

Brake Pedal Position (BPP) Switch
The brake pedal position (BPP) switch tells the PCM when the brakes are applied. The torque converter clutch disengages when the brakes are applied. The BPP switch closes when the brakes are applied and opens when they are released.

Engine Coolant Temperature (ECT) Sensor
The engine coolant temperature (ECT) sensor detects temperature of engine coolant and supplies the information to the powertrain control module. The ECT sensor is used to control torque converter clutch (TCC) operation. The ECT is installed in the heater outlet fitting or cooling passage on the engine. For engine control applications, the ECT signal is used to modify ignition timing, EGR flow and air-to-fuel ratio as a function of engine coolant temperature.

Electronic Ignition (EI) System
The electronic ignition consists of a crankshaft position sensor, two four tower ignition coils and the powertrain control module. The ignition control module operates by sending crankshaft position information from the crankshaft position sensor to the ignition control module. The ignition control module generates a Profile Ignition Pickup (PIP) signal (engine rpm) and sends it to the PCM. The PCM uses PIP signal in the transmission strategy, Wide-Open Throttle (WOT) shift control, torque converter clutch control and EPC pressure.

Intake Air Temperature (IAT) Sensor
The intake air temperature (IAT) sensor provides the Sequential fuel injection (SFI) system mixture temperature information. The IAT sensor is used both as a density corrector for air flow calculation and to proportion cold enrichment fuel flow. The IAT sensor is installed in the air cleaner outlet tube. The IAT sensor is also used in determining EPC pressures.

Mass Air Flow (MAF) Sensor
The mass air flow sensor (MAF) measures the mass of air flowing into the engine. The MAF sensor output signal is used by the powertrain control module to calculate injector pulse width. For transmission strategies the mass air flow sensor is used to regulate EPC, shift and torque converter clutch scheduling.

Transmission Control Switch (TCS) and Transmission Control Indicator Lamp (TCIL)
The transmission control switch (TCS) is a momentary contact switch. When the switch is pressed, a signal is sent to the powertrain control module to allow automatic shifts from first through fourth gears or first through third gears only. The PCM energizes the transmission control indicator lamp (TCIL) when the switch is off. The TCIL indicates overdrive cancel mode activated (lamp on) and EPC circuit shorted (lamp flashing) or monitored sensor failure.

Throttle Position (TP) Sensor
The throttle position (TP) sensor is a potentiometer mounted on the throttle body. The TP sensor detects the position of the throttle plate and sends this information to the PCM. The TP sensor is used for shift scheduling, electronic pressure control and TCC control.

Digital Transmission Range Sensor
The digital Transmission Range (TR) sensor is located on the outside of the transmission at the manual lever. The digital sensor completes the start circuit in PARK and NEUTRAL, the back-up lamp circuit in REVERSE. The digital sensor also opens/closes a set of four switches that are monitored by the PCM to determine the position of the manual lever (P, R, N, D, 2, 1).

Output Shaft Speed (OSS) Sensor
The output shaft speed (OSS) sensor is a magnetic pickup, located at the output shaft ring gear, that sends a signal to the powertrain control module to indicate transmission output shaft speed. The OSS is used for torque converter clutch control, shift scheduling and to determine electronic pressure control.

Electronic Pressure Control (EPC) Solenoid
The EPC solenoid regulates transmission pressure. EPC valve pressure is used to control line pressure.

Torque Converter Clutch (TCC) Solenoid
The TCC solenoid is used to control the apply and release of the TCC.

Shift Solenoid-SSA, SSB
Two on/off shift solenoids provide gear selection of first through fourth gears by controlling the pressure to the three shift valves. One unit containing the two shift solenoids is located in the main control valve body. The shift solenoids are two-way normally open style.








Transmission Fluid Temperature (TFT) Sensor
The transmission fluid temperature (TFT) sensor is located on the lead frame assembly near the shift solenoids on the main control valve body. It is a temperature sensitive device called a thermistor. It sends a voltage signal to the PCM. The voltage signal varies with transmission fluid temperature. The PCM uses this signal to determine whether a cold start shift schedule is necessary. The shift schedule is compensated when the transmission fluid temperature is cold. The PCM also inhibits TCC operation at low transmission fluid temperatures and corrects electronic pressure control.

Anti-Lock Brake Speed (ABS) Sensor
The Programmable Speedometer/Odometer Module (PSOM) receives input from the rear brake anti-lock sensor. After processing the signal, the PSOM relays it to the PCM and the speed control module.
