Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Remove the LF wheel and tire.
2. Position the front portion of the LF inner splash shield aside

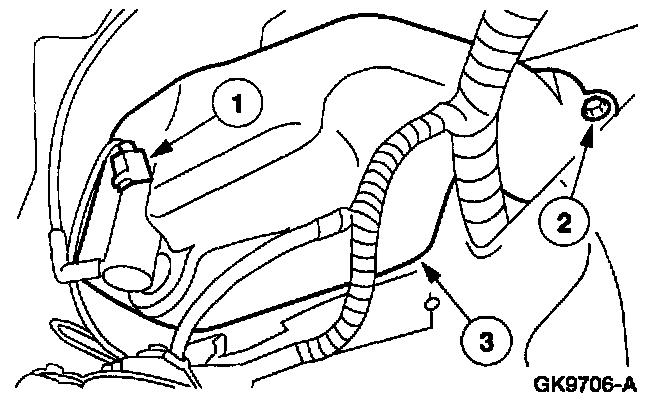

3. Position windshield washer reservoir aside.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Position windshield washer reservoir aside.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL, WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before removal.







4. Remove the washer fluid reservoir.
^ Disconnect the windshield washer pump hose.

INSTALLATION







1. To install, reverse the removal procedure.
^ Fill the windshield washer reservoir.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL, WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

CAUTION: Do not operate the windshield washer pump prior to filling the windshield reservoir.
