System Diagram

Diagram 25-1:

A/C Clutch Diode
A/C Clutch Field Coil
A/C Clutch Relay
Battery Junction Box
Fuse 27
Fuse 9
High Speed Cooling Fan
Low Speed Cooling Fan

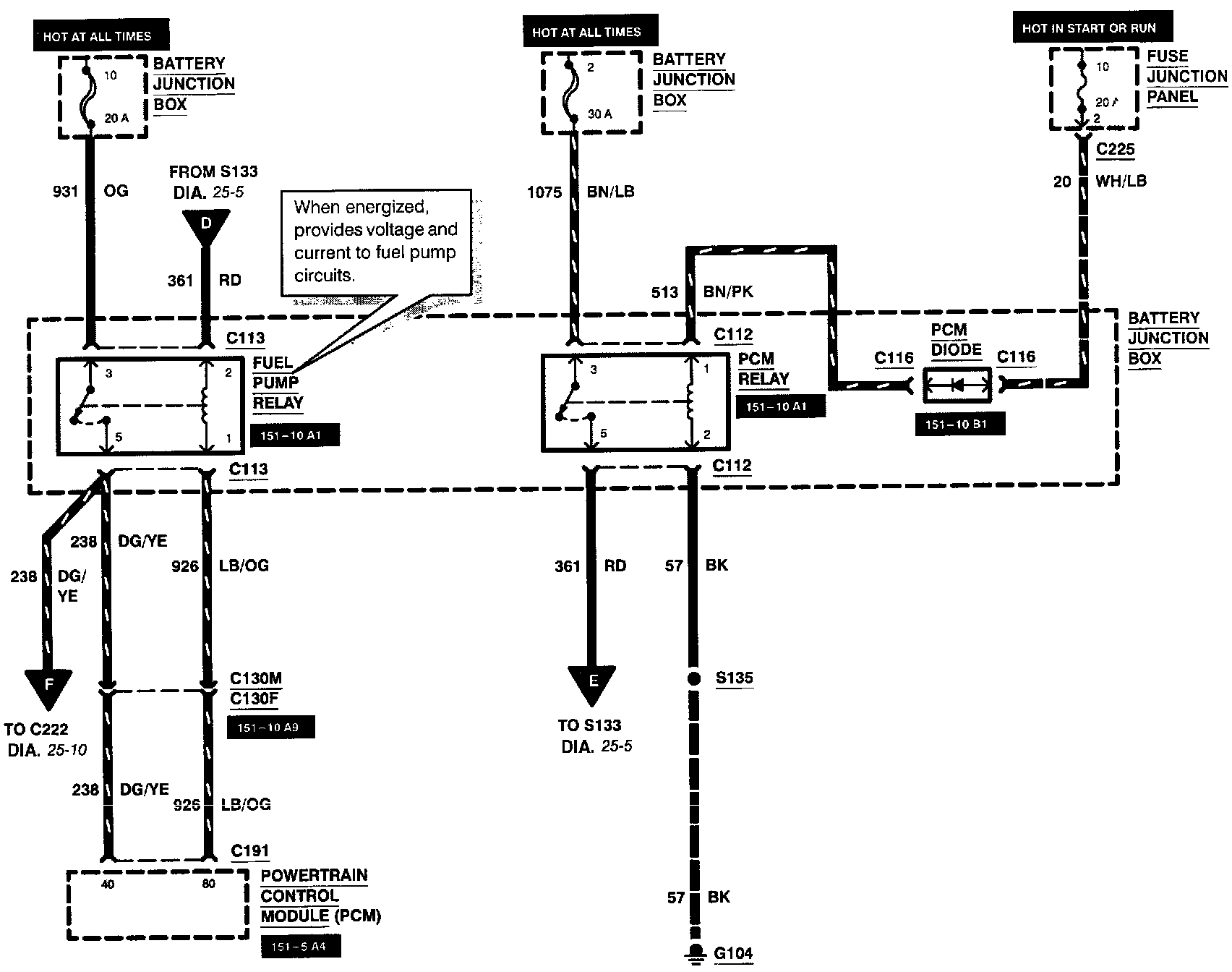

Diagram 25-2:

Battery Junction Box
Fuel Pump Relay
Fuse 2
Fuse 10
Fuse Junction Panel
Powertrain Control Diode
Powertrain Control Module Relay

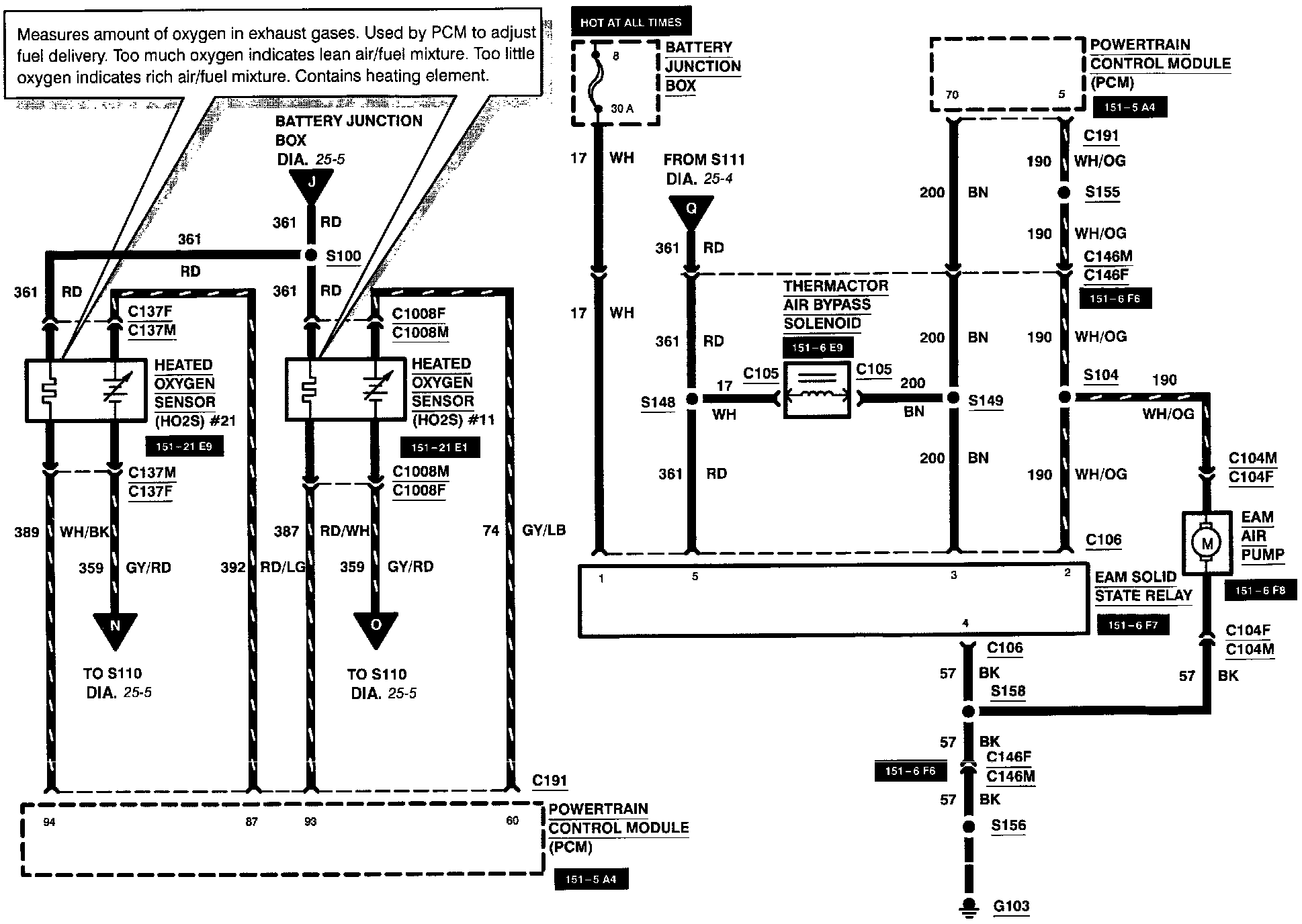

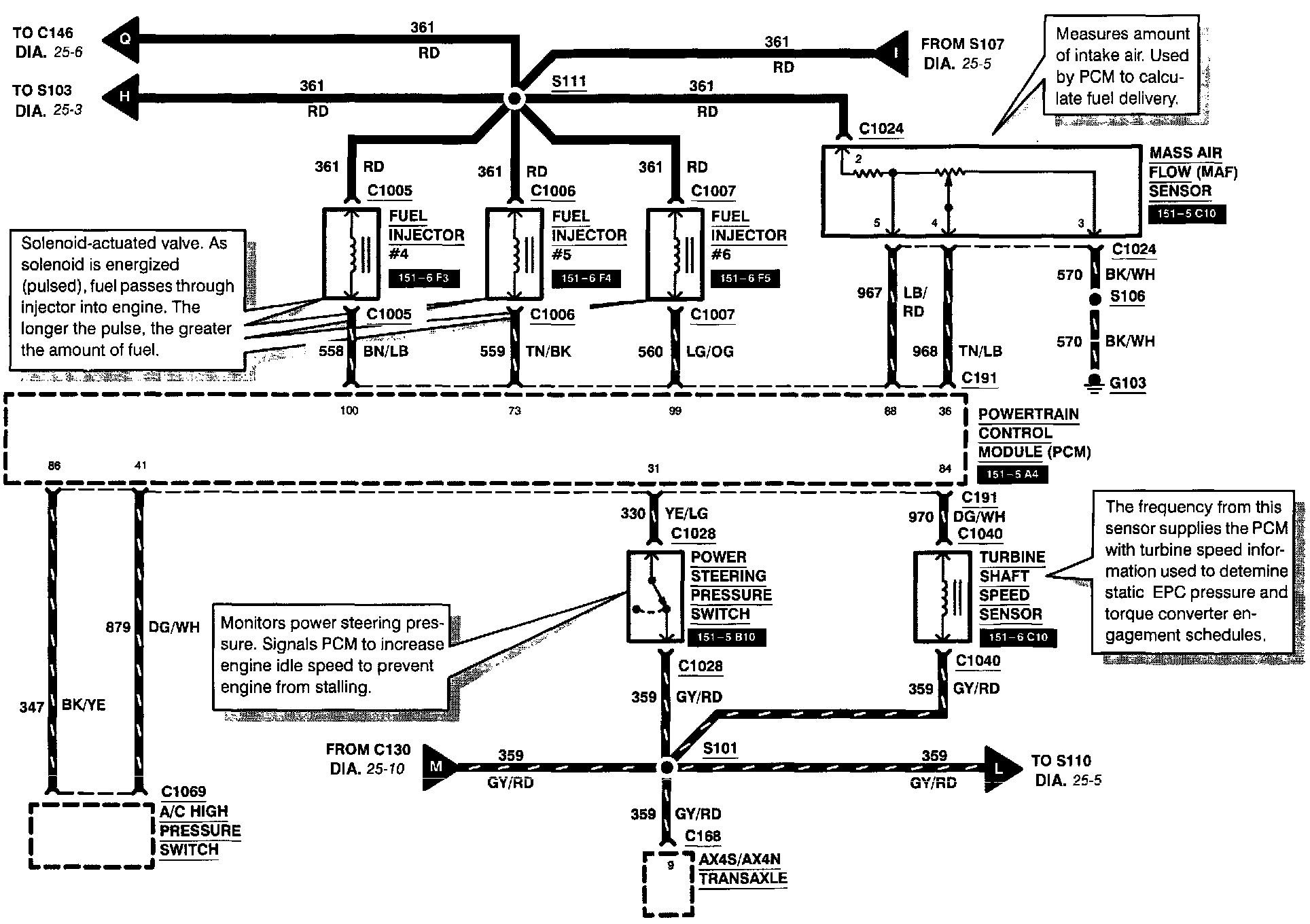

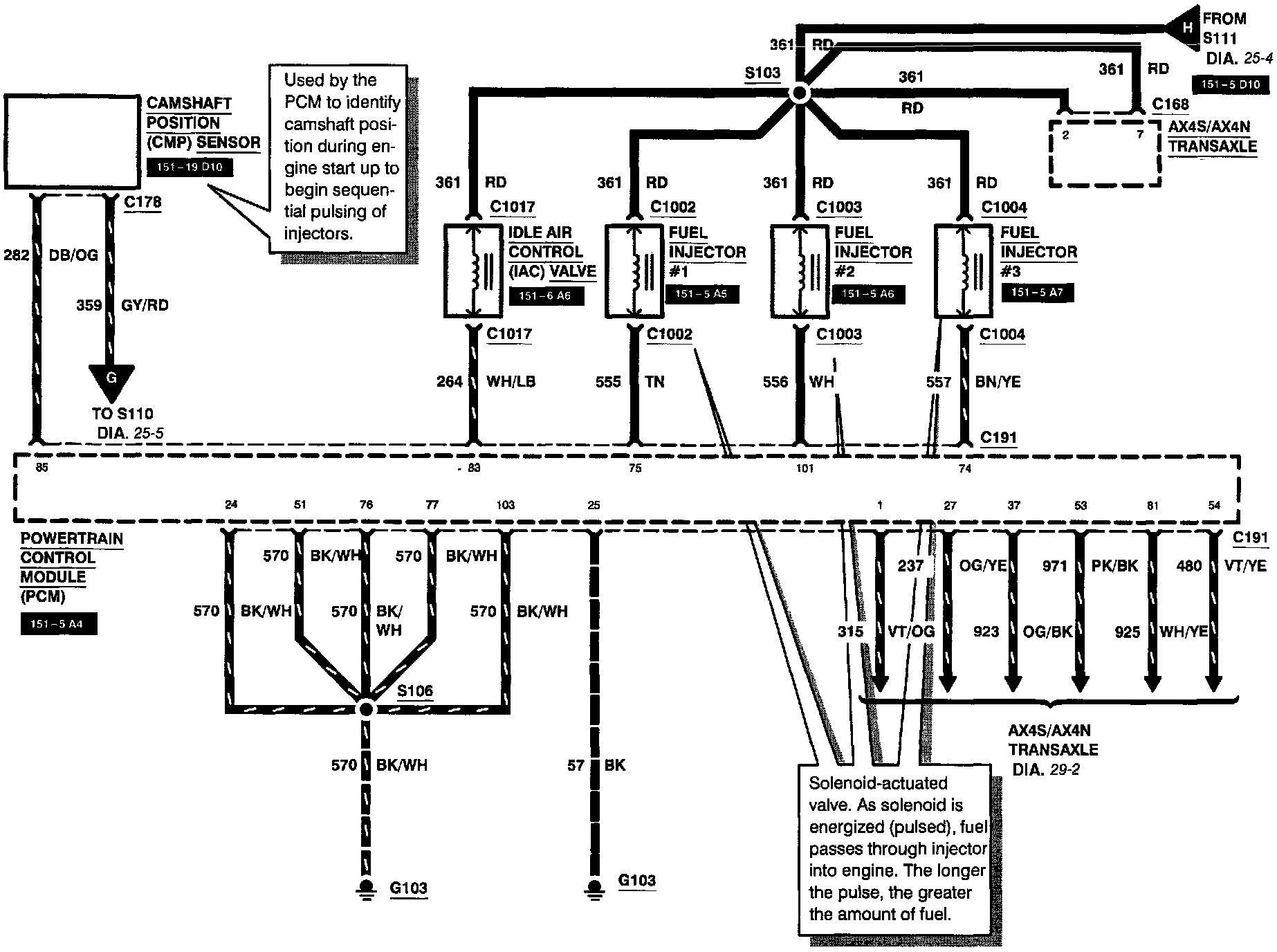

Diagram 25-6:

Battery Junction Box
Electronic Air Management Air Pump
Electronic Air Management Solid State Relay
Fuse 8
Heated Oxygen Sensor # 11
Heated Oxygen Sensor # 21
Thermactor Air Bypass Solenoid

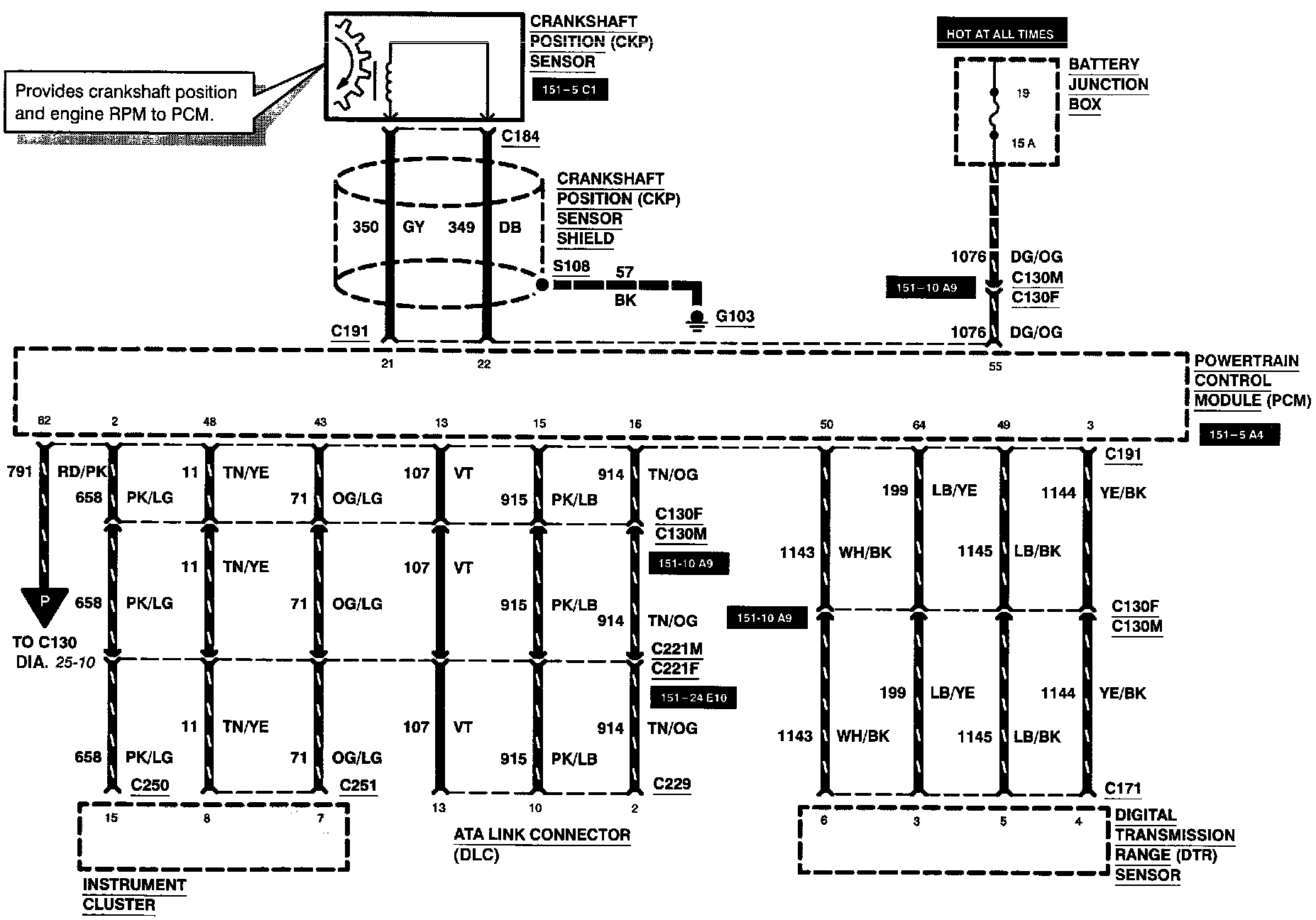

Diagram 25-7:

Battery Junction Box
Crankshaft Position Sensor
Crankshaft Position Sensor Shield
Fuse 19
Powertrain Control Module

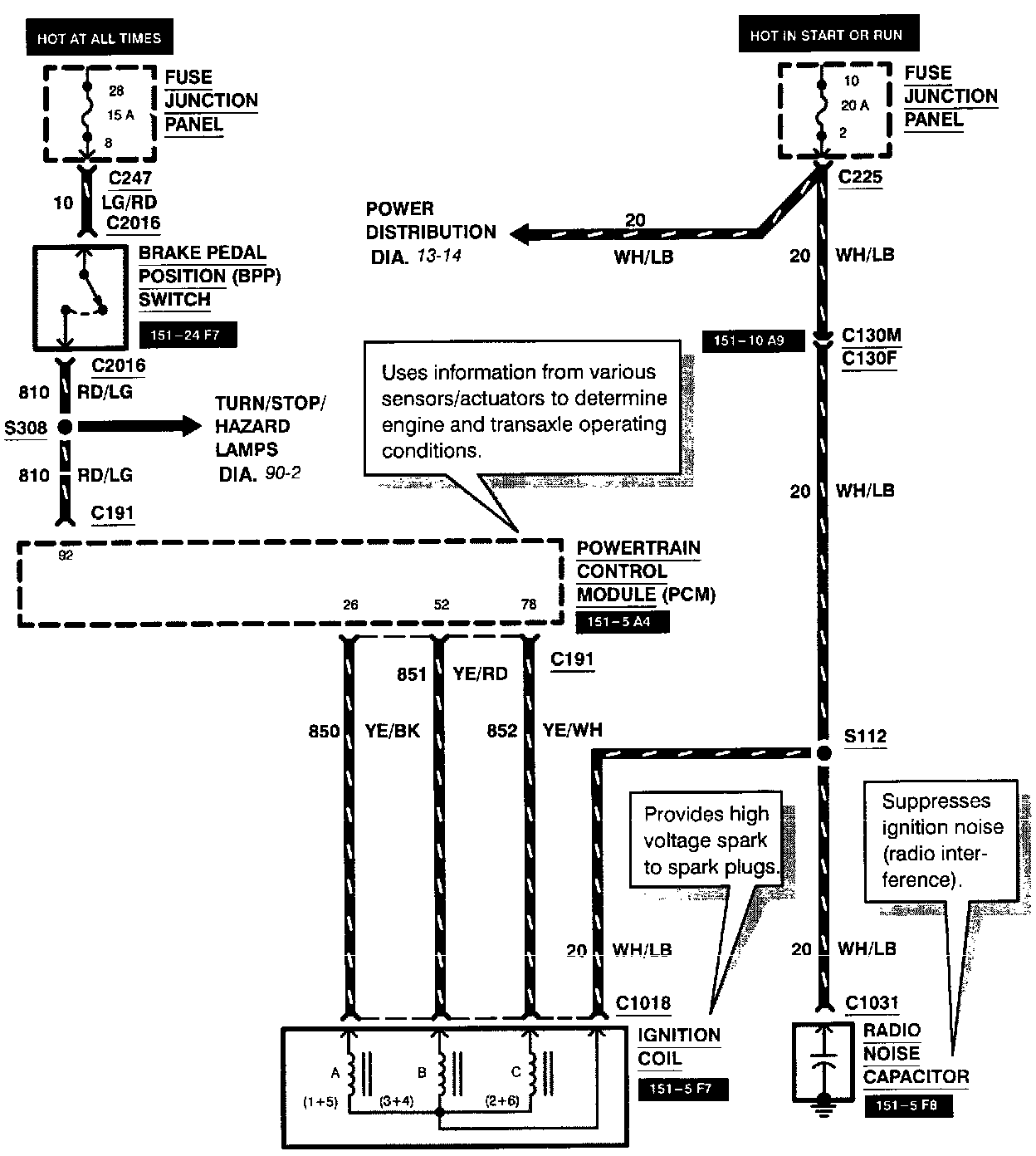

Diagram 25-8:

Brake Pedal Position Switch
Fuse 10
Fuse 28
Fuse Junction Panel
Powertrain Control Module

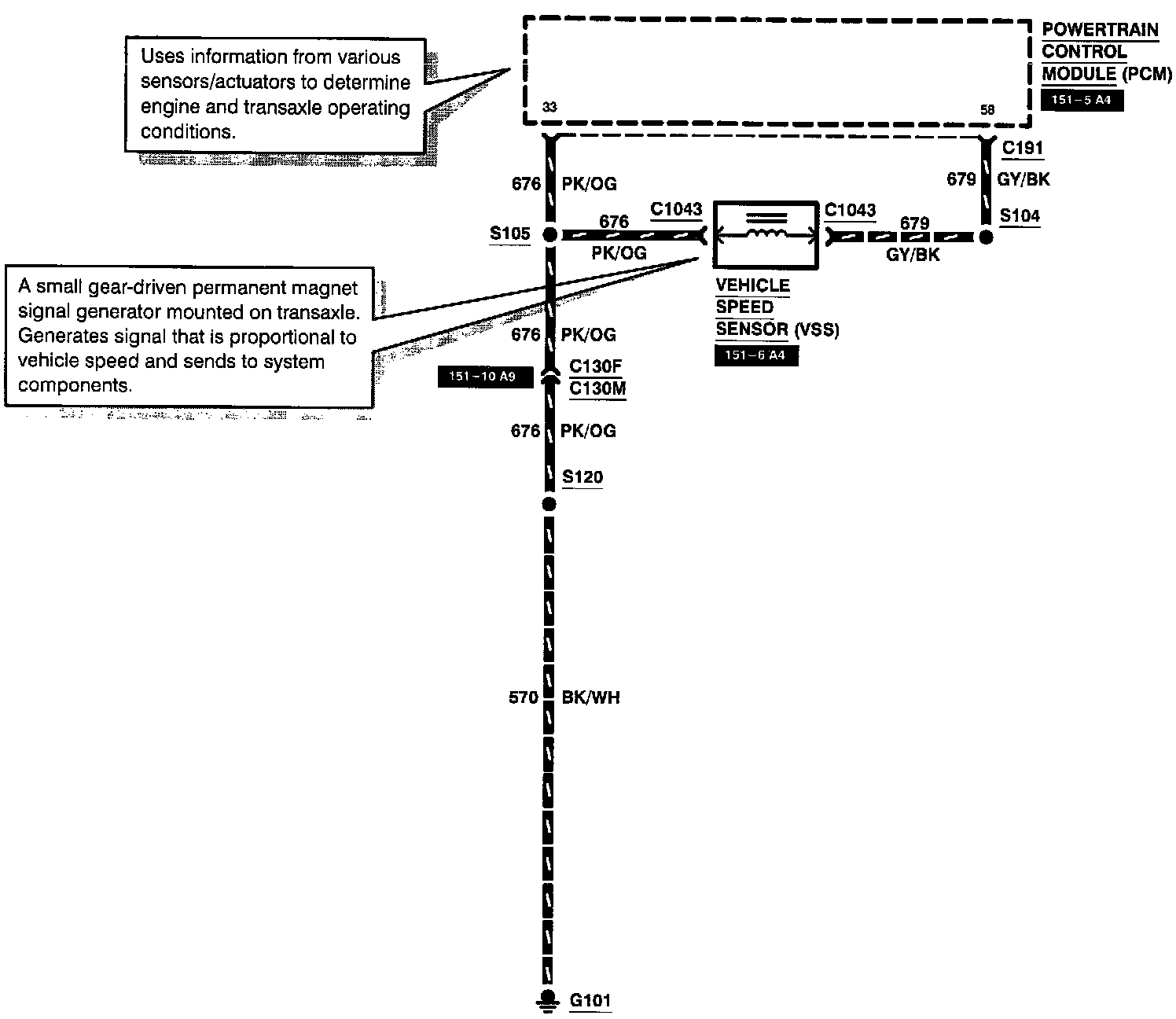

Diagram 25-9:

Powertrain Control Module
Vehicle Speed Sensor

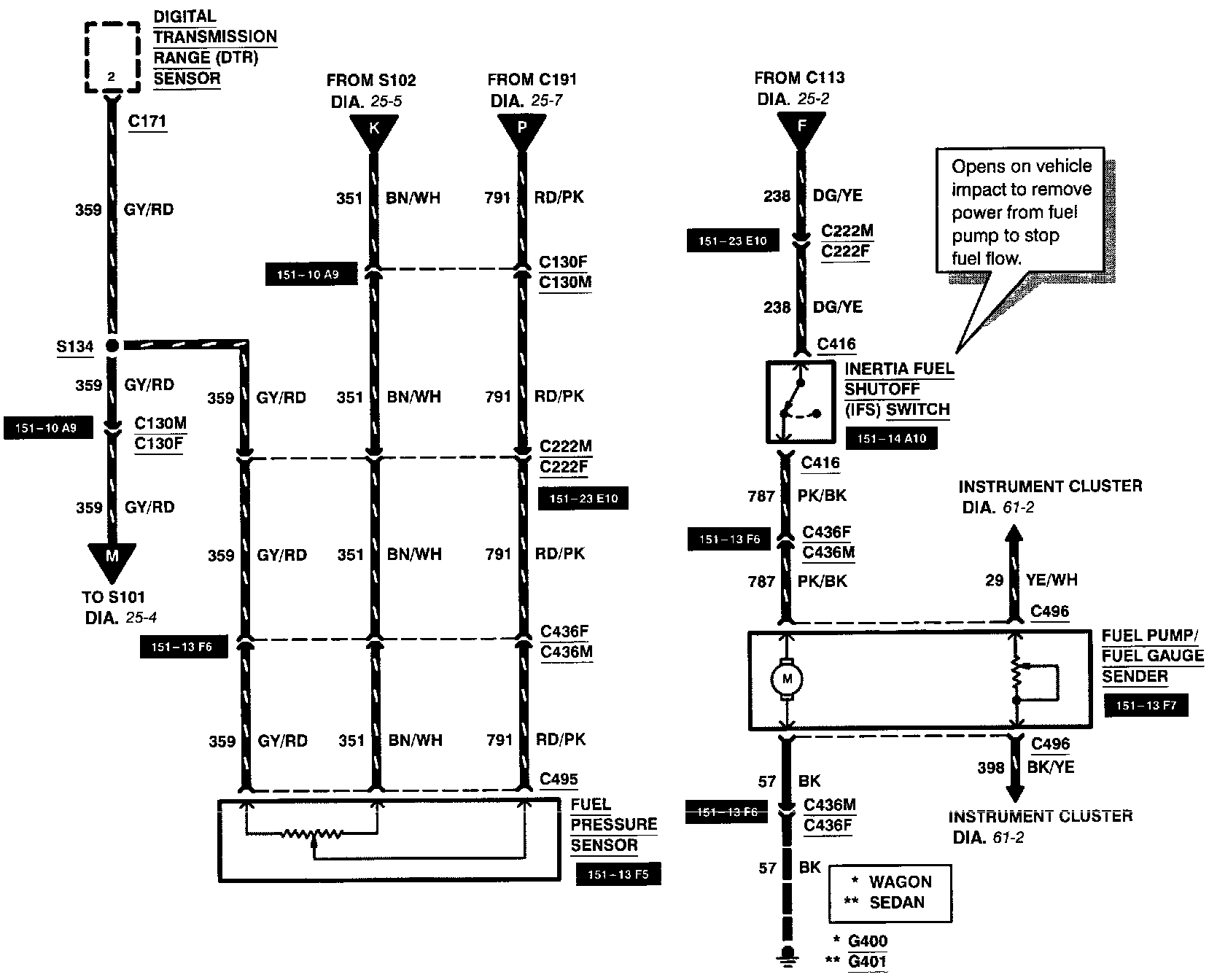

Diagram 25-10:

Digital Transmission Range Sensor
Fuel Pump/Fuel Gauge Sender
Inertia Fuel Shutoff Switch
