Transmission Temperature Sensor/Switch, A/T
>>
Temperature Sensor, Transmission Control
Temperature Sensor, Transmission Control

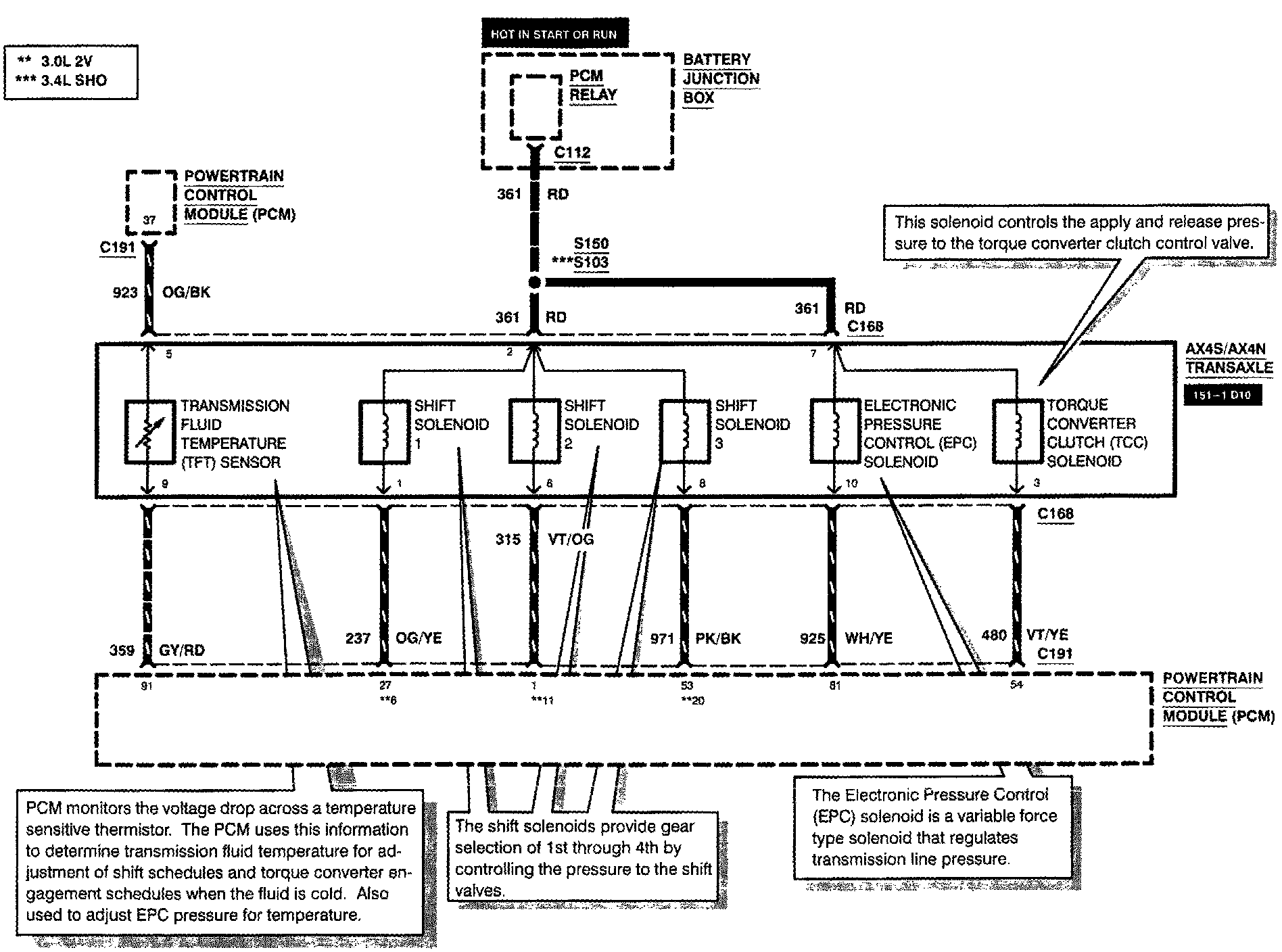

Diagram 29-2:
