Instrument Cluster

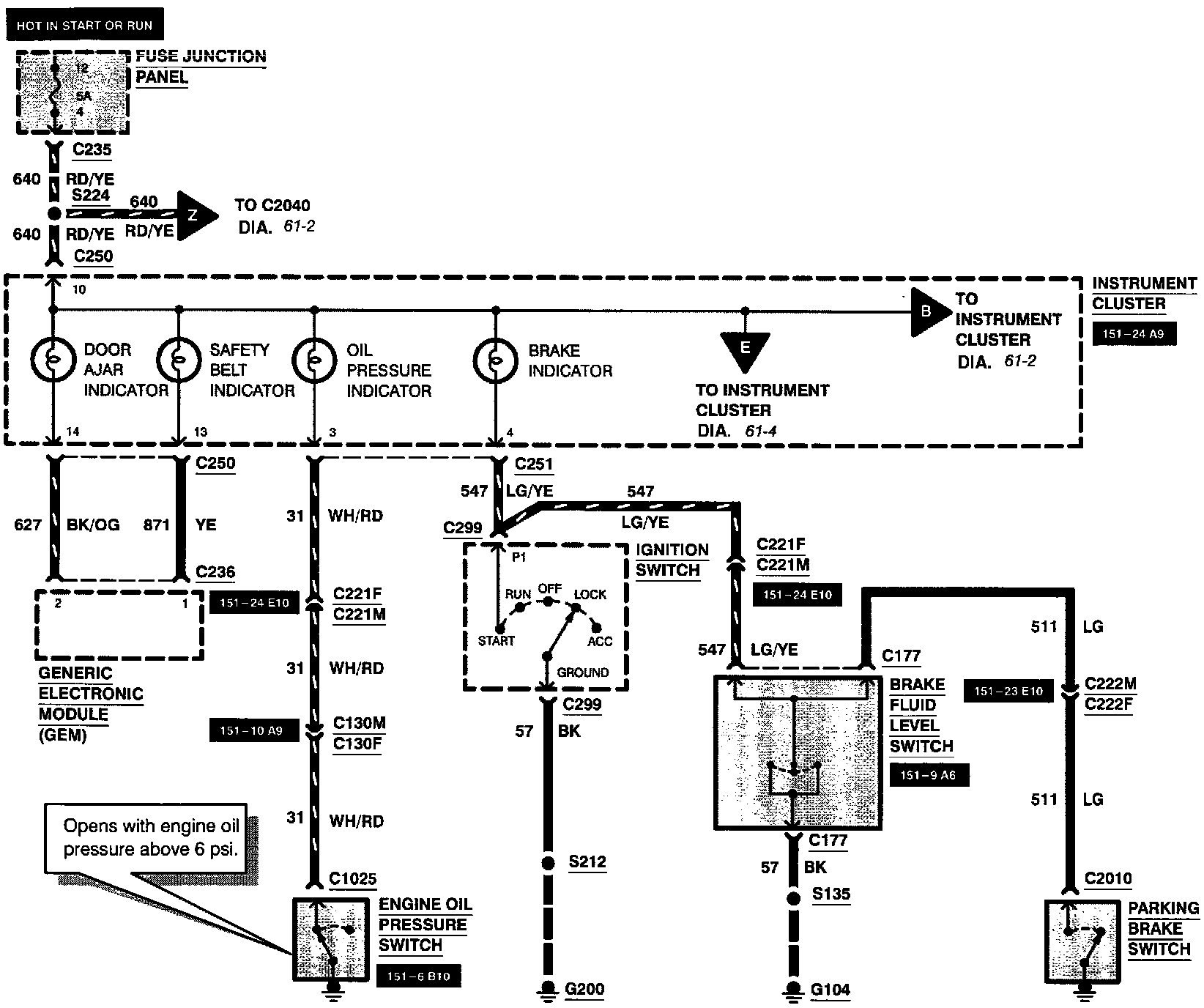

Diagram 61-1:

Brake Fluid Level Switch
Brake Indicator
Door Ajar Indicator
Fuse 12
Fuse Junction Panel
Ignition Switch
Oil Pressure Indicator
Safety Belt Indicator

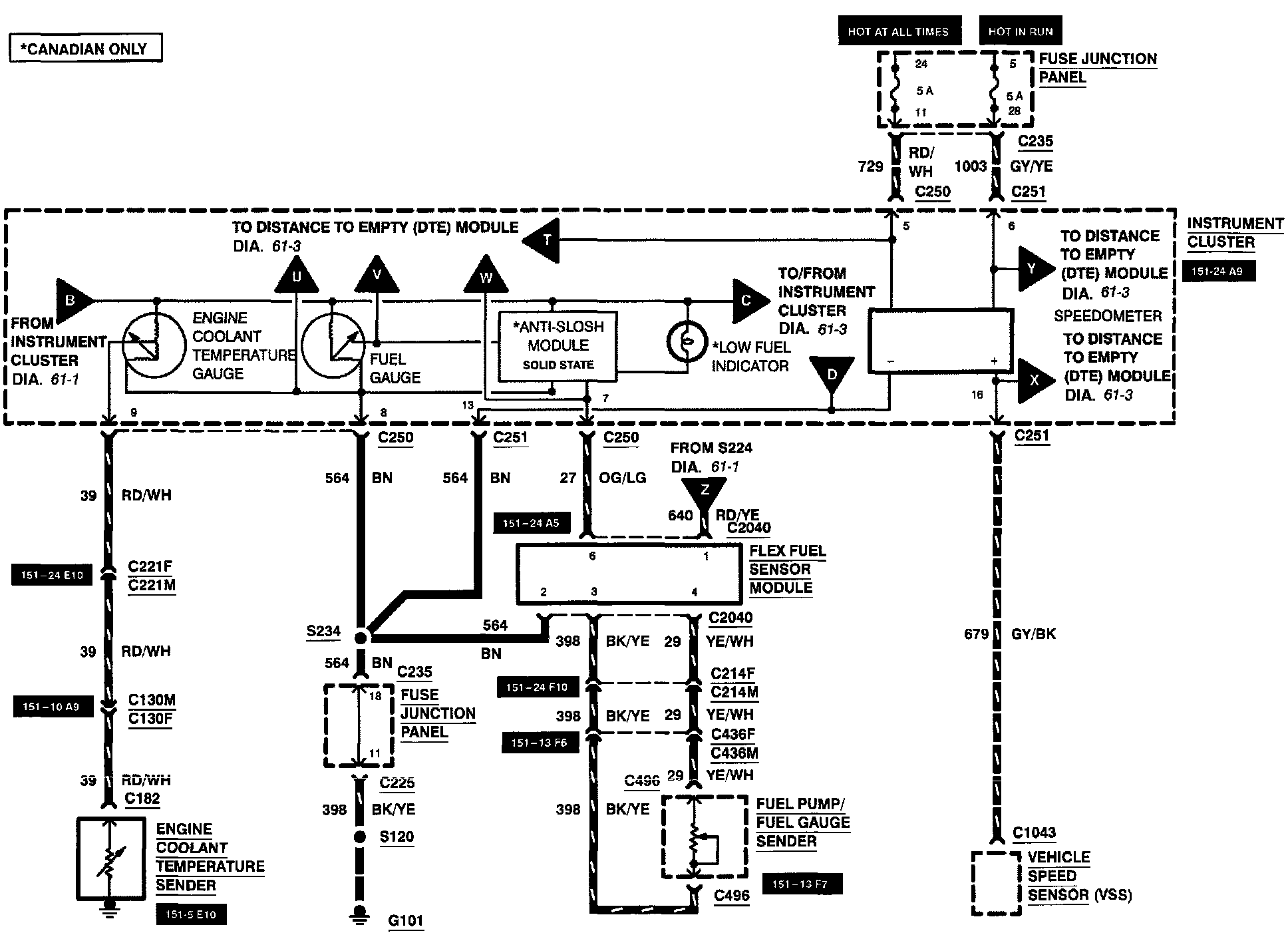

Diagram 61-2:

Engine Coolant Temperature Gauge
Flex Fuel Sensor Module
Fuel Gauge
Fuse 24
Fuse 5
Fuse Junction Panel
Low Fuel Indicator
Speedometer

Diagram 61-3:

Check Engine Indicator
Head Lamp Switch
Powertrain Control Module
Tachometer

Diagram 61-4:

Air Bag Indicator
Anti-Lock Brake Indicator
Cruise Set Indicator
Fuse 11
Fuse Junction Panel
Generator Battery Indicator
High Beam Indicator

Diagram 61-5:

Five Back Light Illumination Lamps
Fuse 2
Fuse Junction Panel
Headlamp Switch
Left Turn Indicator
Pulse Width Dimming Module
Right Turn Indicator
Right Turn Indicator
