General Module: Service and Repair

REMOVAL







1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the quarter trim panel.







3. Disconnect the two electrical connectors, the ground strap from the sheet metal and the Remote Anti-theft Personality (RAP) module antenna.

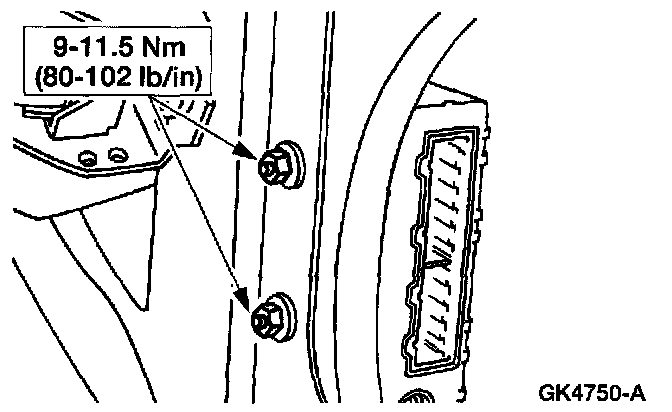

4. Remove the nuts and the RAP module.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.







5. Lift the two tabs and remove the RAP module from the bracket.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: After replacing the Remote Anti-theft Personality module it is necessary to reconfigure the module using the scan tool.
