Radio, Stereo, and Compact Disc: Description and Operation

Audio System Components:

There are three audio systems available:
^ Electronic Search Radio (ESR).
^ Electronic Search Cassette (ESC).
^ Premium ESC with amplifier and Compact Disc changer.

Each radio chassis is part of the Integrated Control Panel (ICP) and cannot be separately repaired. Send the ICP to an authorized Ford audio system repair facility.

All Systems are equipped with four radio speakers.

Radio Frequency Interference Suppression Equipment
The radio ignition interference capacitor reduces interference transmitted through the radio speakers by the engine ignition and electrical system.

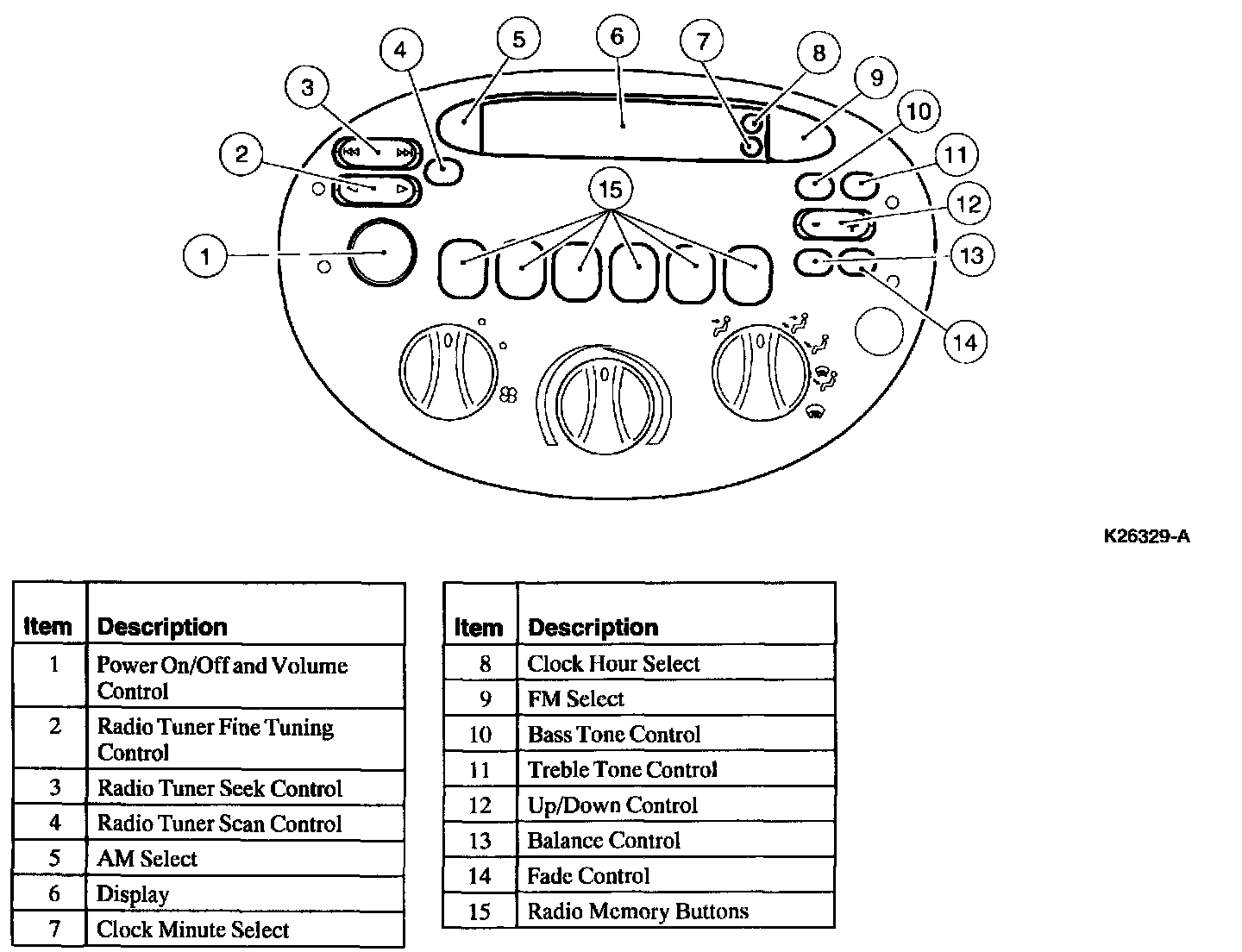

ESR Chassis Controls

Refer to the Owner's Guide for complete electronic search radio (ESR) chassis operating guidelines.







ESC Radio Chassis Controls

Refer to the Owner's Guide for complete ESC radio chassis operating guidelines.

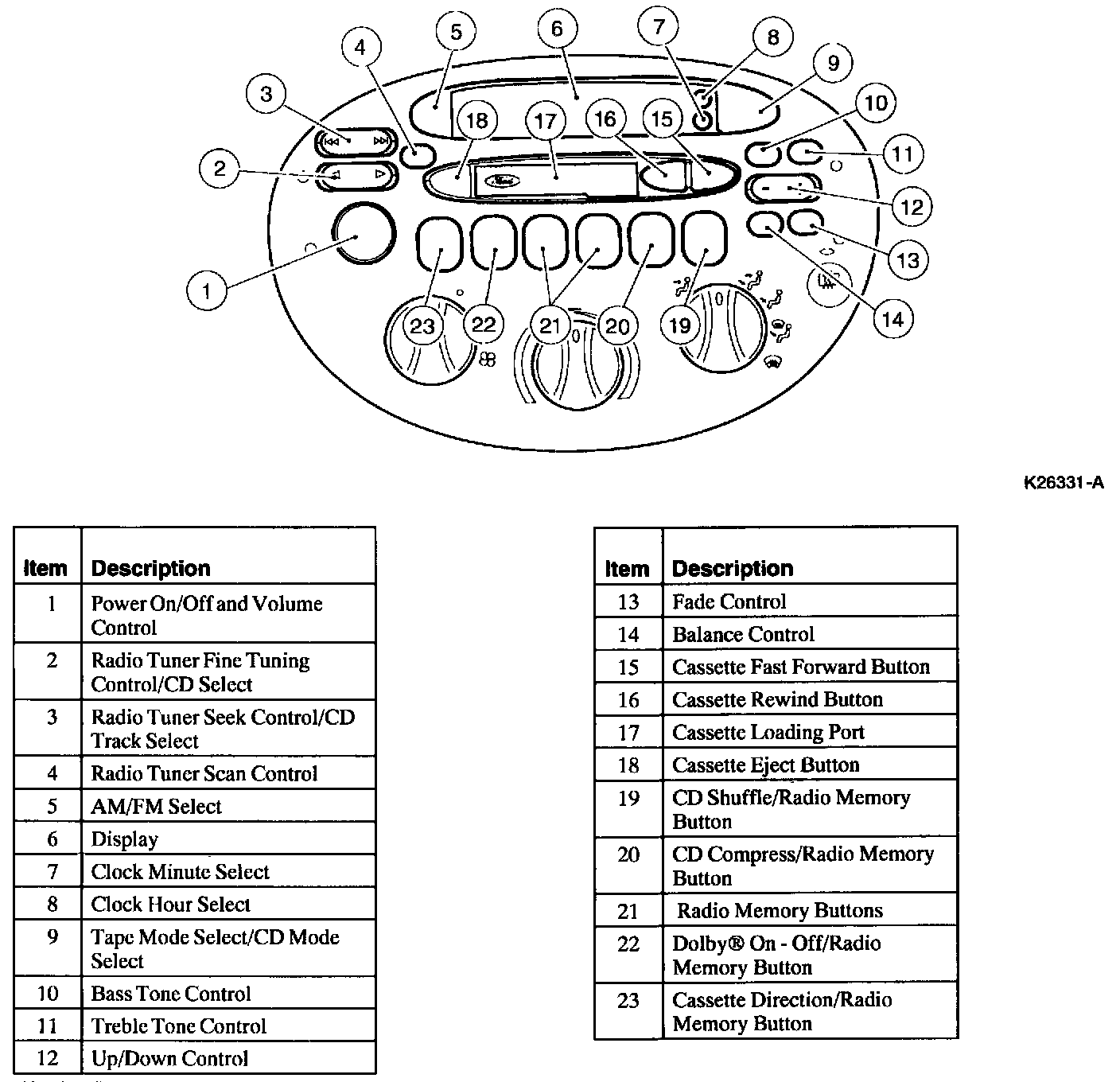

Premium ESC Radio Chassis Controls

Refer to the Owner's Guide for complete premium electronic search cassette (ESC) radio chassis operating guidelines.
