Component Tests and General Diagnostics

1. Key OFF.
2. Remove and disconnect the outside rear view mirror control.

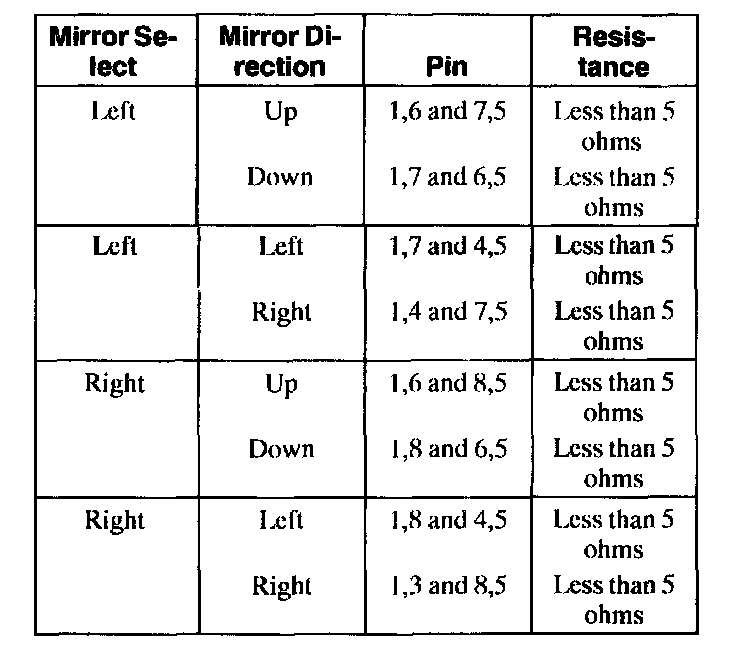

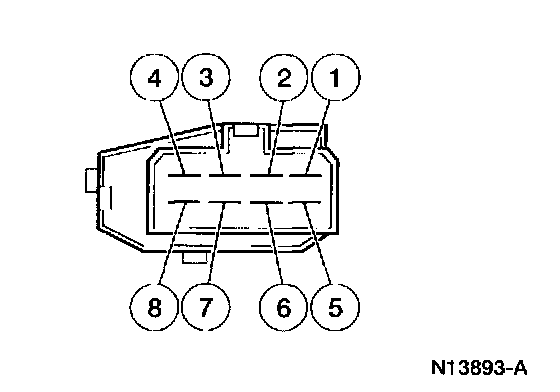

3. Measure the resistance between the terminal pins listed in the test chart.







4. If the outside rear view mirror control fails any of the tests shown in the test chart, replace it. Otherwise, return to the pinpoint tests. Pinpoint Tests
