Rear

1 Of 2:

2 Of 2:

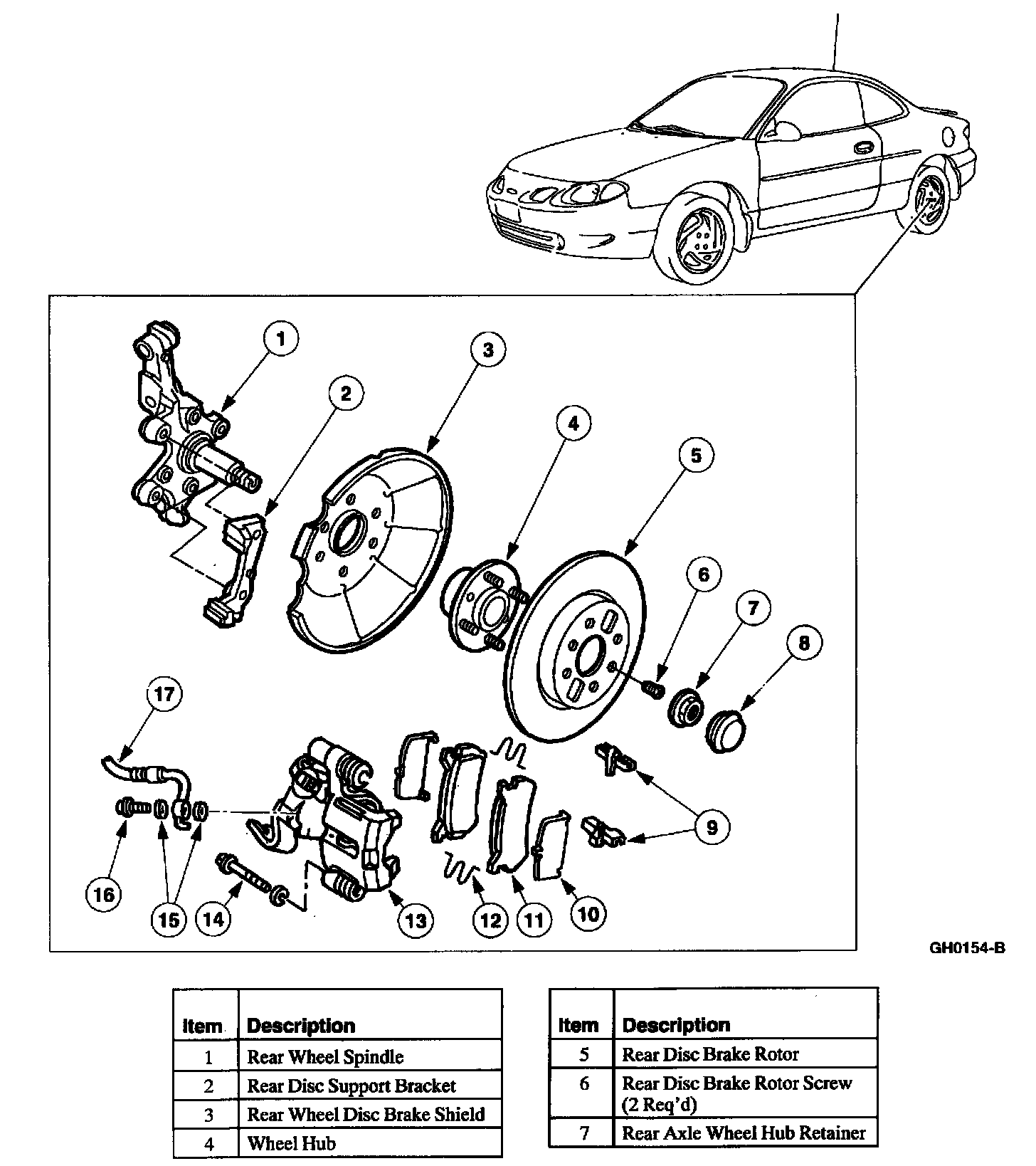

The rear disc brake system consists of solid rear disc brake rotors and single-piston rear disc brake calipers. The brake pads are held in position between the rear disc brake caliper and rear disc brake rotor by two guides, two shims and two M-springs. After initial setting, rear disc brake adjustment is maintained through periodic parking brake operation.
