Connectors

C100-C116:






C117-C132:

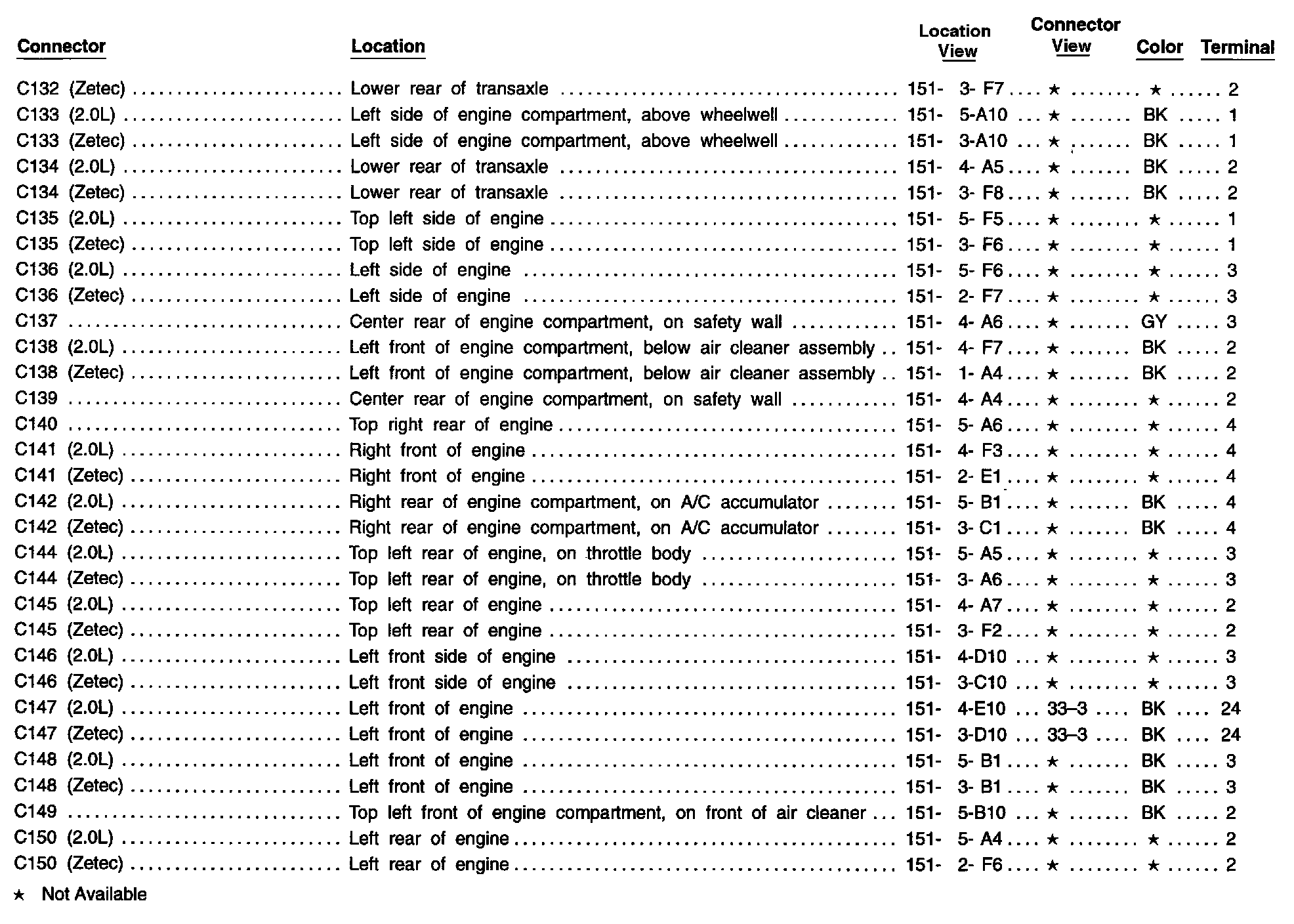

C132-C150:

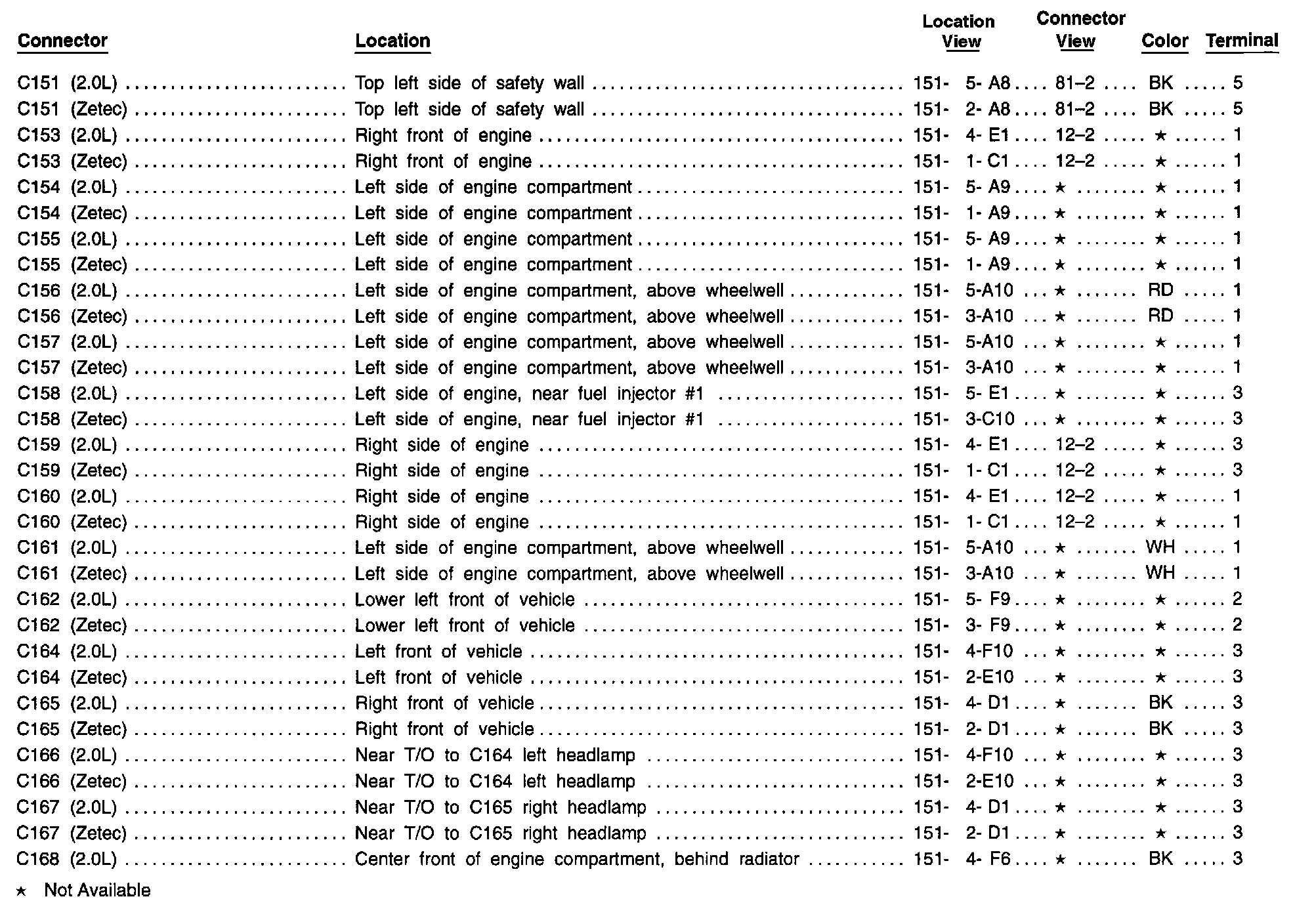

C151-C168:






C168-C188:






C188-C224:

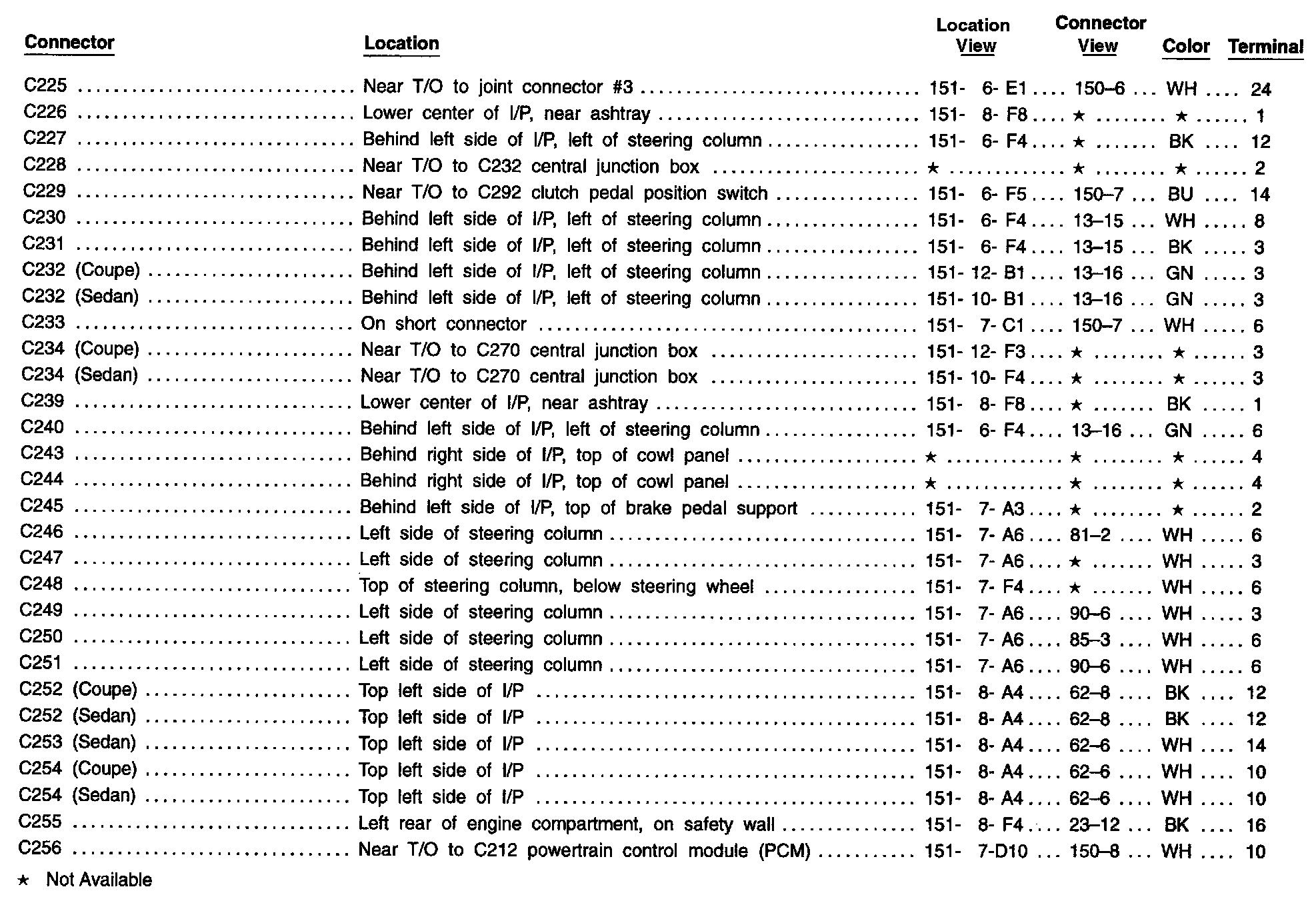

C225-C256:

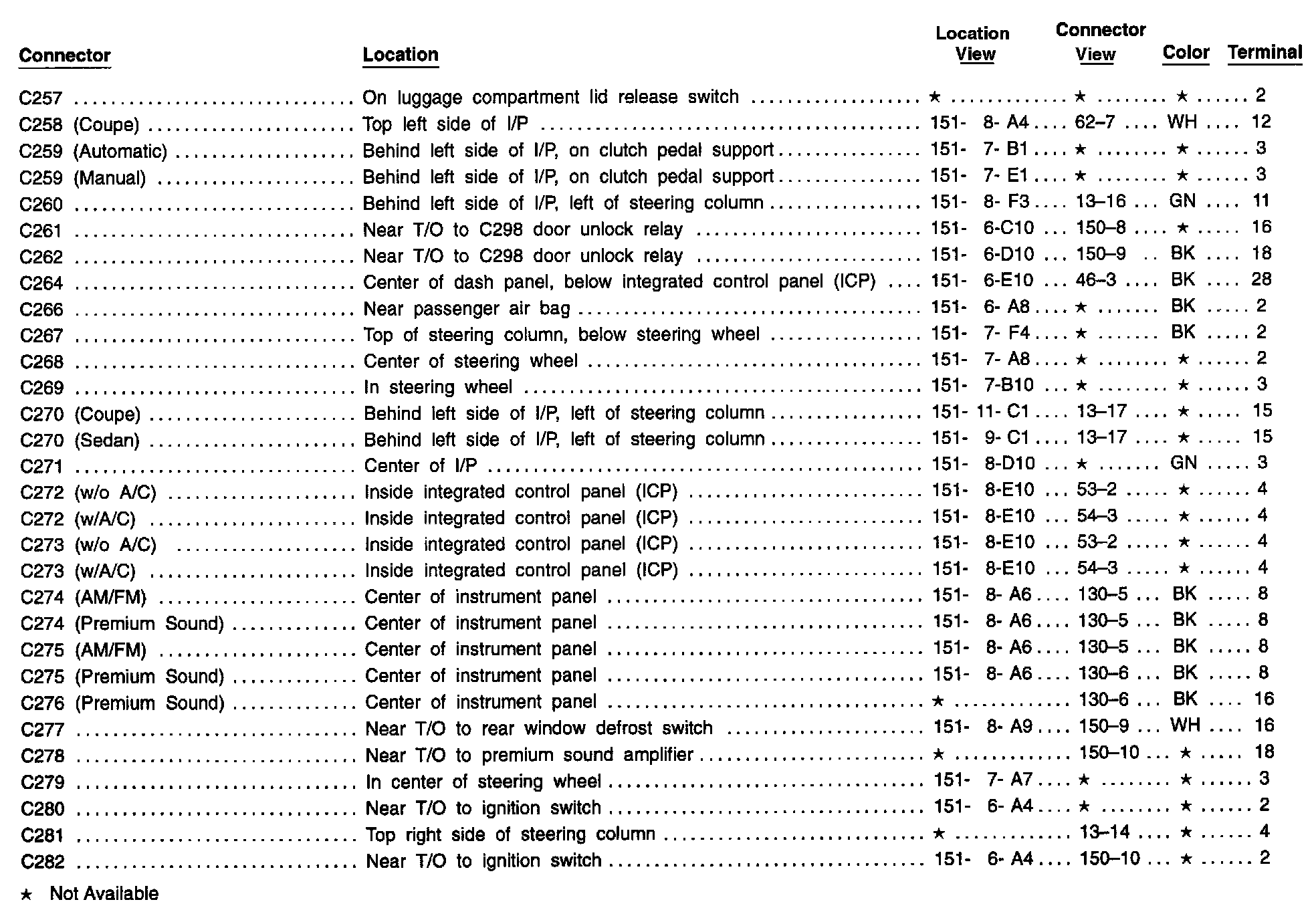

C257-C282:






C283-C315:

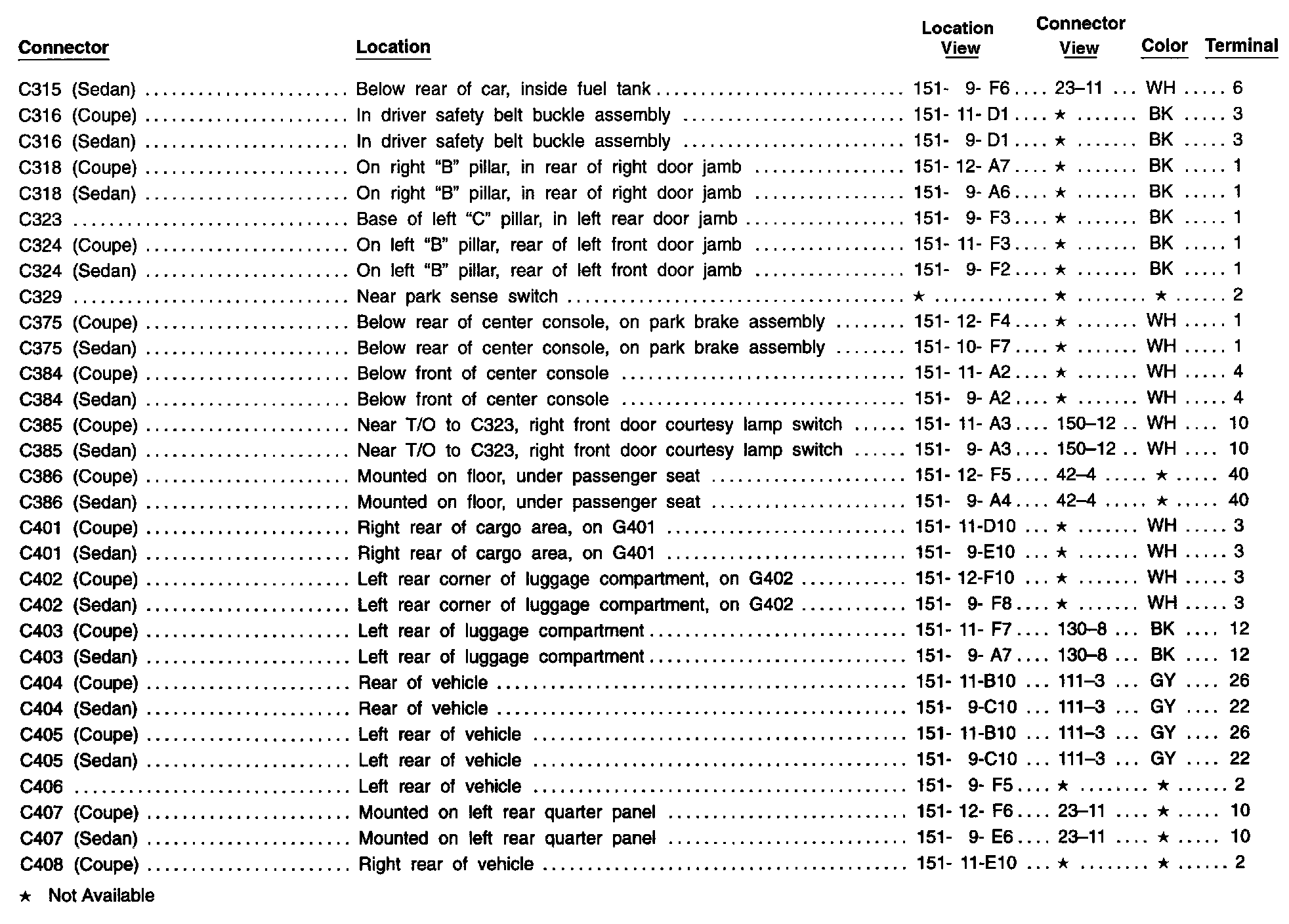

C315-C408:






C408-C441:






C442-C602:






C602-C918:
