Center Mounted Brake Lamp: Service and Repair

REMOVAL

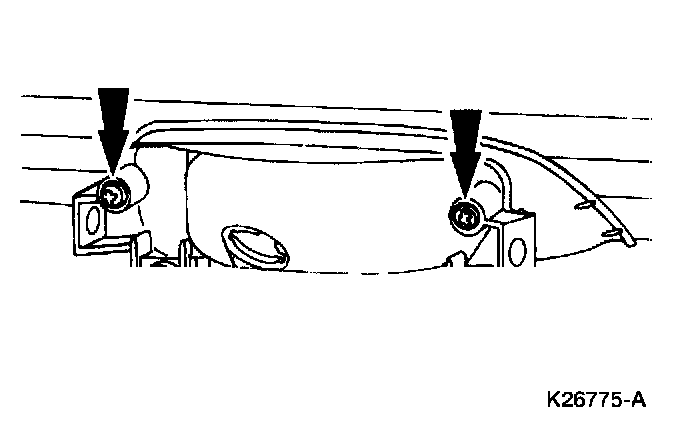

1. Remove the two hi-mount stop lamp fasteners.

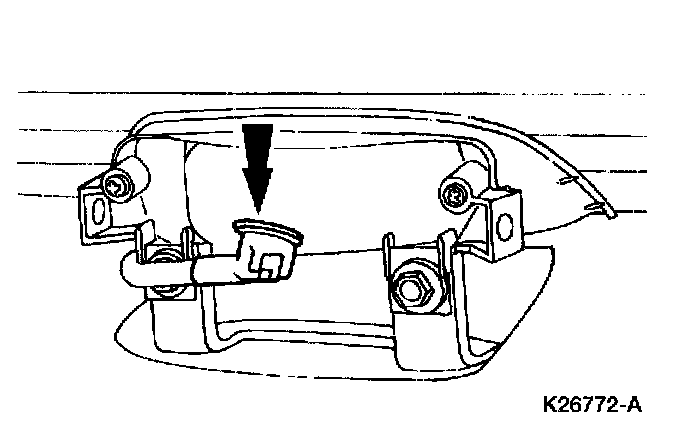

2. Disconnect the hi-mount lamp socket.

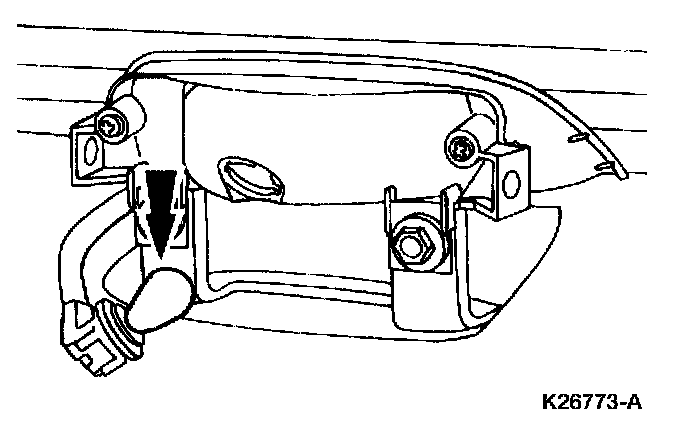

3. Remove the hi-mount lamp bulb.

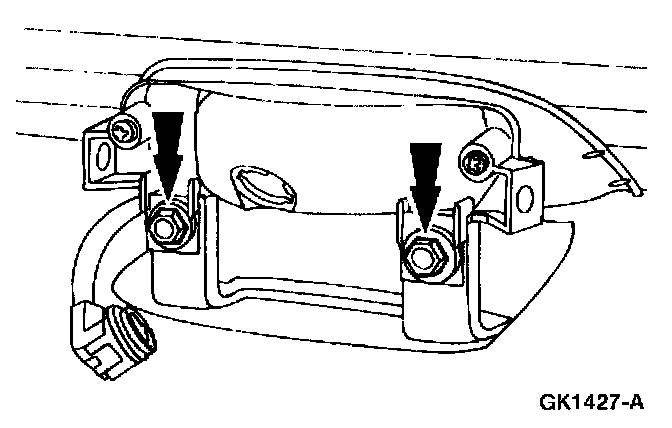

4. Remove the hi-mount lamp bolts.







5. Remove the hi-mount lamp lens screws.

INSTALLATION
1. To install, reverse the removal procedure.
