Lighting and Horns: Testing and Inspection

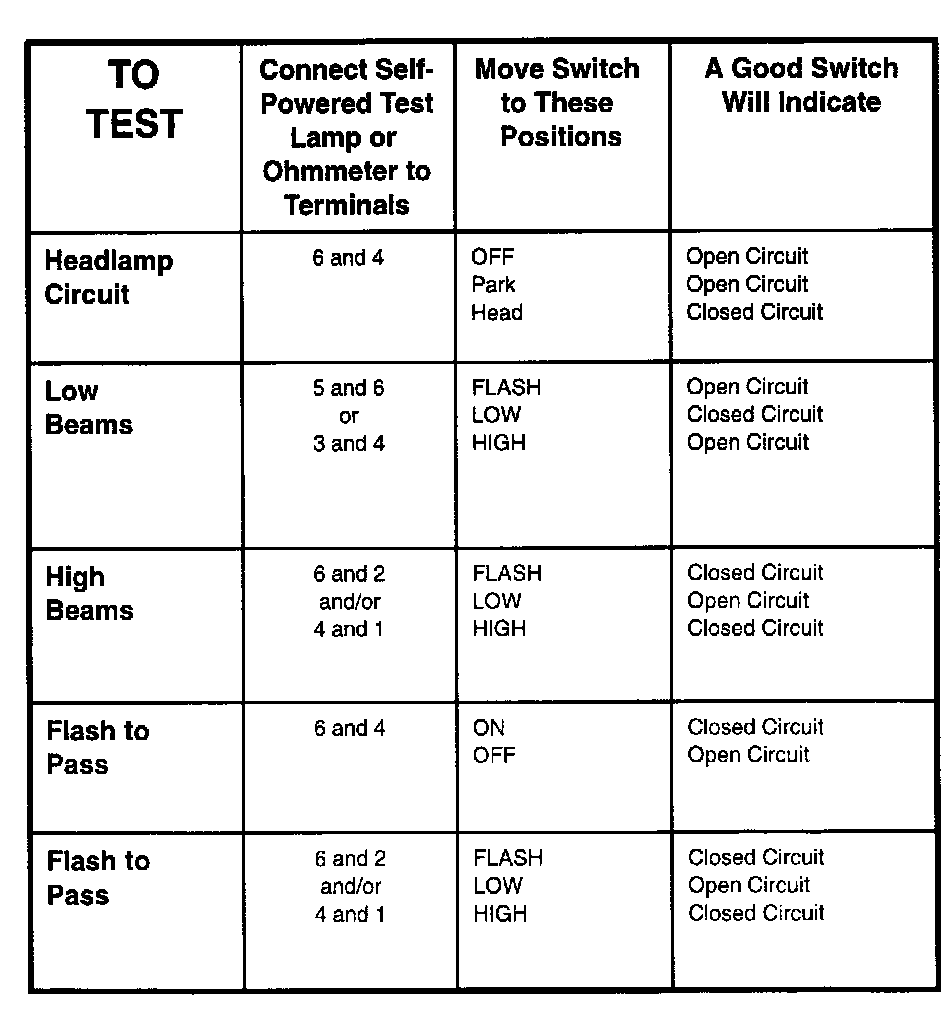

Component Testing Procedure:

Component Testing Procedure:

Component Testing Procedure:

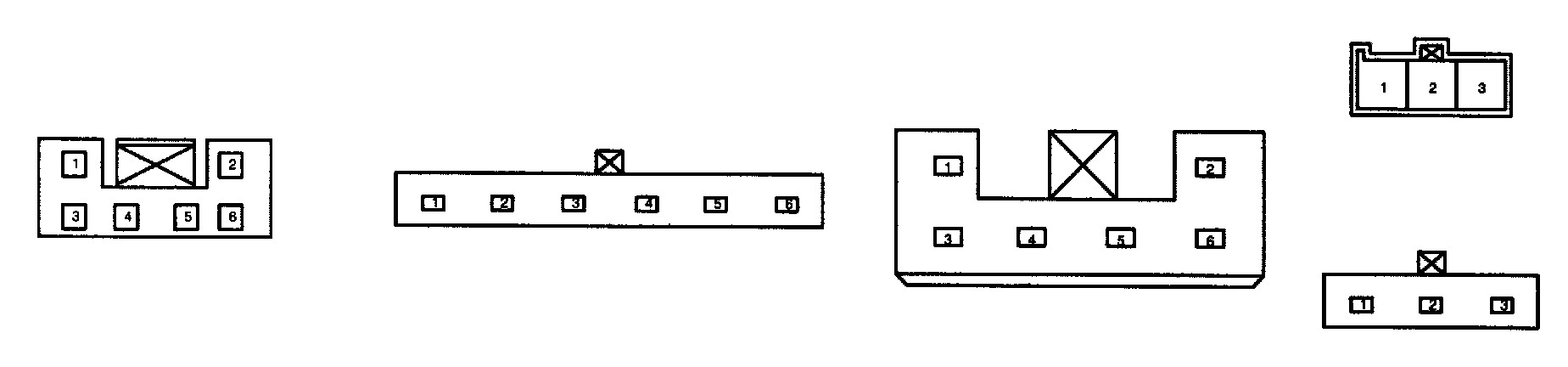

Terminals:

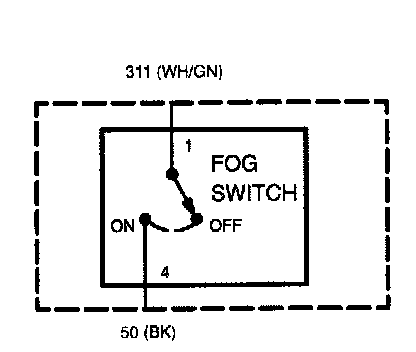

Schematic:

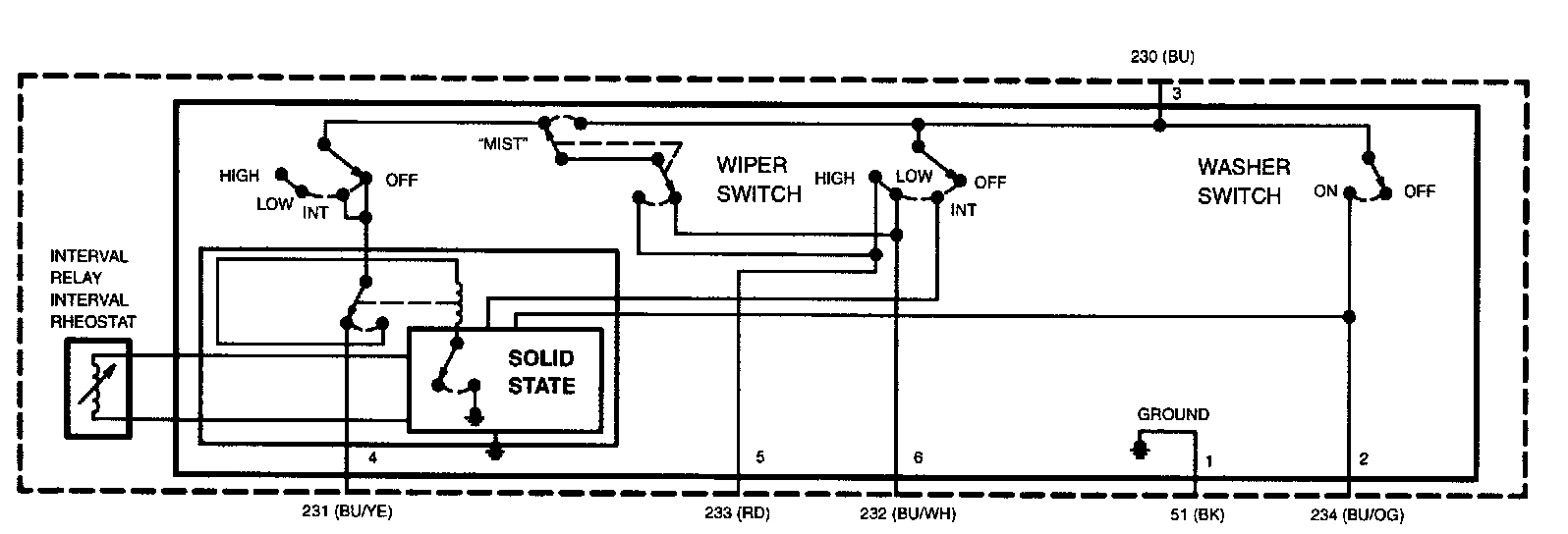

Schematic:

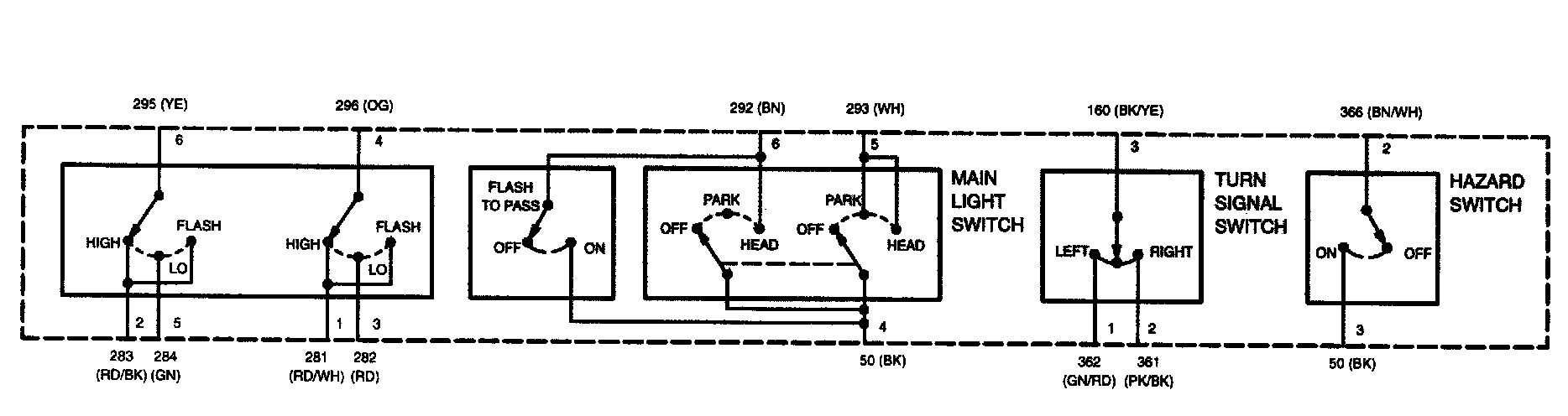

Schematic:

NOTE: For further testing of the steering column-mounted switches, see Steering and Suspension/Steering/Steering Column/Testing and Inspection/Steering Column Switches.
