Ground Diagrams (By Component Name)

Diagram 10-2:

Joint Connector #1
Right Front Park/Turn Lamp
Right Headlamp
Right Foglamp
Windshield Washer Pump Motor

Diagram 10-3:

Anti-Theft Hood Switch
Joint Connector #2
Left Foglamp
Left Headlamp
Left Front Park/Turn Lamp
Windshield Wiper Motor

Diagram 10-4:

Air Bag Diagnostic Monitor
Blower Motor Relay
Central Junction Box
Electronic Flasher
Joint Connector #3
Map Lamp Assembly
Master Window/Door Lock Switch
Multi-Function Switch
Relay Box
Warning Chime Module

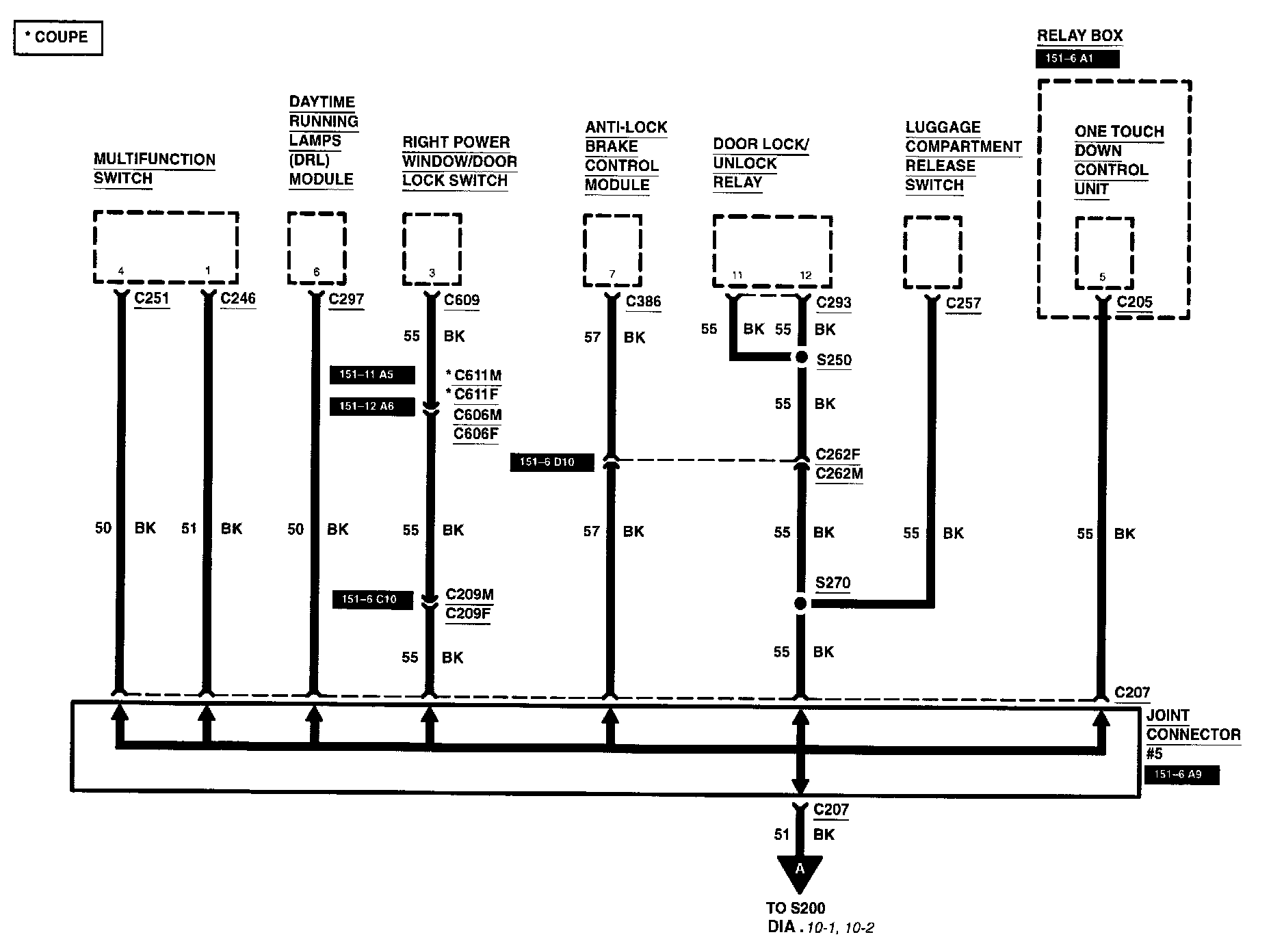

Diagram 10-5:

Anti-Lock Brake Control Module
Daytime Running Lamps Module
Door Lock/Unlock Relay
Joint Connector #5
Luggage Compartment Release Switch
Multi-Function Switch
One Touch Down Control Unit
Relay Box
Right Power Window/Door Lock Switch

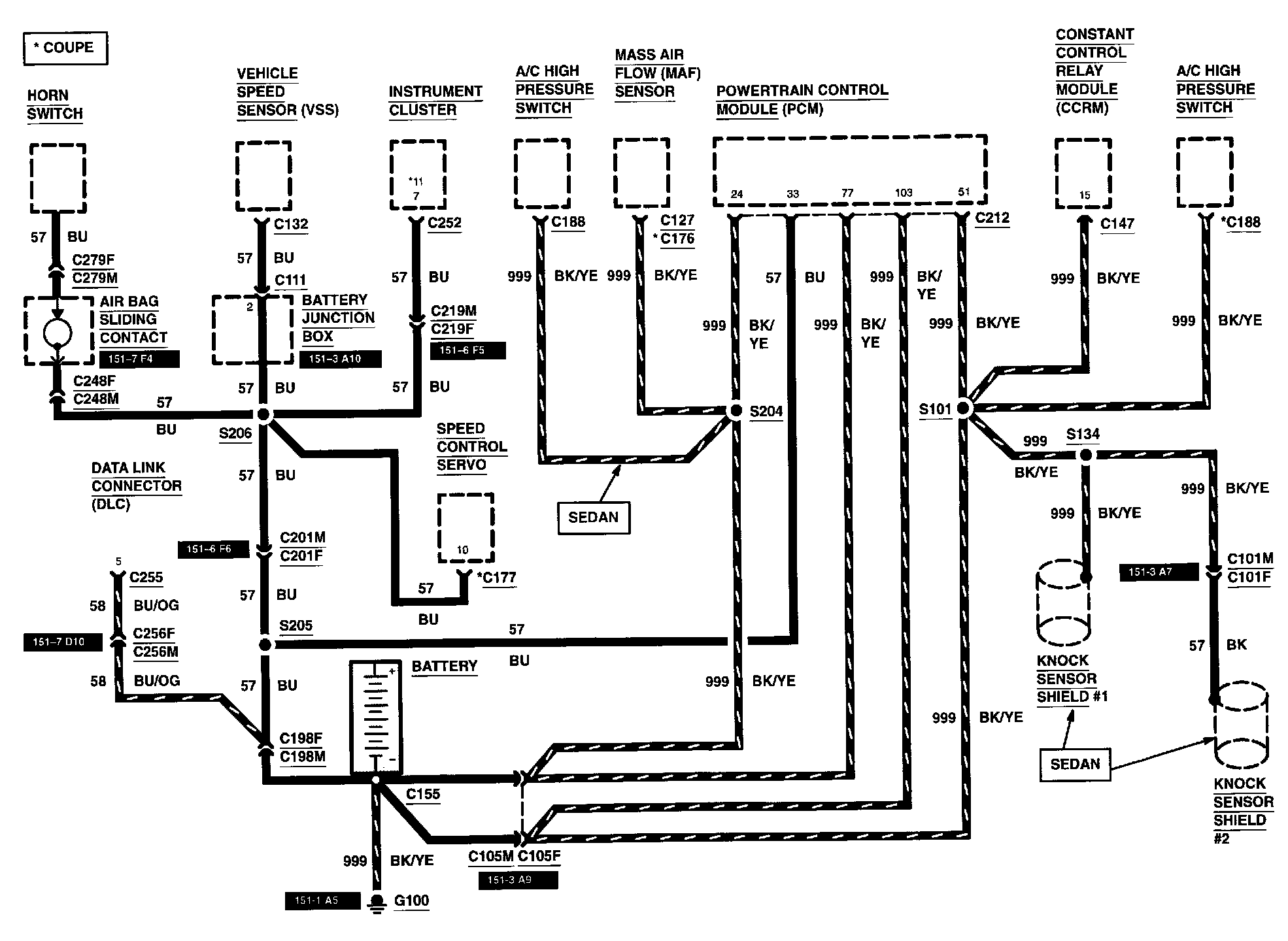

Diagram 10-6:

A/C High Pressure Switch
Air Bag Sliding Contact
Battery
Battery Junction Box
Constant Control Relay Module
Data Link Connector
Horn Switch
Instrument Cluster
Knock Sensor Shield #1
Knock Sensor Shield #2
Mass Air Flow Sensor
Powertrain Control Module
Speed Control Servo
Vehicle Speed Sensor

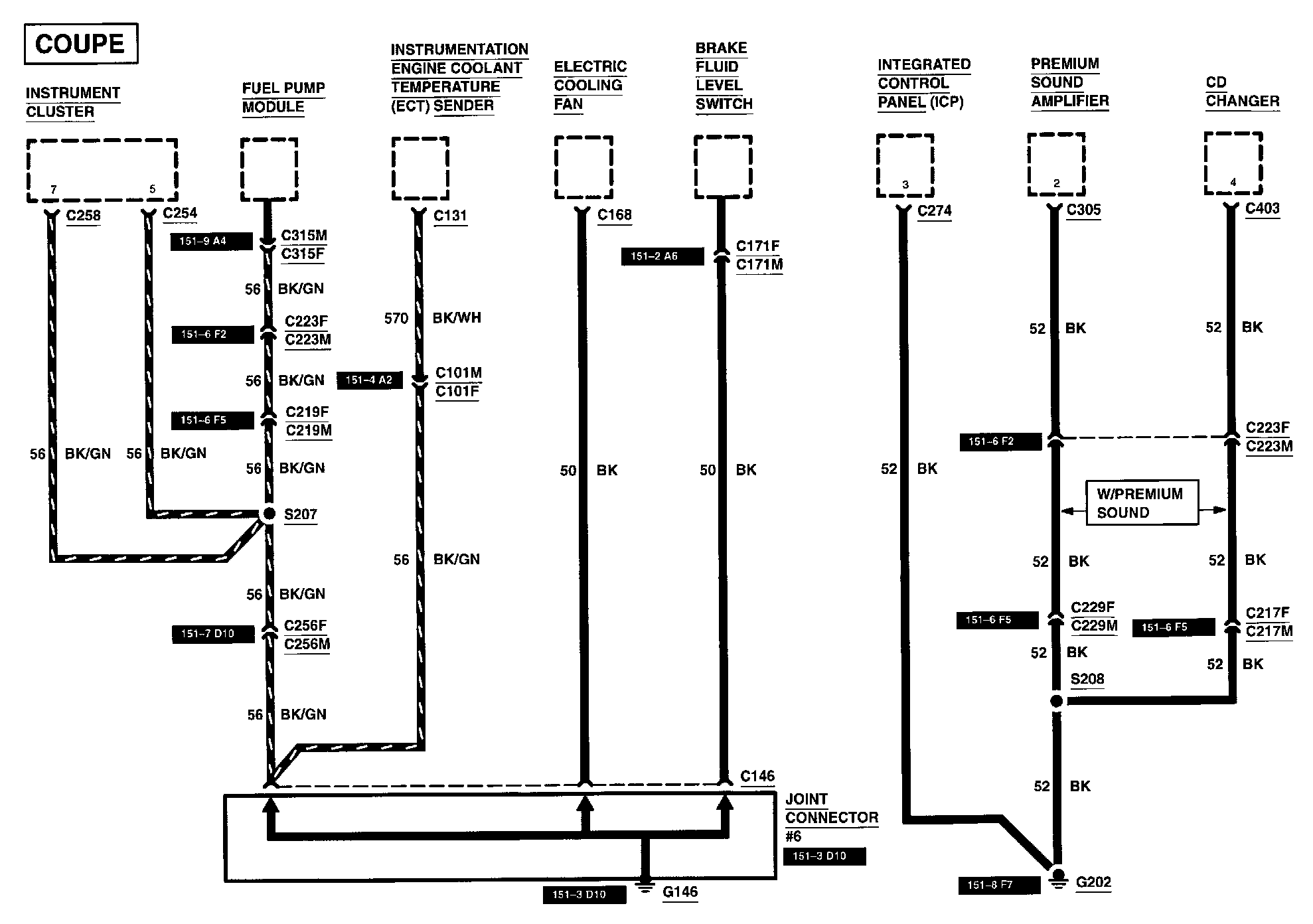

Diagram 10-8:

Brake Fluid Level Switch
Compact Disc Changer
Electric Cooling Fan
Fuel Pump Module
Instrument Cluster
Integrated Control Panel
Instrumentation Engine Coolant Temperature Sender
Joint Connector #6
Premium Sound Amplifier

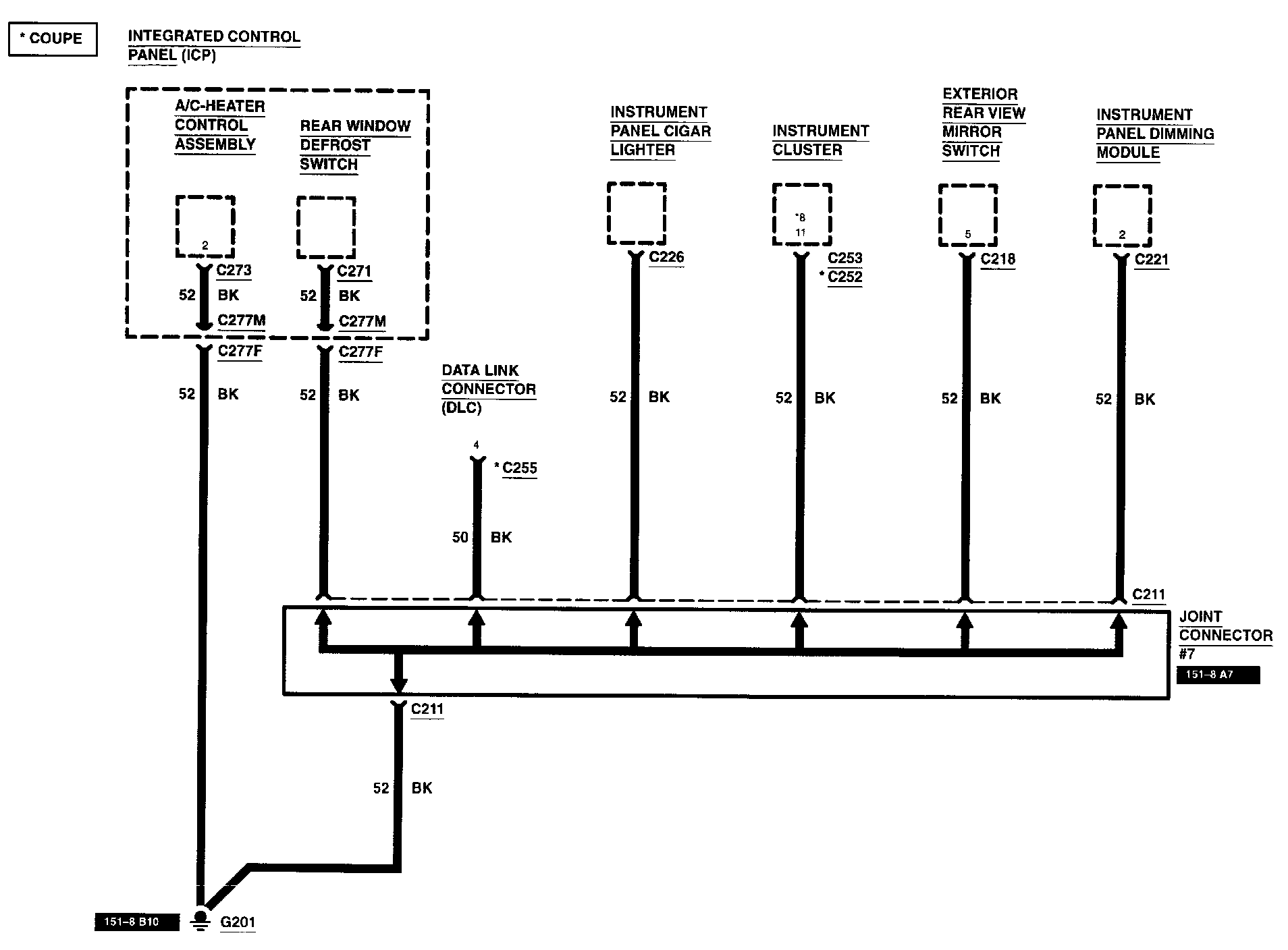

Diagram 10-9:

A/C Heater Control Assembly
Data Link Connector
Exterior Rear View Mirror Switch
Instrument Cluster
Integrated Control Panel
Instrument Panel Cigar Lighter
Instrument Panel Dimming Module
Joint Connector #7
Rear Window Defrost Switch

Diagram 10-11:

Joint Connector #8
Left License Lamps
Left Reversing Lamp
Luggage Compartment Release Solenoid
Luggage Compartment Switch
Remote Anti-Theft Personality Module
Right License Lamps
Right Rear Park/Stop/Turn Lamp #1
Right Rear Park/Stop/Turn Lamp #2
Right Reversing Lamp

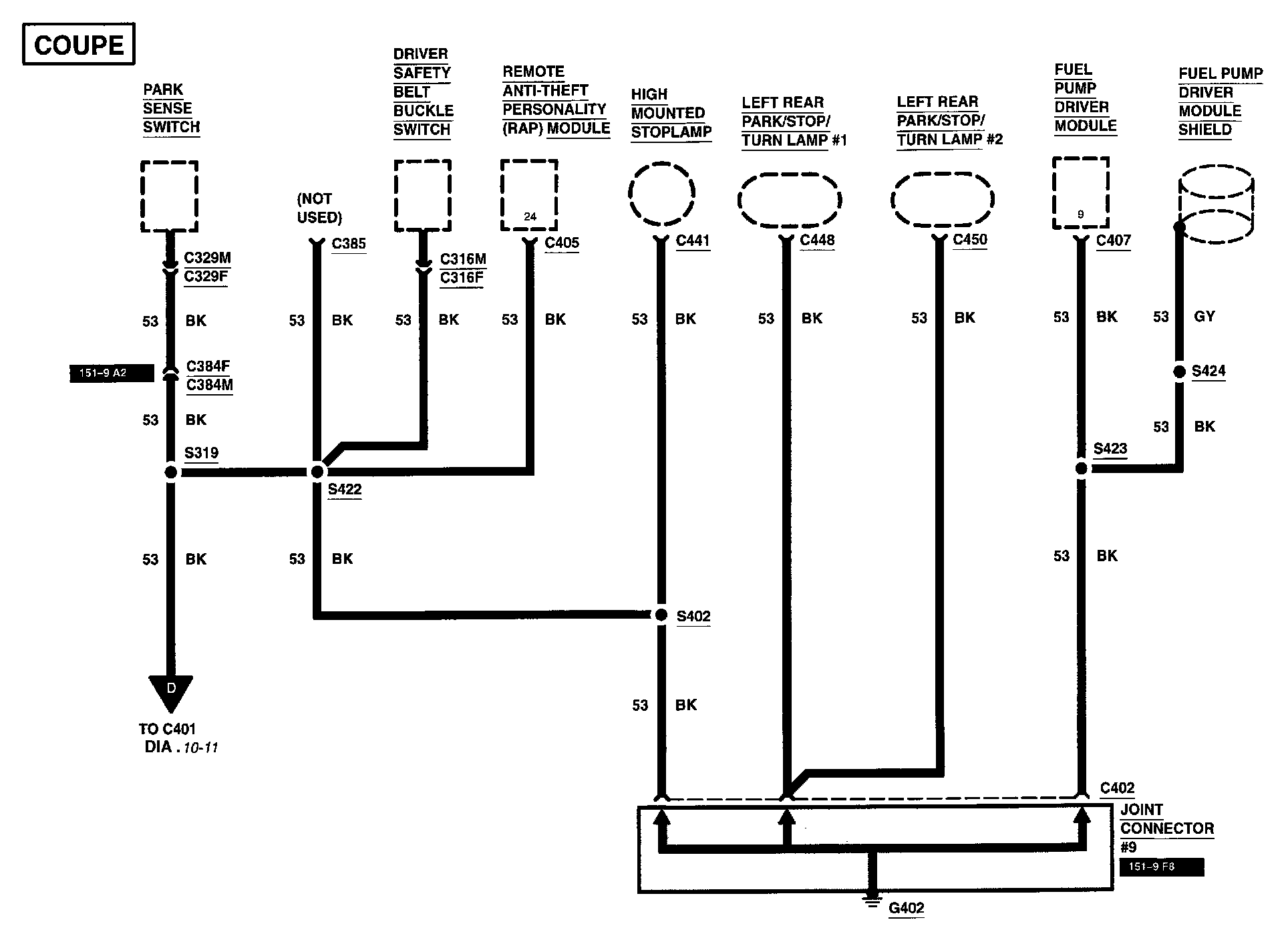

Diagram 10-12:

Driver Safety Belt Buckle Switch
Fuel Pump Driver Module
Fuel Pump Driver Module Shield
High Mounted Stop Lamp
Joint Connector #9
Left Rear Park/Stop/Turn Lamp #1
Left Rear Park/Stop/Turn Lamp #2
Park Sense Switch
Remote Anti-Theft Personality Module
