Connector Locations
Connector Locations

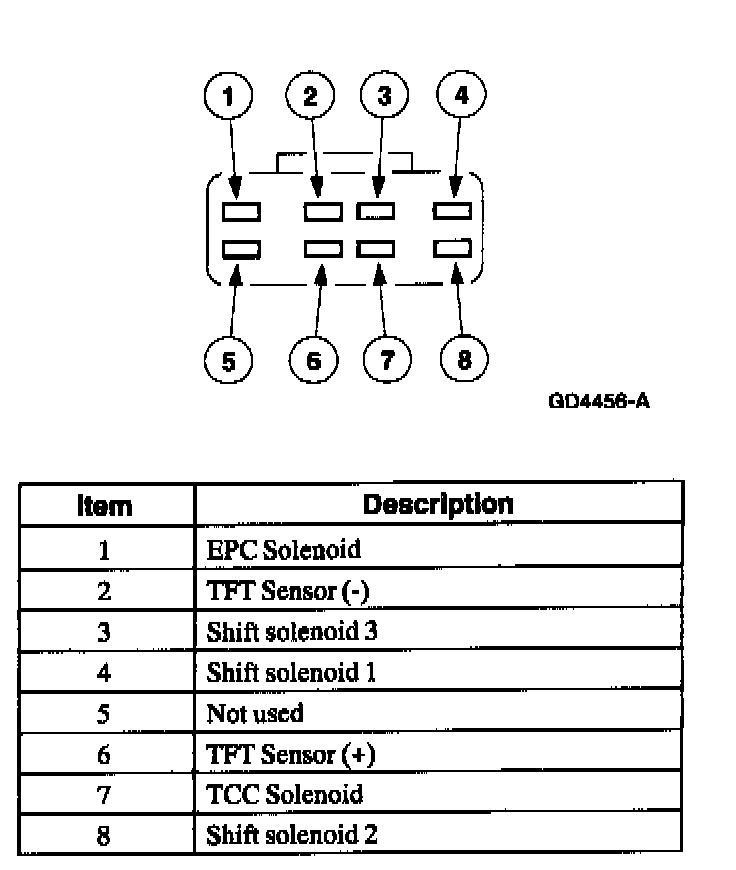

Digital Transaxle Range Sensor C122 Harness Side
Transaxle Harness C191 Harness Side
