RH Door Window Regulator Control Switch

1. Key OFF.
2. Remove and disconnect the RH door window regulator control switch.

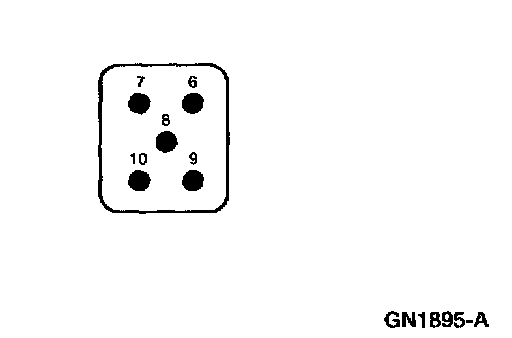

3. Measure the resistance between the terminals listed in the test chart.







4. If the RH door window regulator control switch fails any of the tests, replace it. Otherwise, return to pinpoint test. Pinpoint Tests
