Component Tests and General Diagnostics

1. Key OFF.

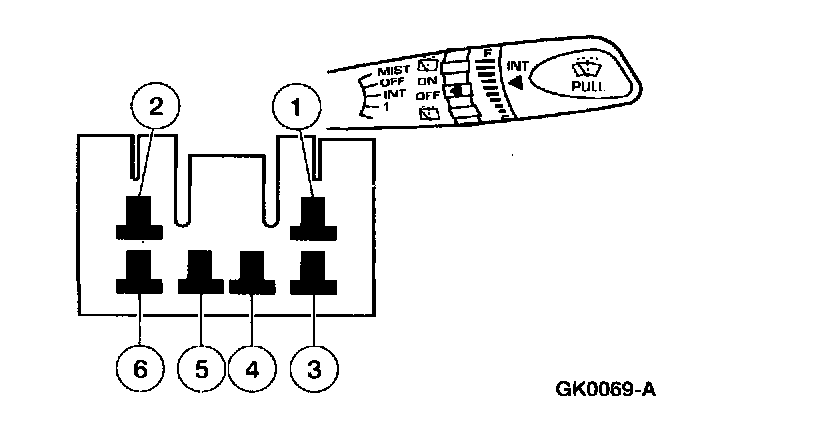

2. Disconnect the windshield wiper/washer switch connector.

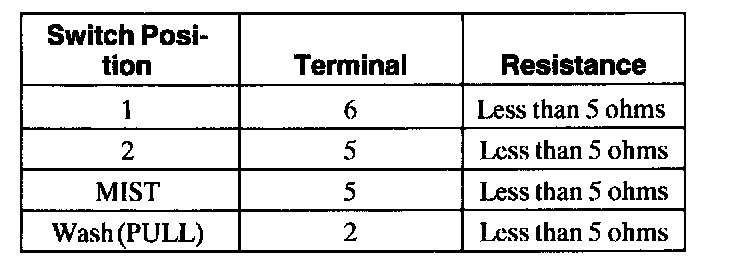

3. Measure the resistance between terminal 3 and the terminals of the windshield wiper/washer switch listed in the test chart.







4. If the windshield wiper/washer switch fails any of the tests, replace it. Otherwise, return to the pinpoint tests. Pinpoint Tests
