Antenna: Service and Repair

REMOVAL
1. Lower the glove compartment by releasing the stops from the instrument panel.

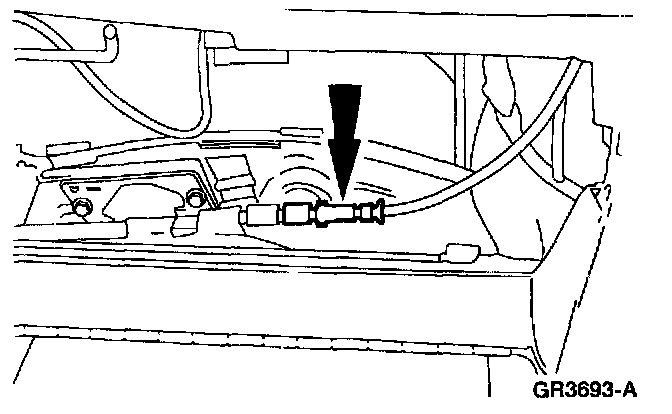

2. Disconnect the antenna in-line connector.







3. Remove the antenna base and cable.
1 Remove the radio antenna base cap.
2 Remove the screws.
3 Remove the antenna base and cable.
^ Disconnect the antenna cable grommet.

INSTALLATION
1. To install, reverse the removal procedure.
