Trunk / Liftgate: Service and Repair

LUGGAGE COMPARTMENT LID - HINGE

Removal







1. Disconnect the electrical connector.

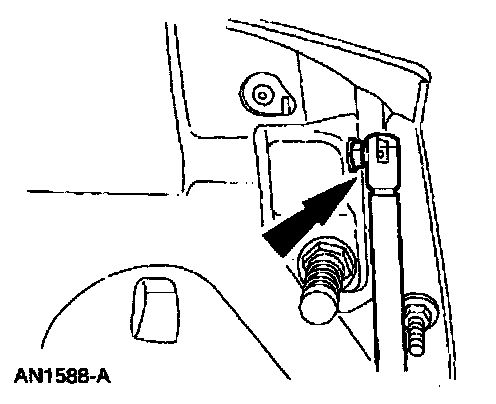

2. Remove the lift cylinder.







3. Remove the luggage compartment lid hinge bolts.







4. NOTE: Remove the sealer around the luggage compartment lid hinge if necessary.

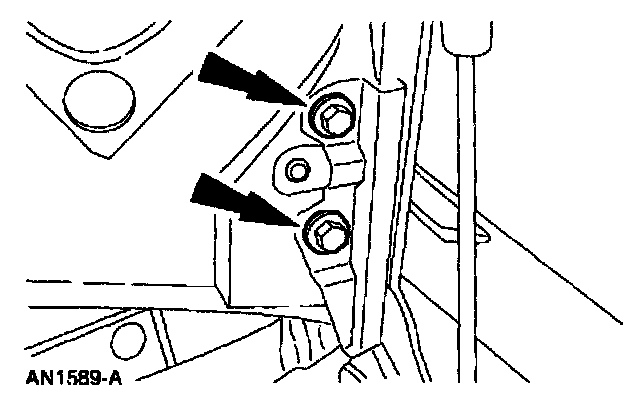

Remove the nuts and the luggage compartment lid hinge.

Installation












1. NOTE: If removed, apply new sealer.

To install, reverse the removal procedure.
