Seating

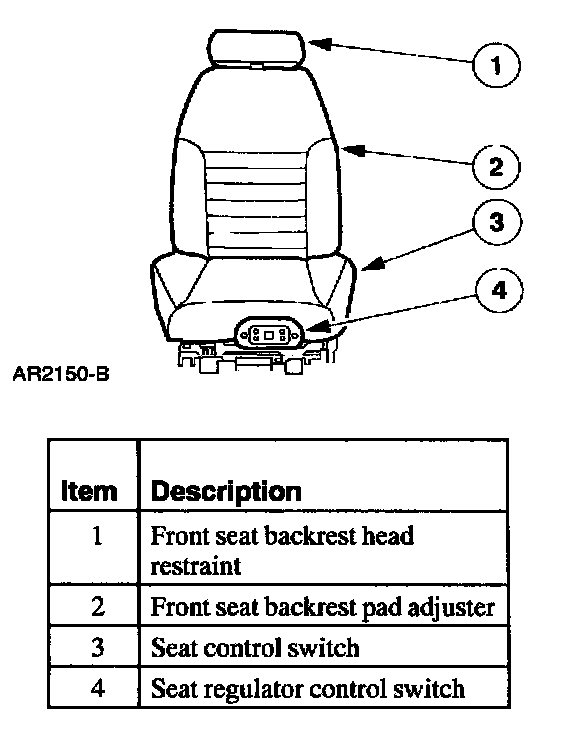

Front Power Seats
The front power seat features:
^ a six-way seat regulator control switch located on the front of the seat.
^ a seat track mounted under the seat.
^ a seat regulator motor and gear housing mounted on the seat track.
^ an optional power lumbar switch located on the side of the seat.
^ a manual seat backrest release handle on the outboard rear corner of the seat.

Power Lumbar Support Seats
The power lumbar support system consists of:
^ seat control switch
^ front seat backrest pad adjusting pump
^ front seat adjusting motor drive tube
^ system wiring and circuit protection
^ front seat backrest adjusting hose

Manual Lumbar Support Seats
The manual lumbar support system consists of:
^ front seat backrest pad adjuster handle
^ front seat backrest pad adjuster

The adjusting cable and drive unit are integral to the front seat backrest pad adjuster and are not to be repaired as individual components.

Front Seat Backrest Latch Seats

NOTE: Under no circumstances are the front seat backrest latch components to be repaired as individual components. If a front seat backrest latch or component is non-functional or damaged, a new front seat backrest latch must be installed.

A release handle on the outboard rear corner of the seat backrest is manually operated to unlock the front seat backrest latch.

Rear Seat
The rear seat cushion pad and frame is retained in the following manner:
^ Pins are located on the bottom front of the rear seat cushion pad and frame which secure the rear seat cushion pad and frame to the front floor pan.
^ The pins are inserted into locking plates on the floor crossmember with a push button release.
^ The bottom of the rear seatback frame is retained with screws to the front floor pan.
