Adjuster, Manual Seat Backrest

REMOVAL
1. Remove the seat. For additional information, refer to Front Power Seat.







2. Release the J-retainers.

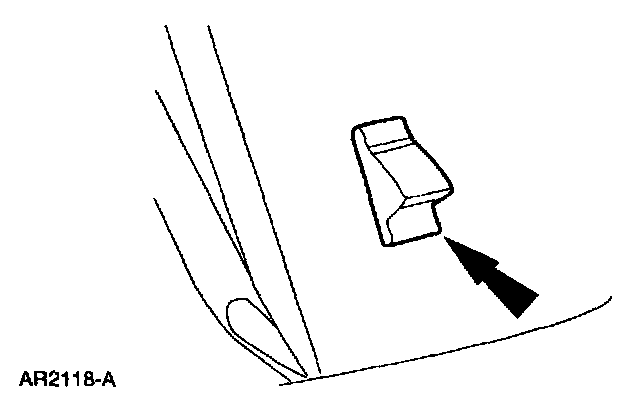

3. Remove the seat backrest latch handle knob.

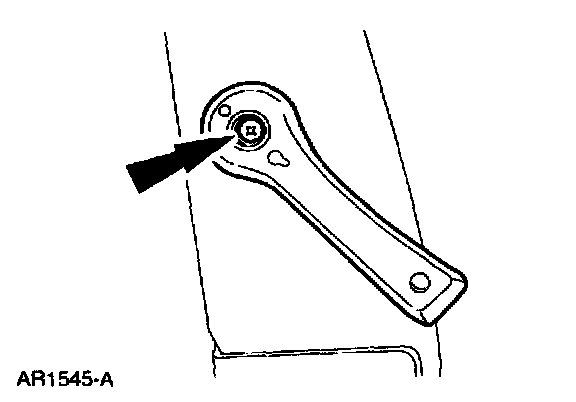

4. Remove the handle.







5. Remove the screws and the safety belt guide.







6. Remove the front seat headrest guide rod sleeve.







7. Remove the hog rings.







8. Remove the front seat backrest cover from the front seat backrest pad.







9. Release the front seat backrest frame from the front seat backrest pad.

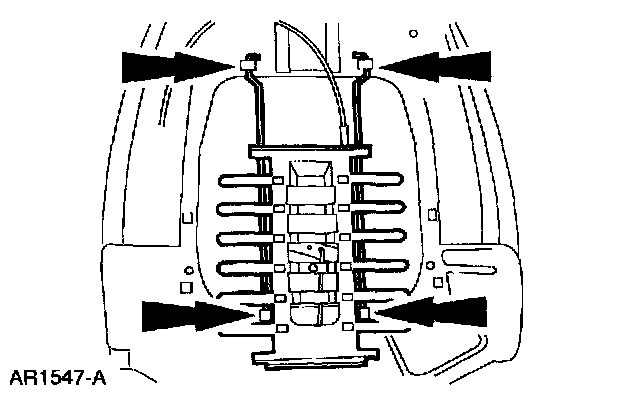

10. Remove the seat backrest adjuster screws.







11. Remove the seat backrest adjuster.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Be sure the safety belt is correctly installed into the safety belt guide.
