Front Power Seat

REMOVAL
1. Move the seat forward.

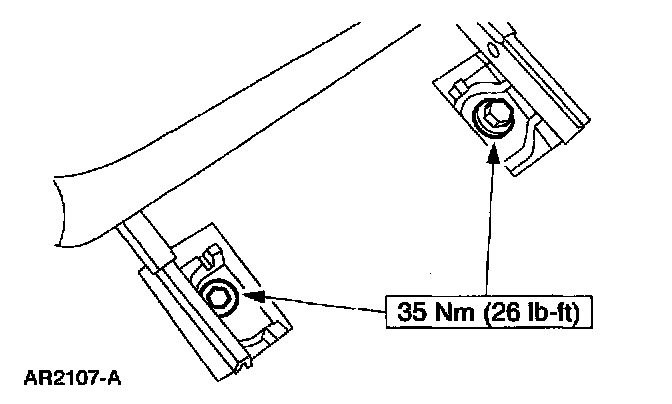

2. Remove the seat track bolts.
3. Move the seat rearward.

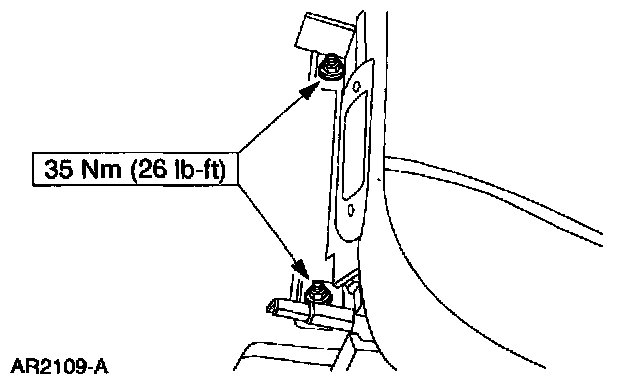

4. Remove the seat track nuts.
5. Move the seat forward.
6. Disconnect the battery. For additional information, refer to Battery.







7. Disconnect the power seat electrical connector.
8. Remove the power seat.

INSTALLATION












1. To install, reverse the removal procedure.
