Cruise Control Servo Cable: Service and Repair

REMOVAL

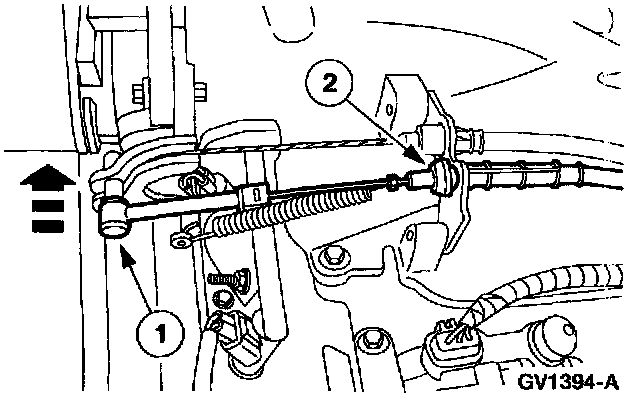

1. Remove the speed control actuator cable end from the throttle body.
1 Lift the speed control cable from the throttle nailhead.
2 Release the speed control cable from the throttle bracket.

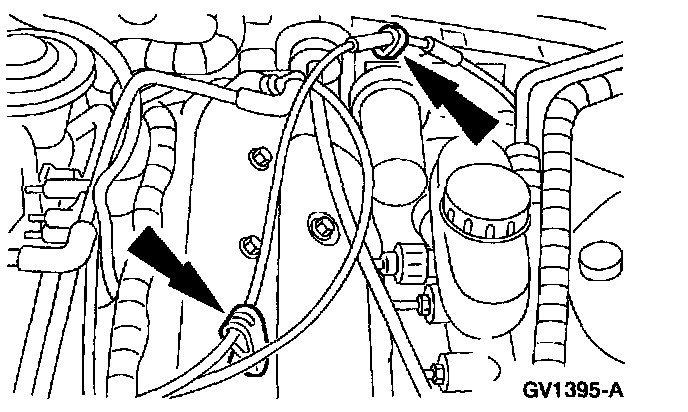

2. Remove the speed control cable from the retaining clips.
3. Remove the LH front wheel and tire assembly. For additional information, refer to Wheels, Tires, and Alignment.

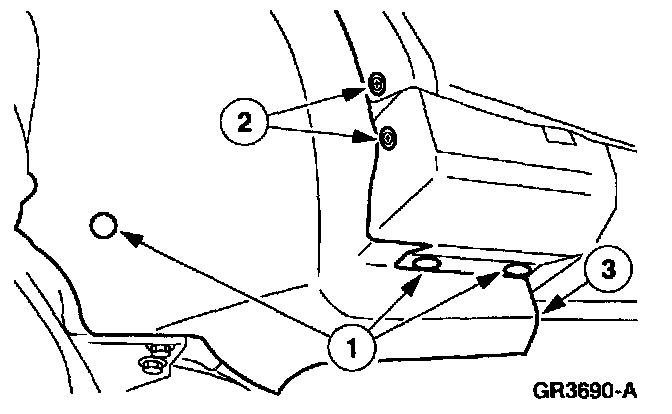

4. Position aside the LH front splash shield.
1 Remove the pin-type retainers.
2 Remove the screws.
3 Position aside the LH front splash shield.







5. Depress the locking tab and rotate the speed control actuator cable cap to remove.

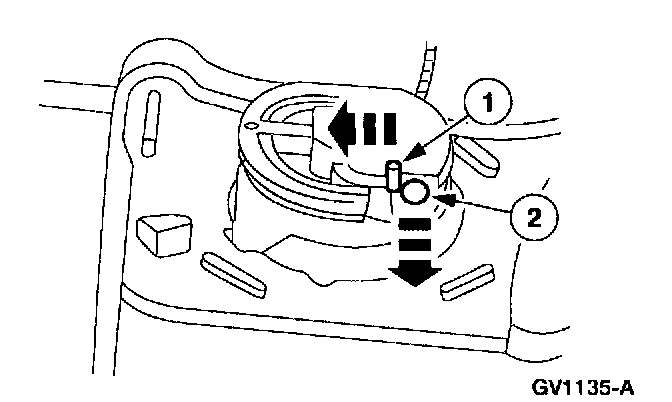

6. Disconnect the speed control actuator cable from the speed control servo pulley.
1 Gently push in the retaining spring.
2 Disconnect the speed control cable slug from the speed control servo pulley.


INSTALLATION
1. To install, reverse the removal procedure.
