Cruise Control Switch: Service and Repair

REMOVAL
1. Remove the steering wheel; refer to Steering.

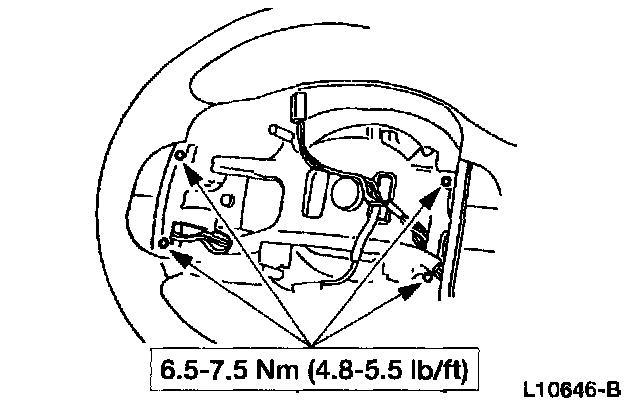

2. Remove the steering wheel rear cover.
1 Remove the screws.
2 Remove the steering wheel rear cover.

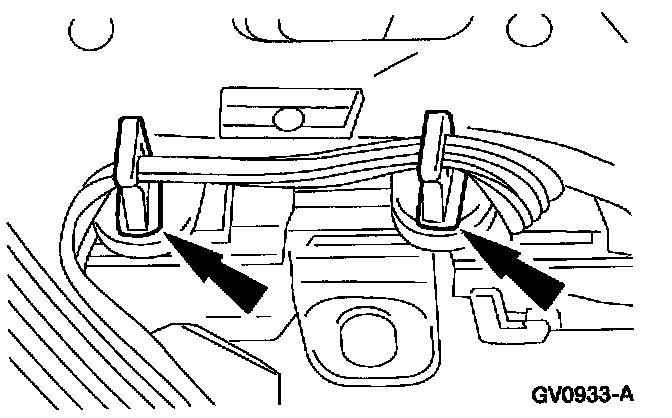

3. Remove the ribbon harness from the clips.







4. Remove the horn contact electrical connectors.

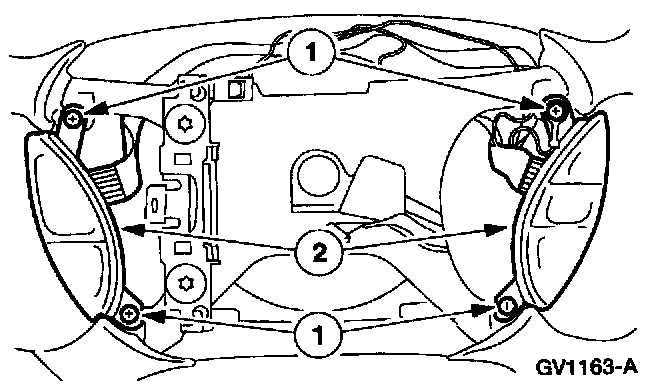

5. Remove the right side horn contact.
1 Remove the screws.
2 Remove the contact.

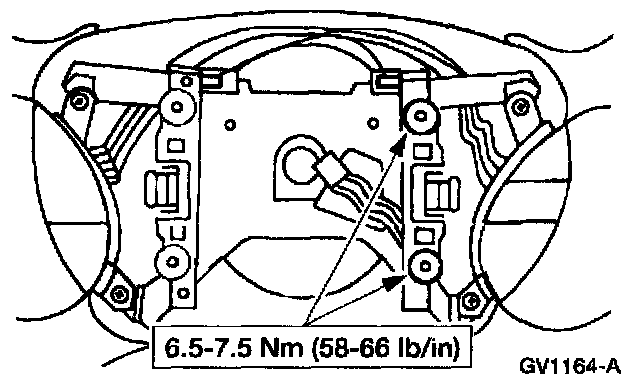

6. Remove the speed control actuator switch assembly.
1 Remove the screws.
2 Remove the speed control actuator switch assembly.

INSTALLATION












1. To install, reverse the removal procedure.
