Connectors

C100-C112:






C112-C128:

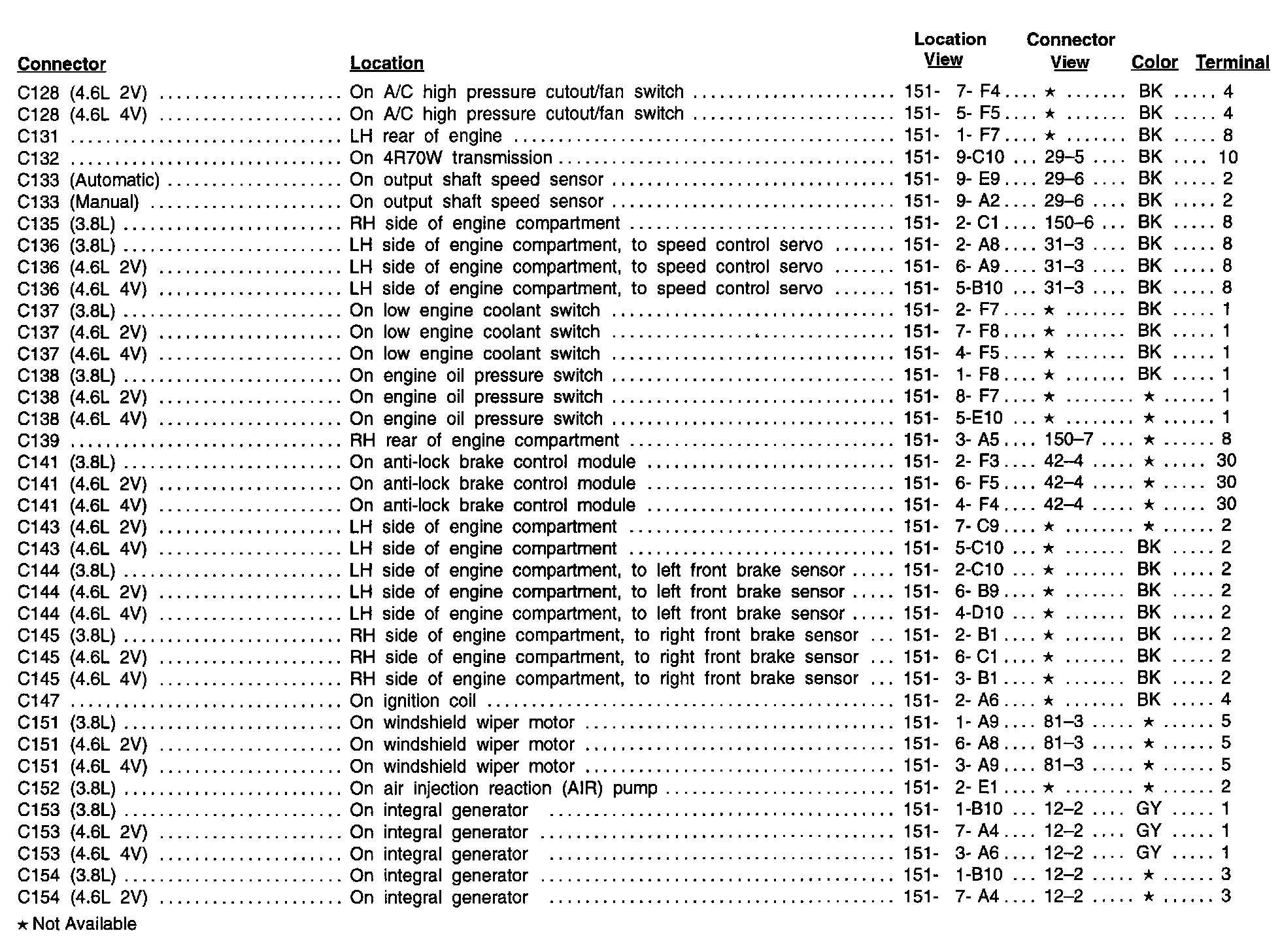

C128-C154:






C154-C171:

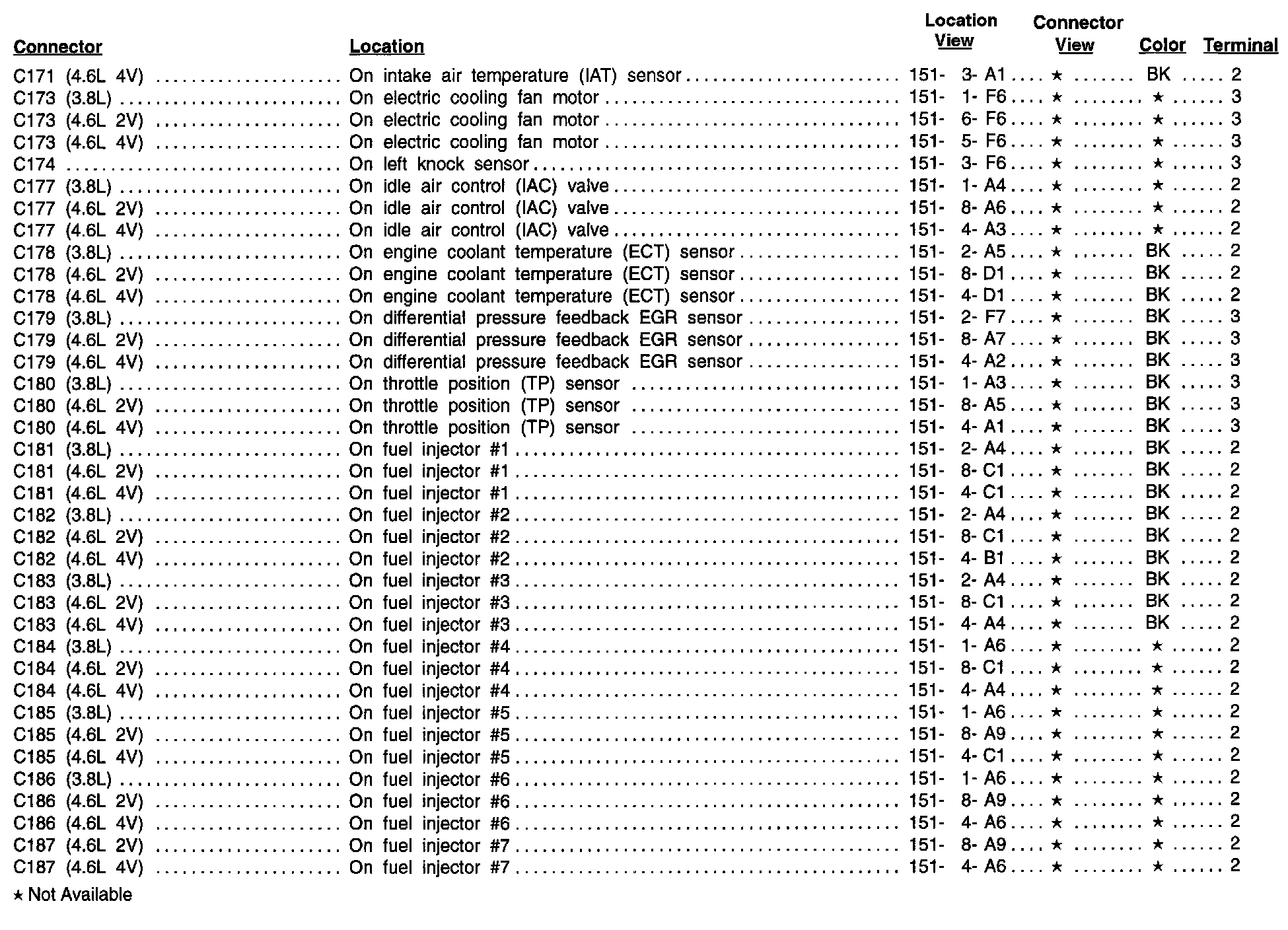

C171-C187:

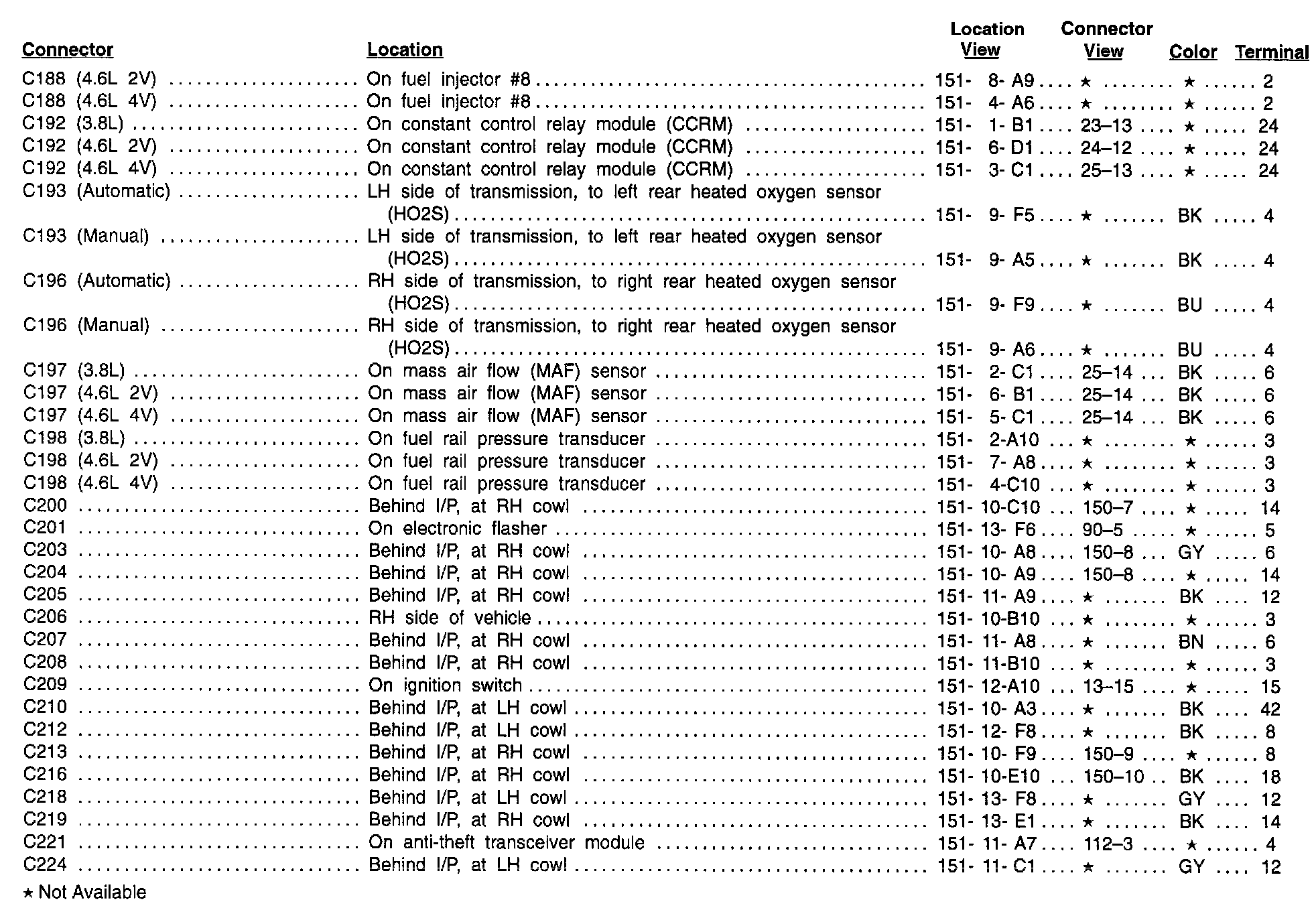

C188-C224:






C225-C278:

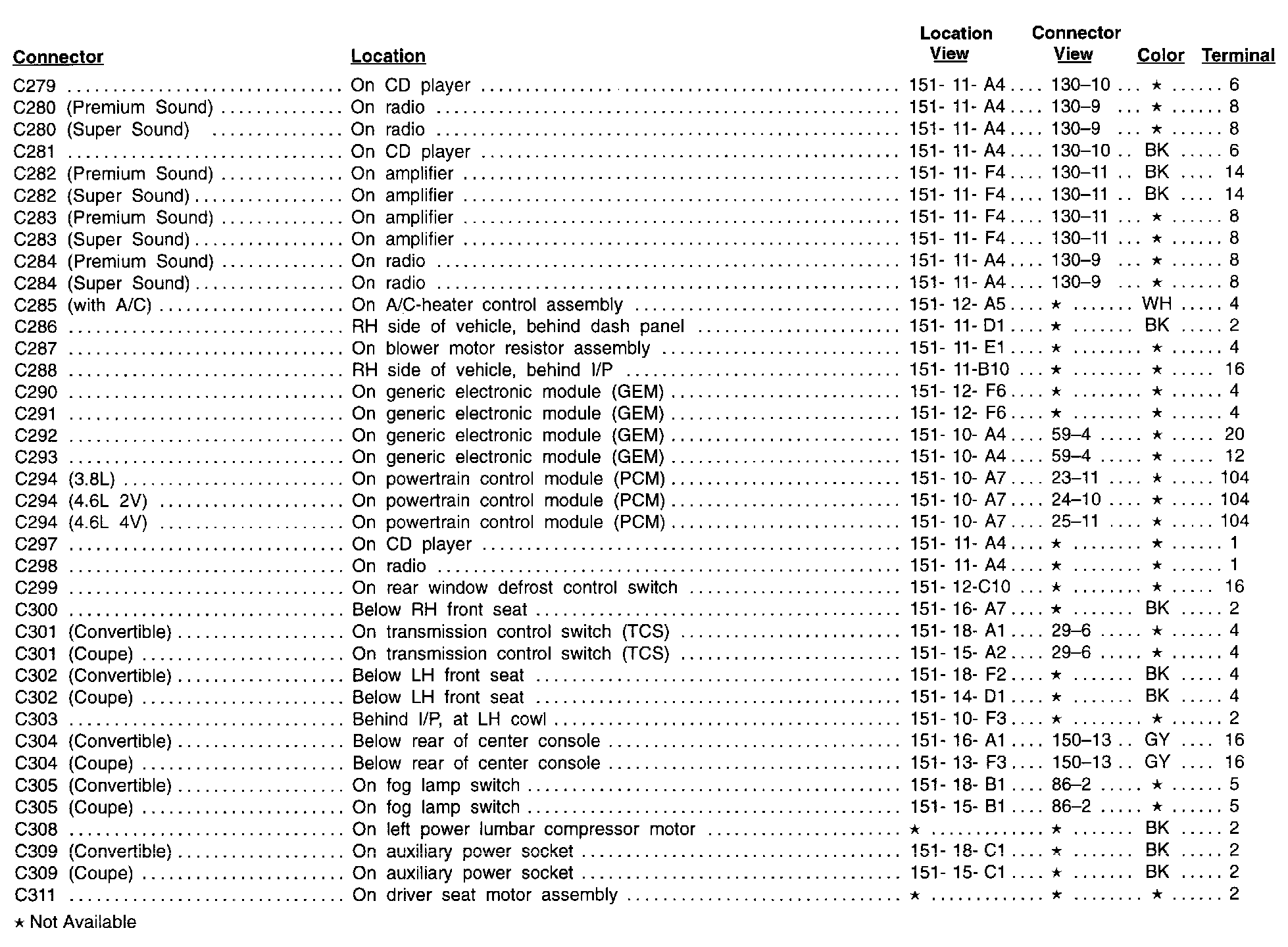

C279-C311:

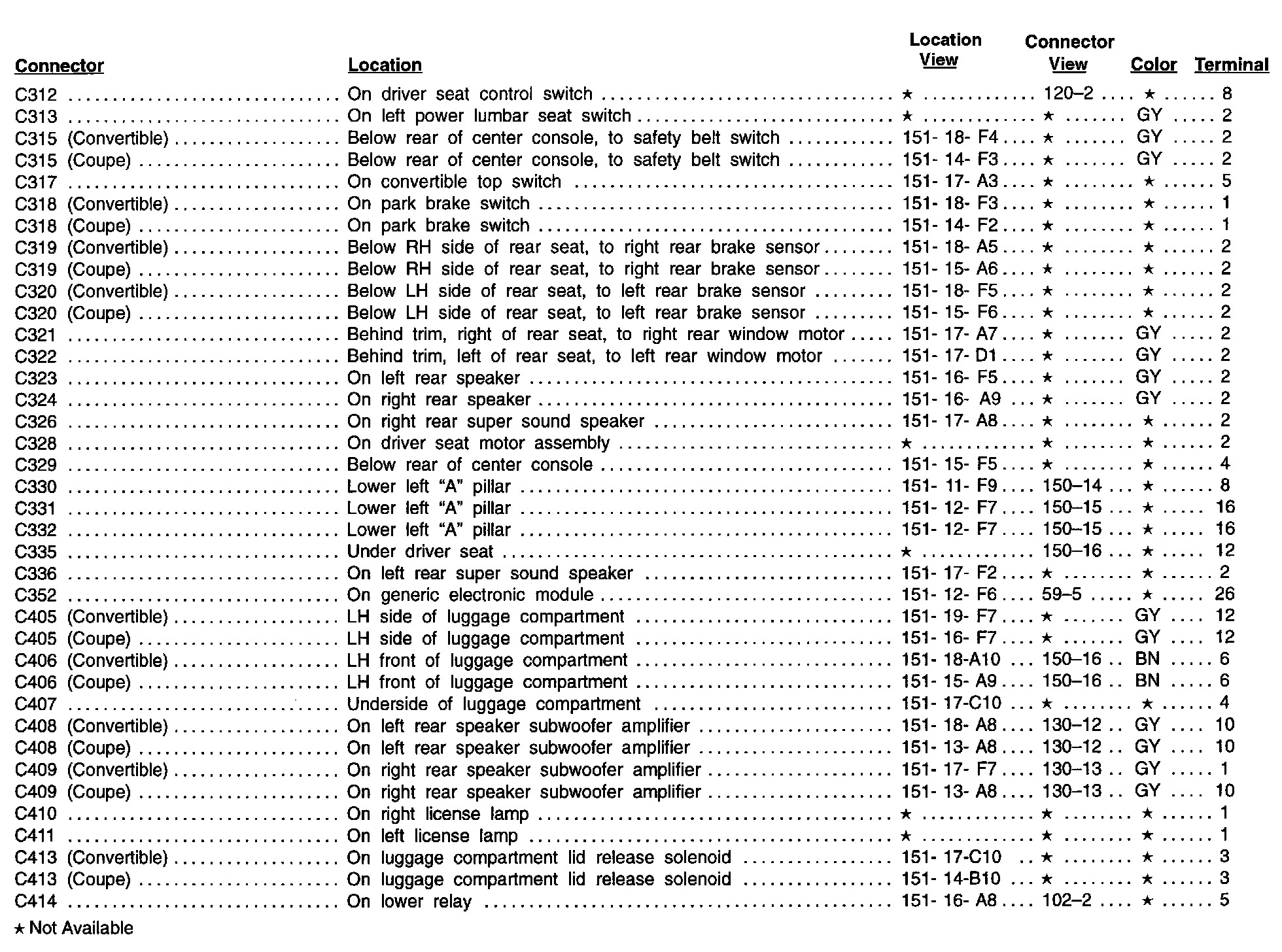

C312-C414:

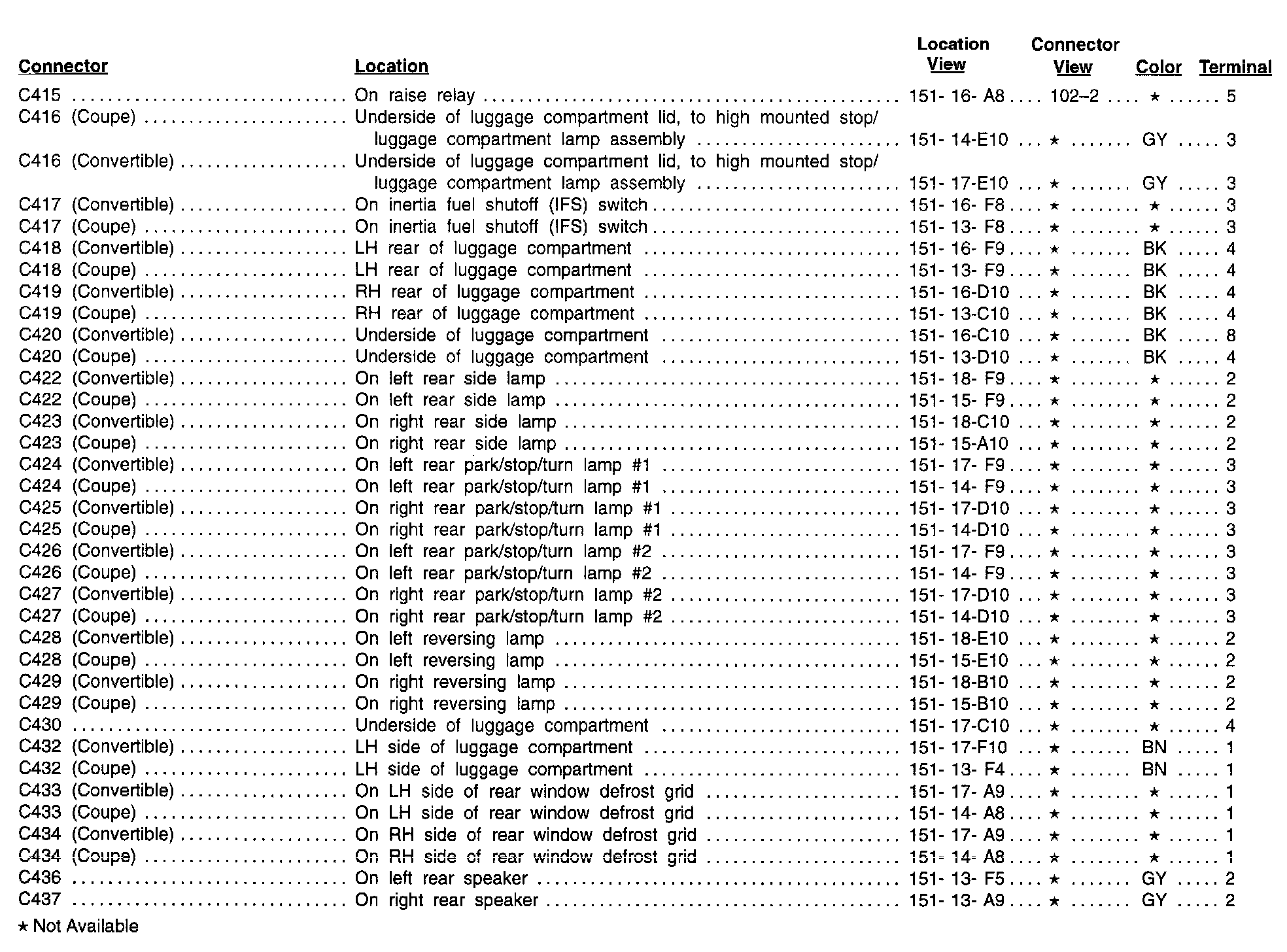

C415-C437:






C438-C602:






C603-C1011:






C1081-C1202:
