System Diagram

Diagram 29-1:

Central Junction Box
Fuse 28
Illumination
Powertrain Control Module
Transmission Control Switches

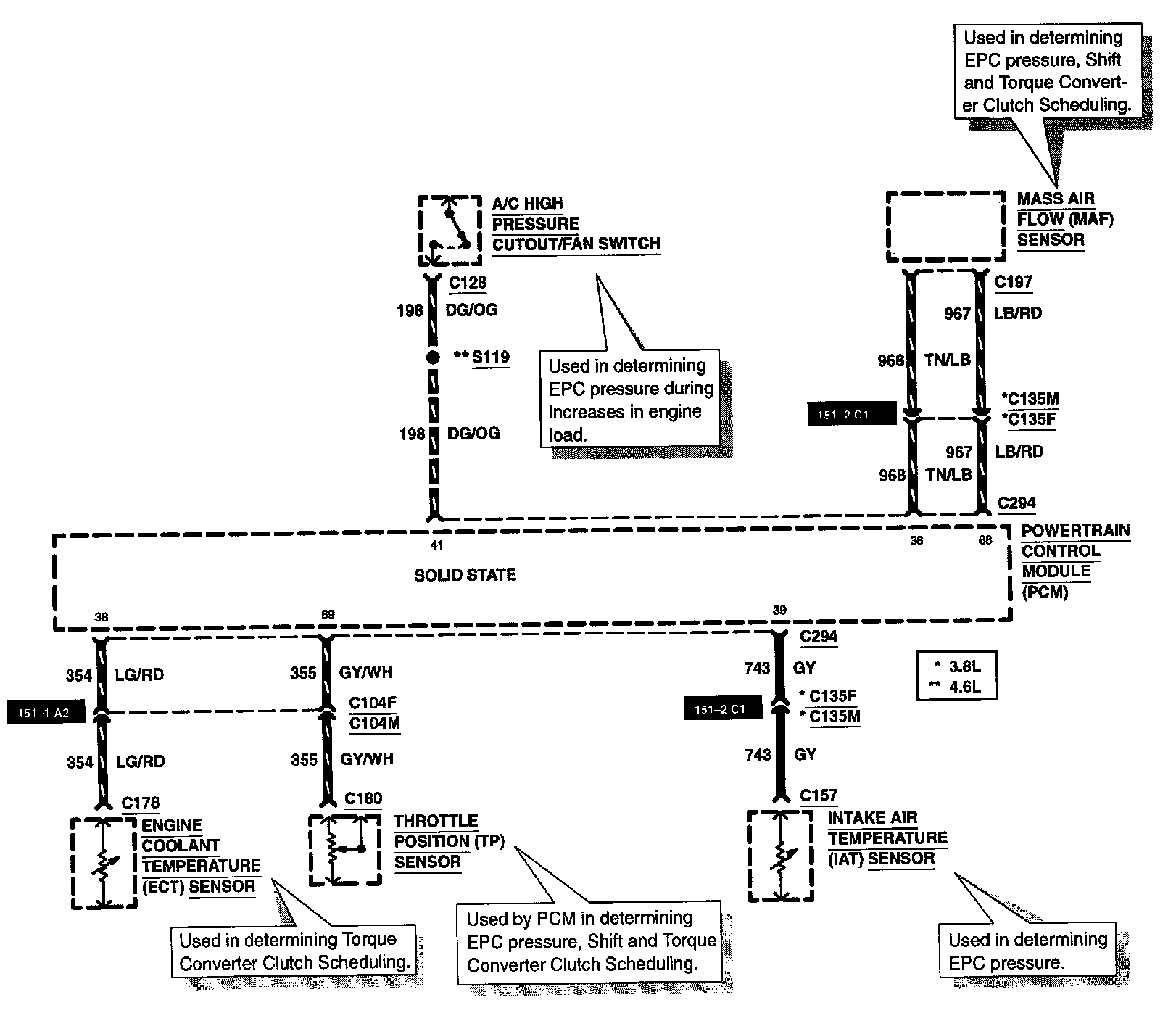

Diagram 29-2:

A/C High Pressure Cutout/Fan Switch
Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
Mass Air Flow Sensor
Powertrain Control Module
Throttle Position Sensor

Diagram 29-3:

Central Junction Box
[1][2]Digital Transmission Range Sensor
Fuse 11
Output Shaft Speed Sensor
Powertrain Control Module

Diagram 29-4:

4R70W Transmission
Central Junction Box
Electronic Pressure Control Solenoid
Fuse 2
Powertrain Control Module
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor
Shift Solenoids
