Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2000
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

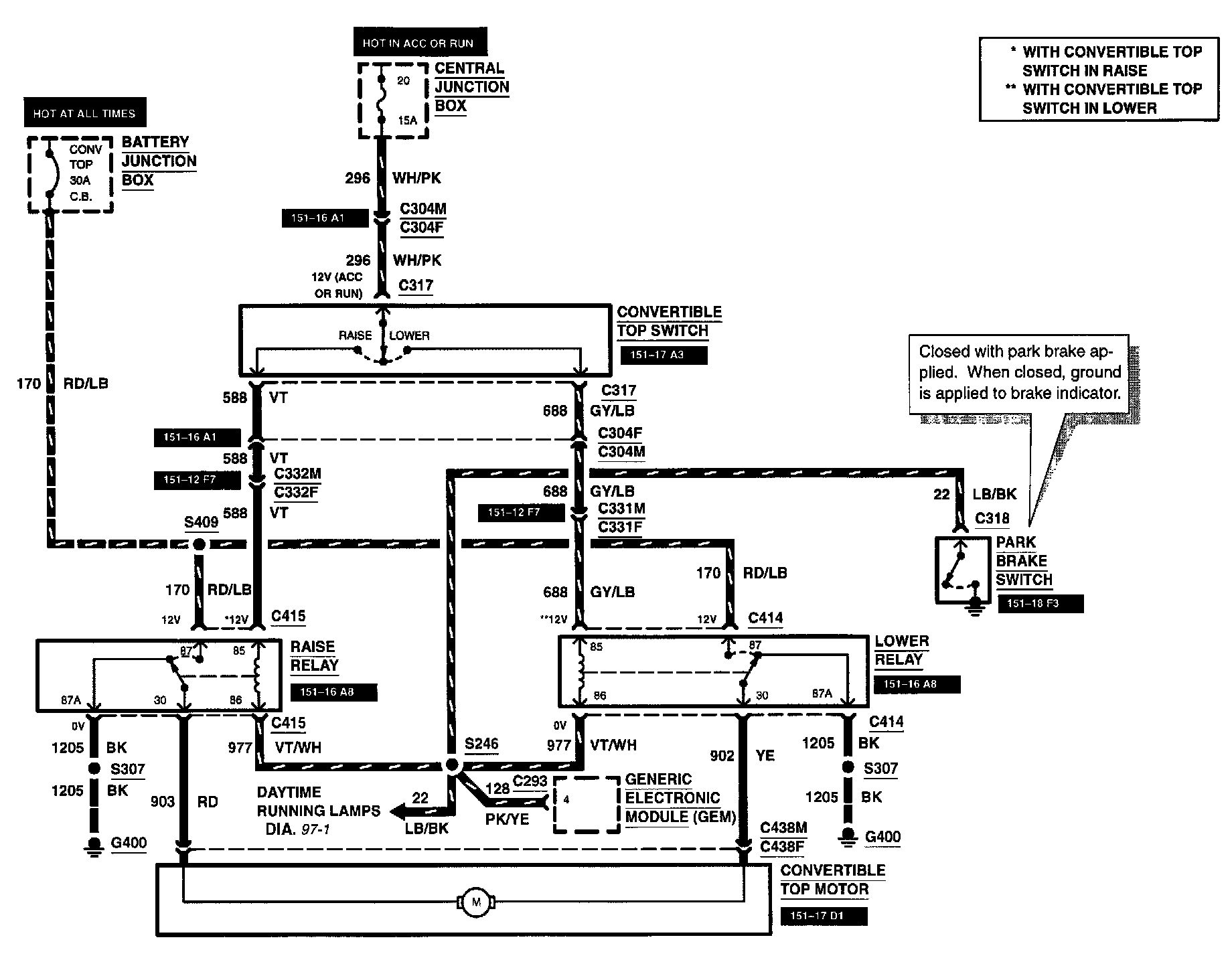

Diagram 102-1:
