Courtesy Lamp

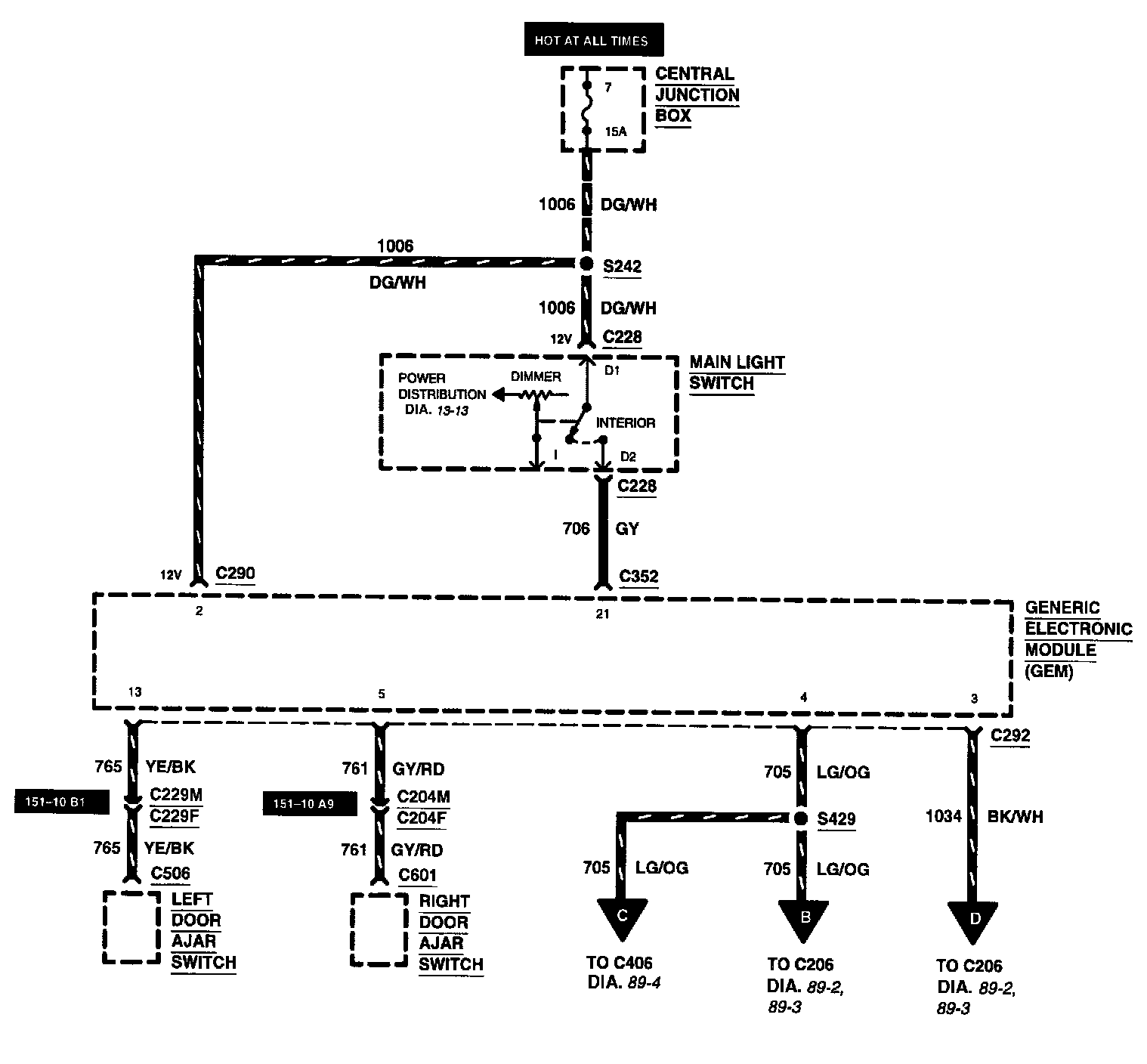

Diagram 89-1:

Central Junction Box
Fuse 7
Generic Electronic Module
Left Door Ajar Switch
Main Light Switch
Right Door Ajar Switch

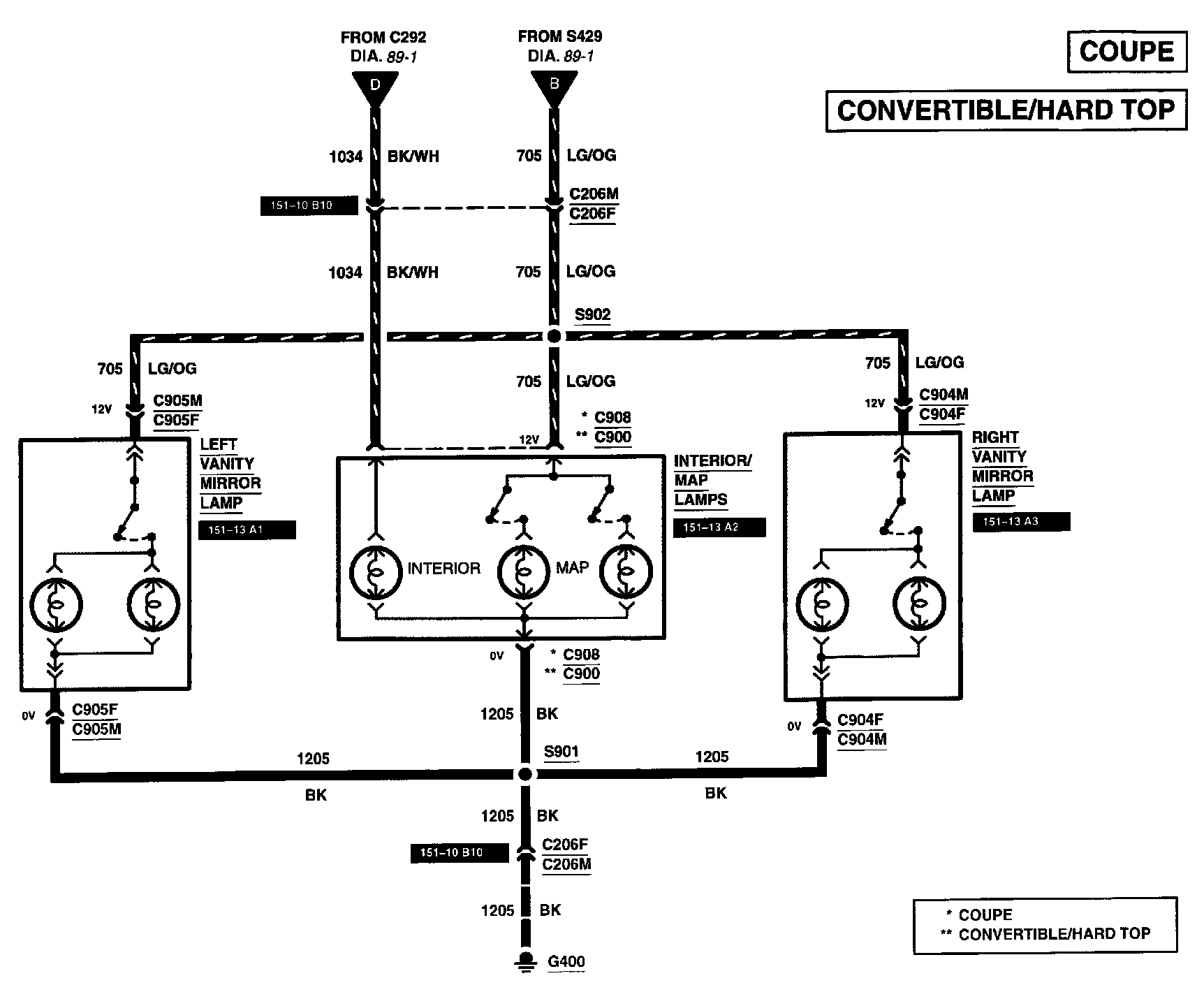

Diagram 89-2:

Interior
Interior/Map Lamps
Left Vanity Mirror Lamp
Map
Right Vanity Mirror Lamp

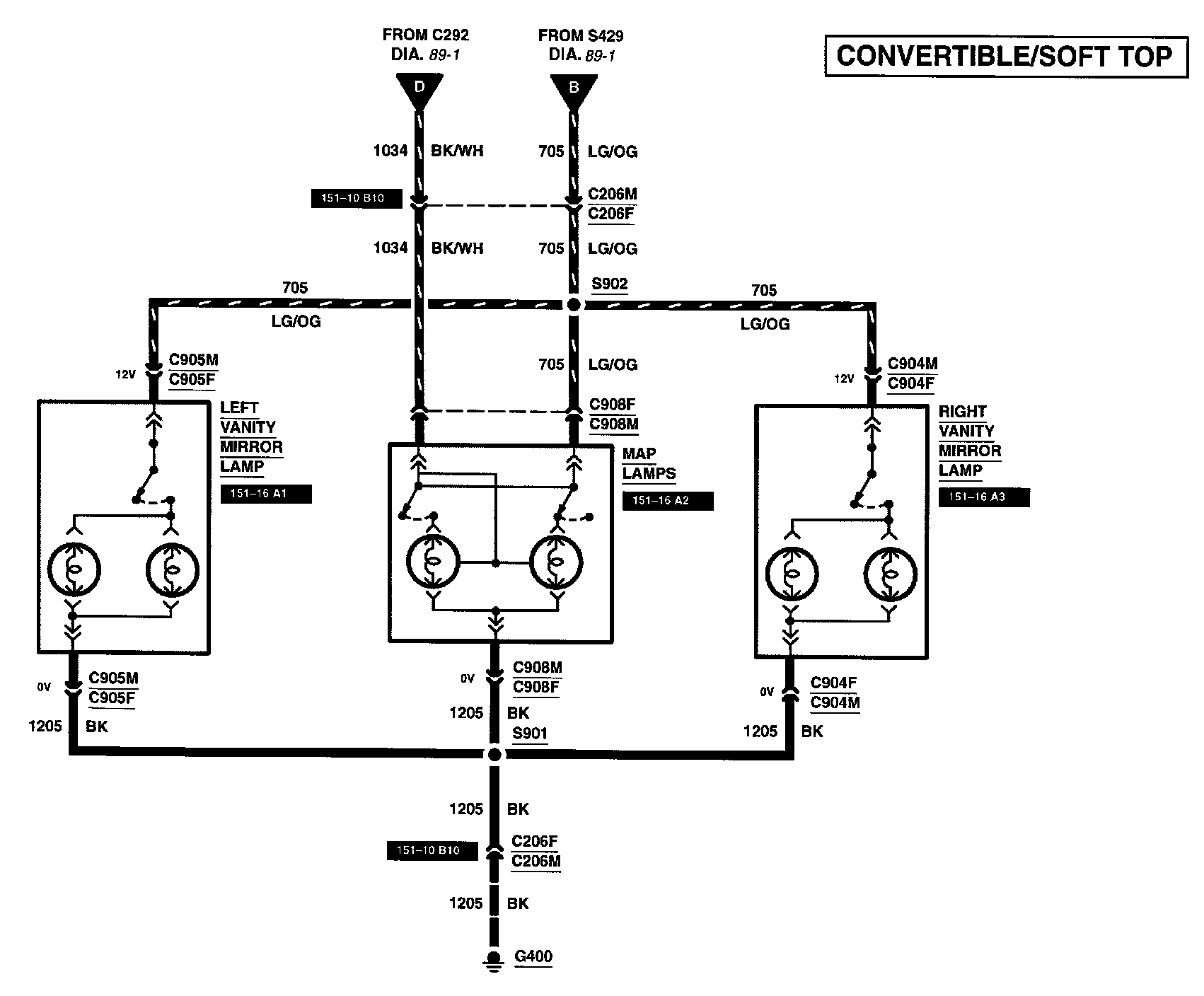

Diagram 89-3:

Left Vanity Mirror Lamp
Map Lamps
Right Vanity Mirror Lamp

Diagram 89-4:

Central Junction Box
Fuse 41
Generic Electronic Module
High Mounted Stop/Luggage Compartment Lamp Assembly
Luggage Compartment Lid Release Solenoid
